Triconex 9562-810

الوصف

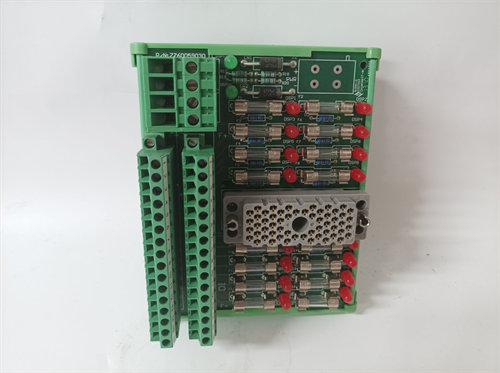

The Triconex 9562-810 is an external termination panel used in Triconex safety instrumented systems. It serves as a crucial interface, providing a convenient and reliable connection point between a Triconex Digital Input (DI) module and the field wiring from your sensors and other devices.

What It Is and What It Does

Termination panels are a standard part of a Triconex system. Instead of wiring dozens of individual field wires directly to the I/O module, you connect them to the termination panel, which then connects to the I/O module via a single cable.

The 9562-810 specifically manages digital input signals, and its design includes features that simplify installation and troubleshooting. It provides a secure, organized way to terminate field wiring and helps protect the I/O module.

Key Features and Compatibility

• Function: It is a Digital Input (DI) Termination Panel. It’s designed to handle signals from field devices like push buttons, limit switches, and other discrete sensors.
• Voltage: The panel is rated for 24 VDC digital input signals.
• Points: The panel typically provides 16 input points. Since a compatible Triconex digital input module is a 32-point module, you need two 9562-810 termination panels to fully terminate all 32 points on a single module.
• Module Compatibility: The 9562-810 is designed to work with Triconex Digital Input modules, such as the 3502E and 3505E modules.
