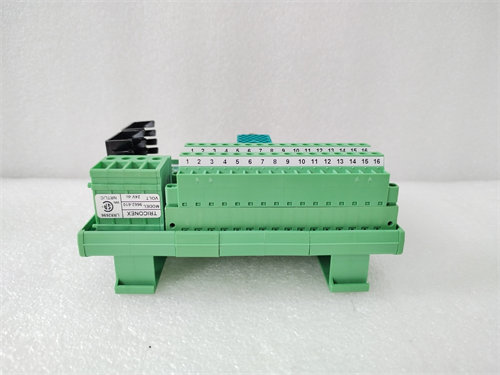

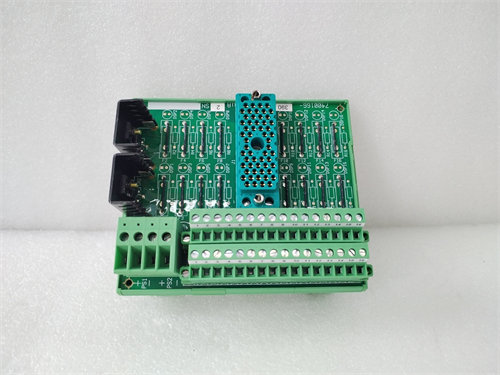

The Triconex 9766-510 is a specialized External Termination Panel (ETP) designed to simplify the wiring of a 48 VDC Digital Output module in a Triconex safety instrumented system (SIS). This panel provides a robust and organized interface, acting as a crucial link between the I/O module and the high-voltage, DC-powered field devices it controls.
Triconex 9766-510 Digital Output Termination Panel
Brief Product Description
- Product Type: Digital Output (DO) External Termination Panel (ETP)
- Operating Voltage: 48 VDC
- Key Feature: Screw-terminal design for simplified field wiring.
Why the 9766-510 Is Essential for Your System
In industrial environments, dealing with high-voltage DC wiring can be complex and potentially hazardous. The Triconex 9766-510 addresses this by providing a clean, organized, and safe interface. Instead of running individual high-voltage wires directly to the sensitive I/O module, you connect them to the accessible screw terminals on the ETP.
A single, pre-fabricated cable then connects the ETP to the Digital Output module, drastically reducing installation time and minimizing the risk of wiring errors. This separation of high-voltage field wiring from the control module’s sensitive electronics also enhances overall system safety and integrity.
The ETP’s design simplifies troubleshooting and maintenance. All field connections are neatly arranged, allowing technicians to quickly identify and address any wiring faults. Additionally, the panel supports the hot-swap capability of the Triconex system, allowing for the replacement of a faulty I/O module without disturbing the field wiring or shutting down the entire process. This is a critical feature for maintaining system uptime in continuous operations.
Technical Specifications
Application Areas
The Triconex 9766-510 is an integral part of any Triconex safety system where 48 VDC digital outputs are required.
- Emergency Shutdown Systems (ESD): A core application is activating safety-critical devices like large solenoid valves, motors, or relays that operate on 48 VDC.
- Process Industries: In chemical plants and refineries, it’s used to control alarms, indicator lights, and other equipment operating at 48 VDC.
- Power Generation: It organizes connections for controlling safety-related equipment, such as actuators or valve operators in power plants.
- Fire and Gas Systems (FGS): The panel connects the Triconex output modules to 48 VDC sirens, strobe lights, and shutdown relays.
