The Triconex 9861-610 is an External Termination Panel (ETP) designed to simplify the wiring of 24 VDC Digital Input modules in a Triconex safety system. This panel acts as a crucial interface, providing a robust and organized connection point between the system’s I/O modules and the field devices they monitor. By simplifying the connection of field wiring, the 9861-610 reduces installation time, minimizes human error, and facilitates maintenance in critical industrial environments.

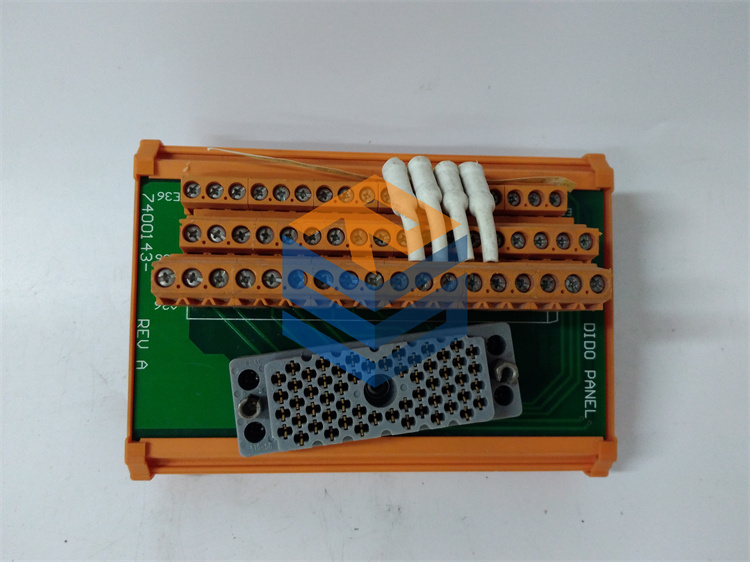

Triconex 9861-610 Digital Input Termination Panel

Brief Product Description

The Triconex 9861-610 is a specialized External Termination Panel (ETP) for use with Triconex Digital Input (DI) modules. It provides a secure and organized interface for connecting a nominal voltage of 24 VDC from field devices to the Triconex controller. This panel is a vital component for ensuring a reliable connection between your safety system and the sensors and switches it monitors.

• Product Type: Digital Input (DI) Termination Panel (ETP)
• Operating Voltage: 24 VDC
• Number of Points: Typically 16
• Key Feature: Screw-terminal design for simplified field wiring.

Why the 9861-610 Is Essential for Your System

In complex industrial facilities, the physical wiring from field devices like switches and sensors can be a logistical challenge. The Triconex 9861-610 solves this problem by acting as a robust and organized bridge between the Triconex system and the equipment it monitors.

The primary function of the 9861-610 is to simplify wiring and maintenance. Instead of running individual field wires directly to the sensitive I/O module, you connect them to the larger, more accessible screw terminals on the ETP. The panel then connects to the Digital Input module via a pre-fabricated, high-quality cable, which drastically reduces wiring time and the potential for human error.

This design also simplifies troubleshooting and maintenance. All field connections are neatly organized on a single panel, making it easy for technicians to quickly identify and address any wiring faults. Additionally, the ETP supports the hot-swap capability of the Triconex system, allowing a faulty I/O module to be replaced without having to shut down operations or disconnect the field wiring—a critical feature for maintaining system uptime.

Technical Specifications

Application Areas

The Triconex 9861-610 is used wherever a Triconex safety system is implemented. Its primary role is to provide a clean and reliable interface for a variety of digital input signals that monitor field equipment.

• Emergency Shutdown Systems (ESD): A core application is providing a reliable, organized point of connection for all the field sensors that must be monitored during an emergency shutdown, such as pressure or level switches.
• Process Industries: In chemical plants, refineries, and pipelines, it’s used to connect signals from switches and emergency stop buttons.
• Power Generation: It organizes connections for boiler status, turbine trip signals, and generator alarms.
• Fire and Gas Systems (FGS): In FGS applications, the panel connects the Triconex input modules to fire and gas detectors.
