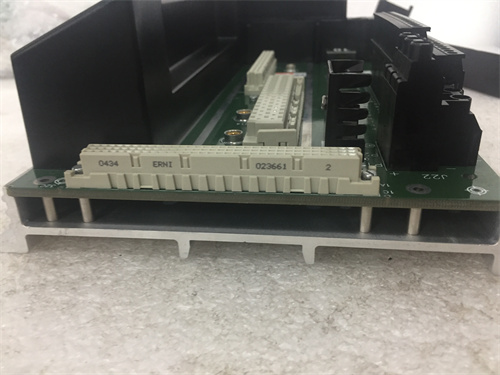

The TRICONEX DO2401 (7400209-030) is a digital output module, and more specifically a baseplate, designed for use in Triconex safety instrumented systems (SIS). Its main job is to act as a reliable interface between the Triconex safety controller and the various digital field devices it controls.
Function and Purpose
In a safety system, the controller (like the TRICONEX MP3101) makes decisions based on input from sensors. The digital output module is what takes those decisions and turns them into actions. For the DO2401, these actions are “on” or “off” signals sent to external devices such as:
- Valves: To open or close them, for example, to shut off a flow of hazardous material in an emergency.
- Motors: To start or stop them.
- Alarms and Indicators: To activate a siren, a beacon, or a warning light.
As a core component of a safety system, the DO2401 is engineered for high reliability and fault tolerance to ensure that these critical commands are executed without fail.
Key Specifications
The DO2401 module is known for its high-density design and robust build, making it suitable for demanding industrial environments.
- Channels: It features 24 digital output channels per module.
- Voltage: The module has a voltage rating of 24VDC.
- Current: Each channel can switch up to 2A of current.
- Safety Rating: The module is compliant with Safety Integrity Level 3 (SIL 3) requirements, indicating that it is designed for use in the highest-risk applications.
- Environmental Tolerance: It is built to operate in a wide temperature range, typically from to , and can withstand harsh environments.
Applications
The DO2401’s design for safety and reliability makes it a vital part of control systems in high-hazard industries, including:
- Oil and Gas: In systems for emergency shutdown, fire and gas detection, and wellhead control.
- Chemical and Petrochemical Plants: For controlling the safety of critical processes and handling dangerous materials.
- Power Generation: Ensuring the safe operation of turbines and other essential plant equipment.
This module is a great example of how a seemingly simple component like a digital output module is engineered with a high degree of complexity and redundancy to meet the strict demands of industrial safety.
