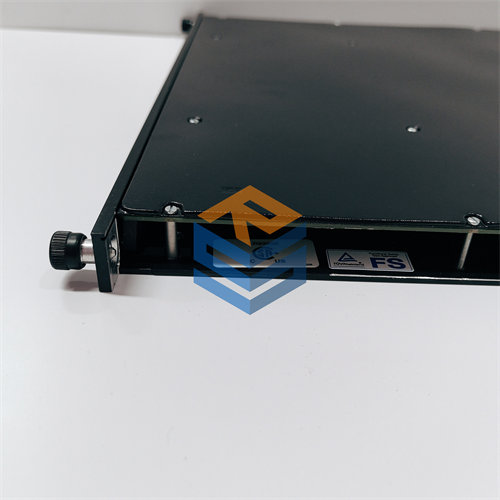

TRICONEX+3503EC1

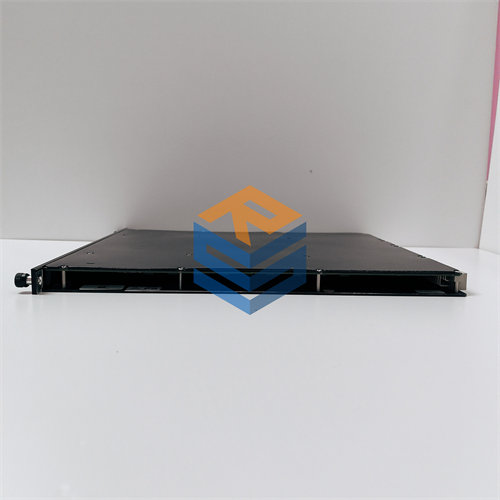

⁦TRICONEX+3503EC1⁩ - الصورة ⁦2⁩

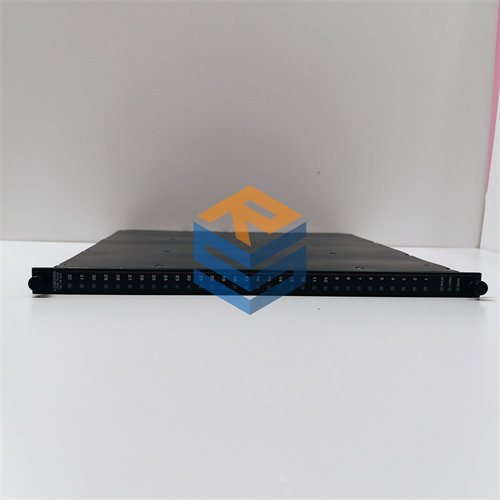

⁦TRICONEX+3503EC1⁩ - الصورة ⁦3⁩

TRICONEX+3503EC1

TRICONEX+3503EC1 – PLC Module

Product Description:

The TRICONEX+3503EC1 is a high-performance Programmable Logic Controller (PLC) module from Triconex, a trusted name in safety and process control systems. This module is designed for mission-critical applications requiring high availability, reliability, and safety. The 3503EC1 is part of the Triconex TMR (Triple Modular Redundant) system, which ensures maximum fault tolerance and operational continuity in demanding industries like oil & gas, chemical processing, power generation, and nuclear applications.

The 3503EC1 module is specifically engineered for safety-instrumented systems (SIS) that need continuous, secure, and real-time control. It features redundancy, high-speed diagnostics, and easy integration with other Triconex systems. The TMR architecture ensures that the system can handle multiple simultaneous failures without compromising safety or performance.

Designed for high-reliability environments, the 3503EC1 is built to meet SIL 3 (Safety Integrity Level 3) standards and is certified for use in high-hazard industries where safety and compliance are paramount.

احصل على عرض أسعار
التصنيف:

الوصف

TRICONEX+3503EC1 PLC Module

Product Name:

TRICONEX+3503EC1 – PLC Module

Product Description:

The TRICONEX+3503EC1 is a high-performance Programmable Logic Controller (PLC) module from Triconex, a trusted name in safety and process control systems. This module is designed for mission-critical applications requiring high availability, reliability, and safety. The 3503EC1 is part of the Triconex TMR (Triple Modular Redundant) system, which ensures maximum fault tolerance and operational continuity in demanding industries like oil & gas, chemical processing, power generation, and nuclear applications.

The 3503EC1 module is specifically engineered for safety-instrumented systems (SIS) that need continuous, secure, and real-time control. It features redundancy, high-speed diagnostics, and easy integration with other Triconex systems. The TMR architecture ensures that the system can handle multiple simultaneous failures without compromising safety or performance.

Designed for high-reliability environments, the 3503EC1 is built to meet SIL 3 (Safety Integrity Level 3) standards and is certified for use in high-hazard industries where safety and compliance are paramount.

Key Features:

  1. TMR (Triple Modular Redundant) Architecture:

    • The 3503EC1 operates with a TMR architecture to provide fault tolerance, ensuring continuous operation even in the event of hardware failures.

  2. SIL 3 Certification:

    • Fully compliant with SIL 3 (Safety Integrity Level 3), ensuring the module meets the highest safety standards for safety-critical applications.

  3. High Availability:

    • Built for maximum uptime, the 3503EC1 is designed to offer continuous operation, reducing the likelihood of system failure in critical processes.

  4. Real-Time Processing:

    • Supports real-time control of safety and process systems, making it ideal for applications that require immediate, precise responses to changing conditions.

  5. Integrated Diagnostics:

    • Provides advanced diagnostic capabilities for monitoring system performance, identifying faults, and enabling predictive maintenance.

  6. Scalability:

    • Modular design allows the addition of I/O and communication modules, enabling the system to scale with growing application needs.

  7. Redundant Power Supply:

    • Designed to operate with redundant power supplies, ensuring high reliability and performance in continuous operation environments.

  8. Safety and Compliance:

    • Meets rigorous safety standards like IEC 61508 and IEC 61511, making it suitable for safety instrumented systems (SIS) in hazardous environments.

  9. Seamless Integration:

    • Compatible with other Triconex systems and supports common industry communication protocols like Modbus, Profibus, and Ethernet/IP.

Product Parameters & Specifications:

General Information:

  • Model:

    • TRICONEX+3503EC1

  • Brand:

    • Triconex (Schneider Electric)

  • Category:

    • Programmable Logic Controller (PLC)

  • Control Platform:

    • Triconex TMR System (Triple Modular Redundant)

  • Application:

    • Safety Instrumented Systems (SIS), Process Control, Mission-Critical Operations

  • Part Number:

    • 3503EC1
Power Supply:

  • Nominal Voltage:

    • 24V DC (standard for industrial control systems)

  • Input Voltage Range:

    • 18V to 30V DC

  • Power Consumption:

    • Typically 20W to 40W, depending on connected I/O and system configuration.
Operating Conditions:

  • Operating Temperature Range:

    • -40°C to +70°C (-40°F to 158°F), suitable for use in extreme industrial environments.

  • Storage Temperature Range:

    • -40°C to +85°C (-40°F to 185°F), safe for storage under harsh conditions.

  • Relative Humidity:

    • 5% to 95% (non-condensing), ensuring stable operation in varied environmental conditions.

  • Vibration Resistance:

    • Meets industrial vibration standards for resilience in mechanical environments.

  • Protection Rating:

    • IP20 (for mounted installations), protecting against dust and accidental contact with internal components.
I/O Specifications:

  • Digital I/O:

    • Includes digital inputs (for switches, sensors, and relays) and digital outputs for controlling actuators, solenoids, and other devices.

  • Analog I/O:

    • Supports analog inputs (e.g., for temperature, pressure, and flow sensors) and analog outputs for controlling variable devices.

  • Communication Ports:

    • Supports industry-standard protocols like Modbus, Profibus, Ethernet/IP, and HART for seamless integration with external devices and systems.

  • Redundant I/O:

    • I/O modules can be configured in redundant pairs to increase system reliability in critical applications.
Performance & Control Features:

  • Processing Speed:

    • Designed for real-time operation with fast response times to support critical applications.

  • Control Algorithms:

    • Supports advanced control algorithms for SIS applications, including PID and sequence control.

  • Fault Tolerance:

    • TMR Architecture ensures system tolerance to multiple simultaneous faults, offering high availability.

  • Diagnostics:

    • Provides detailed diagnostic tools for early fault detection and system status monitoring, helping reduce downtime.
Compliance & Certifications:

  • Safety Certifications:

    • SIL 3 (Safety Integrity Level 3) certified for use in safety-critical applications.
    • Complies with IEC 61508 and IEC 61511 standards for functional safety in industrial processes.

  • Electromagnetic Compatibility (EMC):

    • Meets EMC standards to prevent electromagnetic interference and ensure stable performance in electrically noisy environments.

  • Environmental Standards:

    • Compliant with global environmental and energy-efficient standards to minimize environmental impact.

Applications:

  1. Oil & Gas:

    • Safety-critical control for exploration, drilling, and refining operations.

  2. Chemical Processing:

    • Control of hazardous chemical processes where failure prevention is paramount.

  3. Power Generation:

    • Safe and reliable control in power plants, including nuclear and conventional energy production.

  4. Nuclear Industry:

    • Safety instrumented systems for controlling nuclear reactors and associated systems.

  5. Industrial Process Control:

    • Applications requiring high availability and real-time performance in automated manufacturing or processing systems.

Summary of Key Features:

  • TMR Architecture for fault tolerance and continuous operation.
  • SIL 3 certified for use in safety-critical applications.
  • Real-time processing for fast and precise control of critical processes.
  • Integrated diagnostics for monitoring system health and minimizing downtime.
  • Redundant power supplies and I/O configurations for high availability.
  • Compliant with IEC 61508 and IEC 61511 safety standards.

Let me know if you need more detailed technical information or specific examples of applications! MP30 PLC
