The TRICONEX 4329 is a Network Communication Module (NCM) for the Triconex Safety Instrumented System (SIS). It allows the Tricon control system to communicate with other Tricons and external hosts over Ethernet (802.3) networks.

This module is crucial for integrating Triconex safety systems into broader plant control networks, enabling data exchange for monitoring, diagnostics, and sequence of events (SOE) logging.

Top 10 SEO-Optimized Headings:

1. TRICONEX 4329: Network Communication Module for SIS Ethernet Connectivity.
2. Connect Your Safety System: The TRICONEX 4329 for Seamless Integration.
3. TRICONEX 4329: Robust Ethernet Communication in Critical Industrial Environments.
4. Data Exchange & Diagnostics: Leveraging the TRICONEX 4329 NCM.
5. Why Choose TRICONEX 4329: Reliable Network Access for Triconex Systems.
6. TRICONEX 4329: Essential for Peer-to-Peer & Host Communication in Safety.
7. 10 Mbps Ethernet: Key Features of the TRICONEX 4329 NCM.
8. TRICONEX 4329: Supporting SOE, OPC, and User-Written Applications.
9. Optimize Your Triconex Network: The Versatility of the TRICONEX 4329 NCM.
10. Industrial Communication: Ensuring Integrity with the TRICONEX 4329 Module.

Brief Product Description (for Detail Pages and Search Results):

The TRICONEX 4329 is a Network Communication Module (NCM) designed for Triconex Safety Instrumented Systems (SIS). It provides Ethernet (IEEE 802.3) connectivity, allowing Tricon controllers to communicate with other Tricons for peer-to-peer applications and with external host systems (e.g., DCS, SCADA, HMIs) for monitoring, data exchange, and diagnostic purposes. Supporting Triconex proprietary protocols (like TSAA) and common applications such as OPC and SOE (Sequence of Events), the 4329 NCM ensures secure and reliable data flow for critical industrial processes.

• Product Type: Network Communication Module (NCM)
• Model Number: 4329
• Primary Function: Enables Ethernet communication for Triconex SIS.
• Ports: Typically two Ethernet (802.3) ports (BNC connectors for thin Ethernet), and potentially external transceiver ports (15-pin D-connectors) and a serial port (RS-232 compatible).
• Communication Speed: 10 Megabits per second (Mbps).
• Protocols: Supports Triconex proprietary protocols (e.g., TSAA), and applications like TriStation, SOE, OPC Server, DDE Server.
• Compatibility: Triconex Tricon series controllers.
• Applications: Peer-to-peer communication between Tricons, data exchange with external hosts (DCS, SCADA, HMIs), time synchronization, sequence of events (SOE) logging.

Detailed Product Description:

In today’s integrated industrial landscape, even safety systems, while operating autonomously for critical functions, need to share information with the broader control architecture. The TRICONEX 4329 Network Communication Module (NCM) is the dedicated gateway that provides this essential connectivity for Triconex Safety Instrumented Systems (SIS). It’s not involved in direct safety logic execution but enables the vital flow of diagnostic data, alarms, and process values from the highly secure Triconex platform to operators and other control systems.

I’ve worked on numerous projects where isolating the safety system completely, while technically sound for safety, creates operational blind spots. Operators need insights into the health of the SIS, and historical data is crucial for regulatory compliance and incident analysis. The TRICONEX 4329 bridges this gap. It allows engineers to securely extract critical information from the Tricon, ensuring that safety is maintained while operational visibility is enhanced. This balance is key to optimizing both safety and efficiency in complex industrial plants.

Bridging the Safety and Control Worlds:

The TRICONEX 4329 Network Communication Module (NCM) is designed to establish robust and reliable communication pathways for the Triconex safety controller:

• Ethernet Connectivity: It provides standard Ethernet (IEEE 802.3) ports, typically with BNC connectors for Thin Ethernet (RG58 coaxial cable), allowing for integration into common industrial network infrastructures. While 10 Mbps is a legacy speed by modern IT standards, it’s highly reliable and sufficient for the types of data transferred in safety systems.
• Dual Port Functionality: The module typically offers two Ethernet ports, each serving distinct purposes:
  • NET 1: Often used for Peer-to-Peer communication and Time Synchronization protocols specifically between other Triconex systems. This ensures consistent time-stamping across multiple Tricons in a safety network.
  • NET 2: Dedicated to open networking with external host systems. This allows for communication with applications like TriStation (Triconex configuration software), OPC Servers (for data transfer to DCS/SCADA/HMIs), SOE Servers (for sequence of events logging), and user-written applications utilizing the TSAA (Triconex System Access Application) protocol.
• Data Exchange and Monitoring: The NCM facilitates the transfer of crucial data from the Triconex system, including:
  • System health and diagnostic information
  • Input/Output module status
  • Alarm and event logs
  • Real-time process variable data (from input modules)
  • Clock synchronization information.
• Proprietary and Standard Protocols: The 4329 supports a blend of Triconex proprietary protocols (which ensure secure and reliable communication within the Triconex ecosystem) and enables integration with standard industry protocols (like OPC) via specific communication software on the host side.

Reliability and Design Considerations:

While the 4329 NCM itself is not a TMR module (meaning it doesn’t have the same internal triplication as the main processors or TMR I/O modules), it is designed to operate within a TMR system and uphold its integrity:

• Isolation: The ports offer electrical isolation (e.g., 500 VDC) to protect the module and the Triconex chassis from electrical disturbances on the network.

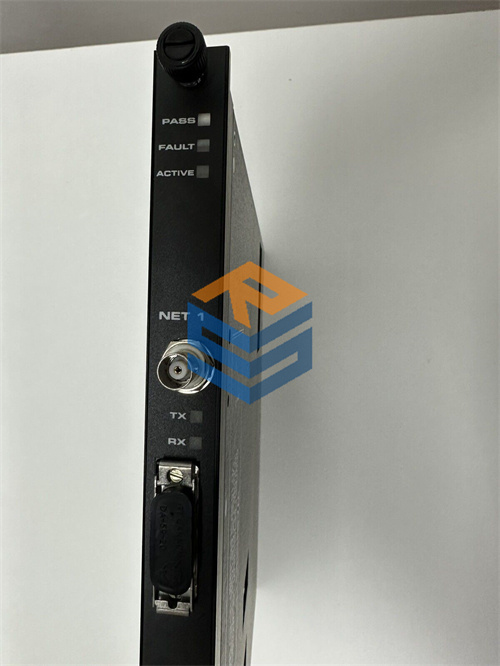

• Status Indicators: Includes LEDs (PASS, FAULT, ACTIVE, TX/RX per port) to provide visual feedback on the module’s operational status and communication activity, aiding in troubleshooting.
• Robust Construction: Designed to meet the stringent environmental requirements of industrial applications, ensuring reliable operation in harsh conditions.
• Hot-Swappable (for some versions like 4329G): Some later versions or variants (like the 4329G) may offer hot-swappable capabilities, meaning they can be replaced without shutting down the entire system. Note: While two NCMs can reside in one logical slot, they typically function independently rather than as hot-spare modules, unlike TMR components.

Obsolescence Note:

It’s important to note that the TRICONEX 4329 was discontinued by Triconex/Schneider Electric in 2017. While still available from third-party suppliers (new or reconditioned), users should consider long-term support, spare parts availability, and potential upgrade paths when planning new installations or significant expansions.
