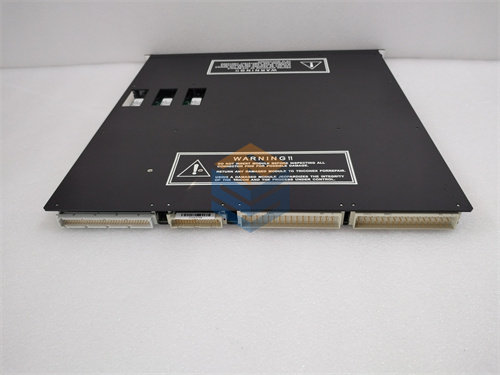

TRICONEX+DI 3506X

الوصف

The TRICONEX DI 3506X is a Triple Modular Redundant (TMR) Digital Input (DI) Module for the Triconex Safety Instrumented System (SIS), specifically designed for the Tricon CX platform.

This module is a critical component for highly reliable and fault-tolerant acquisition of discrete (on/off) signals from field devices in demanding industrial safety applications. Its TMR architecture ensures that even in the event of internal component failures, the module continues to provide accurate and reliable input data to the Tricon CX main processors.

Top 10 SEO-Optimized Headings:

1. TRICONEX DI 3506X: TMR Digital Input Module for Tricon CX Safety Systems.
2. Precision Sensing: Unlock Reliability with the TRICONEX 3506X in SIS.
3. TRICONEX 3506X: Fault-Tolerant Digital Inputs for Enhanced Process Safety.
4. High-Density Inputs: Leveraging the TRICONEX DI 3506X for Critical Monitoring.
5. Why Choose TRICONEX 3506X: Maximizing Uptime in Harsh Industrial Environments.
6. TRICONEX DI 3506X: The Core of Emergency Shutdown & Fire & Gas Input.
7. Supervised & Self-Diagnosing: Key Features of the TRICONEX 3506X DI Module.
8. TRICONEX 3506X: Essential for Nuclear Power, Oil & Gas, and Chemical Plant Safety.
9. Optimize Your Safety System: The Versatility of the TRICONEX DI 3506X.
10. Industrial Control: Ensuring Integrity with the TRICONEX 3506X Digital Input Module.

Brief Product Description (for Detail Pages and Search Results):

The TRICONEX DI 3506X is a 32-point, 24 VDC, Triple Modular Redundant (TMR) Supervised Digital Input (DI) module specifically designed for the Tricon CX Safety Instrumented System. It provides highly accurate and fault-tolerant acquisition of discrete signals from field devices such as limit switches, pushbuttons, and proximity sensors. With its TMR architecture, comprehensive diagnostics (including optional supervision and end-of-line resistor detection), and hot-swappable capability, the 3506X ensures the highest integrity and availability of critical safety inputs, making it ideal for emergency shutdown (ESD), fire & gas (F&G) detection, and other high-integrity process control applications.

• Product Type: Digital Input (DI) Module
• Channels: 32 points
• Voltage: 24 VDC (compatible with specified input ranges)
• Key Feature: Triple Modular Redundancy (TMR), Supervised (optional), Opto-Isolated.
• Compatibility: Triconex Tricon CX series controllers. Requires an external termination panel (ETP) or field termination assembly (FTA).
• Applications: Emergency Shutdown (ESD), Fire & Gas (F&G) detection, Process Interlocks, Critical Process Monitoring in industries like Oil & Gas, Petrochemical, Chemical, and Nuclear Power.

Detailed Product Description:

In complex industrial environments, where the safety of personnel and assets hinges on precise and reliable information, the role of input modules is paramount. The TRICONEX DI 3506X Digital Input Module is engineered to meet this exacting standard within a Triconex Safety Instrumented System (SIS). It is not merely a sensor interface; it’s a highly sophisticated, fault-tolerant component designed to acquire discrete (on/off) signals from critical field devices with unwavering accuracy, even if internal components experience issues. Think of it as the highly vigilant and redundant “ears” of your safety system, continuously and accurately sensing critical process states.

From my experience in deploying and maintaining safety systems, the integrity of digital inputs is absolutely crucial. A faulty limit switch signal, for instance, could lead to a safety interlock failing to activate, or an incorrect pushbutton status could trigger an unintended operation. The TRICONEX DI 3506X directly addresses these concerns. Its TMR architecture, coupled with advanced diagnostics and optional supervision, provides an unparalleled level of confidence in the incoming data. This is vital for preventing hazardous situations and ensuring that safety functions are initiated based on truly reliable information.

The Power of Triple Modular Redundancy (TMR) and Supervision:

The exceptional reliability of the TRICONEX DI 3506X stems from its Triple Modular Redundancy (TMR) architecture, enhanced by optional supervision:

• Three Independent Input Channels: Each digital input point is measured by three independent, isolated channels within the module. Each channel has its own dedicated circuitry.
• Hardware Voting: The data from these three channels is then subjected to a robust hardware voting mechanism. This voting process identifies and isolates any discrepancies, ensuring that the main processors receive a single, highly reliable input value.
• Fault Tolerance: This design allows the module to continue providing accurate data even if one of its internal channels fails or provides an erroneous reading. The system will operate reliably in the presence of a single fault, maintaining the integrity of the safety function.
• Supervision Capability: The “X” in 3506X often denotes advanced features. The 3506X can be user-programmed for supervised digital input. This means it can detect not only the on/off state of a field device but also faults in the field wiring, such as open circuits (broken wires) or short circuits. This is typically achieved by using an End-Of-Line (EOL) resistor network at the field device, allowing the module to constantly monitor the integrity of the entire input circuit.

Advanced Diagnostics and Protection:

Beyond TMR and supervision, the TRICONEX DI 3506X incorporates features that enhance its integrity and simplify maintenance:

• Continuous Self-Diagnostics: The module constantly performs extensive self-diagnostics on every channel and critical component. Any diagnostic failure on any channel activates the “Module Failure Indicator” (typically an LED), alerting operators to a potential issue within that channel (not necessarily a full module failure).
• Hot-Swappable: This crucial feature allows the module to be inserted or removed from the chassis while the Tricon CX system is online and operating, without interrupting the process. This significantly reduces downtime for maintenance or replacement.
• Optically Isolated Inputs: Provides robust electrical isolation between the field wiring and the module’s internal circuitry, protecting the module from voltage spikes, noise, and ground loops common in industrial environments.
• Mechanical Keying: Prevents improper installation by ensuring the module can only be inserted into the correct slot in the chassis, reducing human error.

Compatibility and Integration:

The TRICONEX DI 3506X is specifically designed for seamless integration within the Tricon CX safety system:

• Tricon CX Chassis Integration: It plugs directly into a Tricon CX I/O expansion chassis.
• External Termination Panel (ETP) / Field Termination Assembly (FTA): It requires a separate ETP/FTA for connecting the field wiring from sensors to the module. These panels also typically provide fuse protection for each input channel and the necessary connections for the EOL resistor networks if supervision is used.

Technical Specifications (Typical, actual values may vary slightly by revision):

Applications:

The TRICONEX DI 3506X is an indispensable component in the most demanding and safety-critical industrial applications across various sectors:

• Oil & Gas (Upstream, Midstream, Downstream):
  • Emergency Shutdown Systems (ESD): Receiving signals from limit switches (e.g., valve position, level switches), pressure switches, and manual pushbuttons to initiate safe shutdown sequences.
  • Fire & Gas (F&G) Detection Systems: Acquiring signals from flame detectors, smoke detectors, and hazardous gas presence switches.
  • Wellhead Control: Monitoring the status of various valves and interlocks.
• Petrochemical and Chemical Plants:
  • Ensuring safe operation of reactors, furnaces, and distillation columns by monitoring critical interlock points.
  • Receiving signals from emergency stop buttons and safety interlocks on machinery.
• Power Generation (Fossil Fuel and Nuclear):
  • Burner Management Systems (BMS): Monitoring flame presence, fuel valve positions, and fan statuses for safe boiler operation.
  • Turbine trip inputs and generator protection signals.
• Water and Wastewater Treatment:
  • Monitoring pump statuses, valve positions, and tank high/low levels for safe and efficient operation.
  • Safety interlocks for chemical dosing systems.
• Pharmaceutical Manufacturing:
  • Ensuring safe operation of production lines, cleanroom access controls, and sterilization equipment through precise monitoring of discrete states.

Related Products:

The TRICONEX DI 3506X operates as part of a larger Tricon CX safety system. Here are some related components and systems:

• Triconex Tricon CX Controllers: The main CPUs (e.g., MP or CX processors) that receive and process the digital input data from the 3506X module.
• Triconex Digital Output Modules (e.g., 3626X): The counterparts to DI modules, used to send discrete commands to field devices.
• Triconex Analog Input/Output Modules (e.g., 3722X, 3723X, 3809X): Modules handling continuous signal measurements within the same Tricon CX system.
• Triconex I/O Expansion Chassis (e.g., Tricon CX I/O Rack): The physical chassis that houses the 3506X and other I/O modules.
• Triconex External Termination Panels (ETP) / Field Termination Assemblies (FTA): Essential for wiring the 3506X to field devices. The specific ETP for the 3506X (e.g., 9563X-910, 9566X-810) is designed to accommodate the necessary wiring, including the EOL resistor networks for supervision.
• Schneider Electric EcoStruxure Triconex Safety Systems: The comprehensive suite of hardware and software that the 3506X module is a part of.
• Process Sensors (e.g., Limit Switches, Proximity Sensors, Pressure Switches, Temperature Switches, Emergency Stop Pushbuttons): These are the field devices that generate the discrete signals that the 3506X module receives.
• Distributed Control Systems (DCS) / SCADA Systems (e.g., Emerson DeltaV, Honeywell Experion PKS, ABB Ability System 800xA): While the Triconex handles the critical safety layer, these systems often monitor the status of the Triconex SIS and receive safety-related information (e.g., input status for display) through communication modules.
