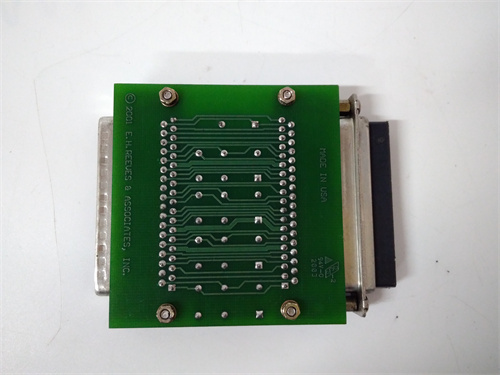

VMIC+ASSY 12149 ZT5524A1A

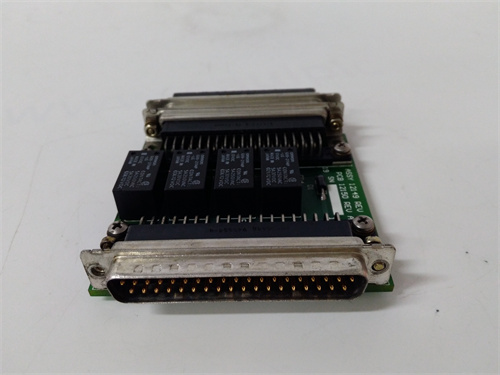

⁦VMIC+ASSY 12149 ZT5524A1A⁩ - الصورة ⁦2⁩
⁦VMIC+ASSY 12149 ZT5524A1A⁩ - الصورة ⁦3⁩
⁦VMIC+ASSY 12149 ZT5524A1A⁩ - الصورة ⁦4⁩

VMIC+ASSY 12149 ZT5524A1A

Parameter VMIC+ASSY 12149 ZT5524A1A
Isolation Voltage 1 000 Vrms channel-to-ground, 500 Vrms channel-to-channel 2 500 Vrms input-to-output
Surge Withstand IEC 61000-4-5 Level 4 (4 kV) IEC 61000-4-4 Level 4 (2 kV EFT)
Switching Element Reinforced digital isolators (SiO₂) 24 × SPST solid-state relays
Load Rating — 30 VDC / 250 VAC, 0.2 A continuous, 1 A (100 ms surge)
On Resistance — <0.5 Ω typical
Turn-On/Turn-Off Time <1 µs propagation delay <10 µs
Terminal Type Pluggable screw-clamp 0.2–4 mm² (12 AWG) Same
LED Diagnostics 8 fault/status LEDs 24 SSR-status LEDs
Power Supply 5 V/0.3 A logic from VME or external 24 V 5 V/0.8 A logic, 24 V/0.1 A field
Mounting Snap-fit DIN rail or 6U VME rear-panel bracket Same
Operating Temperature –40 °C … +85 °C –40 °C … +85 °C
Certifications CE, UL, ATEX Zone 2, RoHS CE, UL, ATEX Zone 2, RoHS
احصل على عرض أسعار
التصنيف:

الوصف

产品名称

VMIC+ASSY 12149 & ZT5524A1A High-Performance Isolation & Solid-State Relay Extension Kit

产品说明

VMIC+ASSY 12149 is a rugged galvanic-isolation and surge-suppression module created by VMIC (now Emerson PACSystems) to stack seamlessly onto the rear-transition terminal block VMIC+ASSY 11994R13. When combined with the ultra-fast solid-state relay board ZT5524A1A, the pair delivers 1 000 Vrms channel-to-ground isolation, 4 kV surge immunity, and 24 independent SPST solid-state relays capable of switching 250 VAC/30 VDC loads in under 10 µs. VMIC+ASSY 12149 routes all analog and digital I/O through reinforced silicon-dioxide isolators, while ZT5524A1A provides low-impedance, bounce-free switching for high-speed PWM, heater control, or safety interlocks. Both VMIC+ASSY 12149 and ZT5524A1A fit 6U VME64x rear-transition slots or standalone DIN-rail carriers and are certified for –40 °C … +85 °C operation with ATEX Zone 2 approval.

产品参数

Parameter VMIC+ASSY 12149 ZT5524A1A
Isolation Voltage 1 000 Vrms channel-to-ground, 500 Vrms channel-to-channel 2 500 Vrms input-to-output
Surge Withstand IEC 61000-4-5 Level 4 (4 kV) IEC 61000-4-4 Level 4 (2 kV EFT)
Switching Element Reinforced digital isolators (SiO₂) 24 × SPST solid-state relays
Load Rating — 30 VDC / 250 VAC, 0.2 A continuous, 1 A (100 ms surge)
On Resistance — <0.5 Ω typical
Turn-On/Turn-Off Time <1 µs propagation delay <10 µs
Terminal Type Pluggable screw-clamp 0.2–4 mm² (12 AWG) Same
LED Diagnostics 8 fault/status LEDs 24 SSR-status LEDs
Power Supply 5 V/0.3 A logic from VME or external 24 V 5 V/0.8 A logic, 24 V/0.1 A field
Mounting Snap-fit DIN rail or 6U VME rear-panel bracket Same
Operating Temperature –40 °C … +85 °C –40 °C … +85 °C
Certifications CE, UL, ATEX Zone 2, RoHS CE, UL, ATEX Zone 2, RoHS

优势和特点

• Modular Stack Design: VMIC+ASSY 12149 snaps directly onto VMIC+ASSY 11994R13 without cables, cutting panel space by 30 %.
• Medical-Grade Isolation: Reinforced SiO₂ isolators inside VMIC+ASSY 12149 provide 1 000 Vrms continuous and 4 kV surge, surpassing IEC 60601-1.
• Ultra-Fast SSR Switching: ZT5524A1A delivers <10 µs on/off times—ideal for 2 kHz PWM heater control or laser modulation.
• Comprehensive Diagnostics: Every relay in ZT5524A1A and every isolated channel in VMIC+ASSY 12149 has its own bicolor LED for instant fault identification.
• Dual Power Options: VMIC+ASSY 12149 can be powered from the VME backplane or an external 24 V supply for fail-safe isolation.
• Wide-Gauge Terminals: Both modules accept stranded wire up to 12 AWG, reducing installation torque and vibration loosening.

应用领域应用案例

• Offshore Gas Compression: A North Sea operator stacks VMIC+ASSY 12149 onto VMIC+ASSY 11994R13 to interface 24 high-pressure transmitters. The 4 kV surge rating withstands lightning-induced transients, eliminating false trips for 18 months.
• Semiconductor Etch Tool: A 300 mm wafer fab uses ZT5524A1A to switch 24 heater zones at 2 kHz PWM, achieving ±0.1 °C temperature uniformity.
• Electric Vehicle Battery Test: A U.S. lab uses VMIC+ASSY 12149 plus ZT5524A1A to safely isolate 600 VDC battery-cycling relays controlled by a PACSystems PLC.

竞品对比

Feature VMIC+ASSY 12149 + ZT5524A1A NI PXI-2586 Acromag 806T-1500 GE IC693MDL940
Isolation Voltage 1 000 Vrms / 2 500 Vrms 150 Vrms 1 500 Vrms 150 Vrms
Surge Level IEC 61000-4-5 Level 4 IEC 61000-4-5 Level 2 IEC 61000-4-5 Level 4 IEC 61000-4-5 Level 1
Switching Speed <10 µs (SSR) <1 ms (reed) <1 ms (EMR) <10 ms (EMR)
Channel Count 24 SSR 16 relay 8 relay 16 relay
Hot-Swap Terminals Yes No Yes No
Temperature Range –40 °C … +85 °C 0 °C … +55 °C –40 °C … +70 °C 0 °C … +60 °C
Certifications ATEX Zone 2 CE only CE, UL CE, UL

选型建议

Select VMIC+ASSY 12149 + ZT5524A1A when your application requires:
  1. Sub-10 µs SSR switching with 1 000 Vrms isolation.
  2. 4 kV surge immunity for offshore or heavy-industry environments.
  3. ATEX Zone 2 certification for explosive atmospheres.
    For cost-sensitive indoor panels, GE IC693MDL940 offers 16 EMR outputs at lower price but with slower switching and much lower isolation. If PXI driver integration is more important than isolation, NI PXI-2586 provides good software support but only 150 Vrms isolation and no hot-swap terminals.

注意事项

• Ensure the VME rear-transition slot depth is ≥35 mm when both VMIC+ASSY 12149 and ZT5524A1A are stacked.
• Use shielded twisted-pair for analog signals passing through VMIC+ASSY 12149 to maintain 90 dB CMRR at 100 kHz.
• Torque screw-clamp terminals to 0.5 N·m; over-torque can crack the housing.
• Verify that upstream analog boards (e.g., VMIC+ASSY 11993R2) are Rev D or later to enable automatic fault reporting from VMIC+ASSY 12149.
