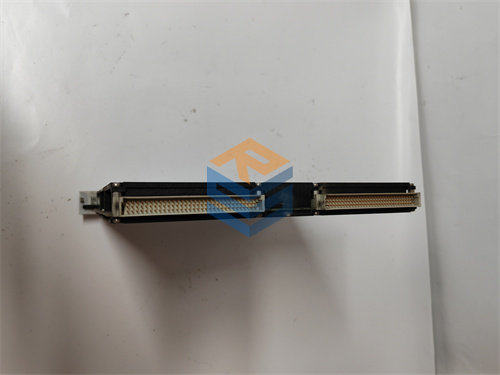

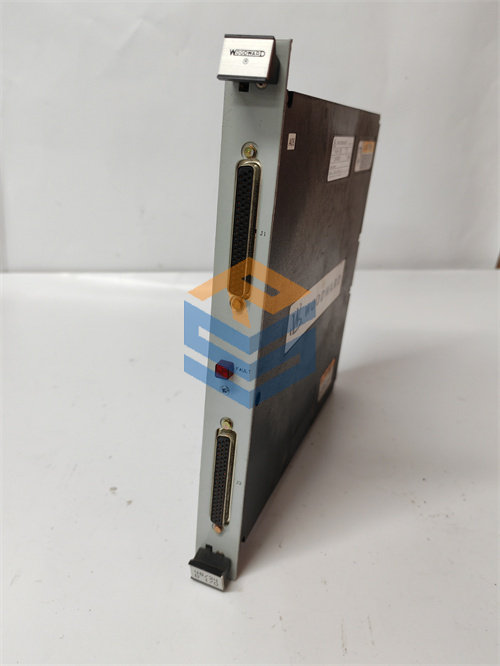

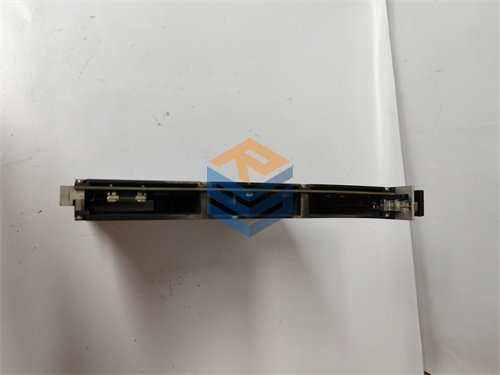

WOODWARD 5466-1246

الوصف

The WOODWARD 5466-1246 is a key communication and expansion module within Woodward’s industrial control systems. It’s specifically known as an Enhanced Performance RTN (Real-Time Network) Module for the MicroNet TMR (Triple Modular Redundancy) or MicroNet Plus platforms.

This module is designed to extend the reach and capabilities of your control system, particularly in multi-rack configurations, by facilitating high-speed, reliable communication between the main control rack and remote I/O chassis.

1. SEO-Optimized Titles:

• WOODWARD 5466-1246: Enhanced Performance RTN Module for MicroNet TMR/Plus.
• WOODWARD 5466-1246: Real-Time Network Expansion for Woodward Control Systems.
• WOODWARD 5466-1246: High-Speed Communication Module for MicroNet.
• WOODWARD 5466-1246: Woodward RTN Module for Multi-Rack Configurations.
• WOODWARD 5466-1246: Industrial Automation Network Bridge.
• WOODWARD 5466-1246: MicroNet TMR/Plus Distributed I/O Communication.
• WOODWARD 5466-1246: Woodward Module for Turbine & Compressor Control Expansion.
• WOODWARD 5466-1246: RTN Expansion Rack Module for MicroNet.
• WOODWARD 5466-1246: Enhanced Connectivity for Woodward Control Systems.

2. Product Overview:

The WOODWARD 5466-1246 is an Enhanced Performance Real-Time Network (RTN) Module used in Woodward’s MicroNet TMR and MicroNet Plus digital control systems. Its primary function is to enable high-speed, deterministic communication between a central control rack (where the main CPU resides) and optional expansion I/O racks. This allows the control system to manage a larger number of inputs and outputs, or to distribute them across a wider physical area within an industrial plant. It can operate in both redundant and simplex systems.

• Product Type: Real-Time Network (RTN) Module / Communication Expansion Module
• Manufacturer: Woodward
• Series: MicroNet TMR, MicroNet Plus
• Function: Facilitates high-speed, real-time communication between main and expansion chassis.
• Key Feature: “Enhanced Performance” indicates improved capabilities over previous RTN modules.

3. Detailed Product Description:

Modern industrial control systems often require the flexibility to expand their I/O capabilities beyond a single control rack. The WOODWARD 5466-1246 is engineered to provide this critical expansion, ensuring that data flows seamlessly and rapidly across a distributed control architecture.

The 5466-1246 is an Enhanced Performance RTN Module. RTN, or Real-Time Network, is Woodward’s proprietary communication protocol designed for high-speed, deterministic data exchange. This is vital for time-sensitive applications, such as the precise control of gas and steam turbines, compressors, and other rotating machinery.

This module plays a crucial role in enabling multi-rack systems. It’s typically installed in an expansion chassis and communicates with the main CPU (e.g., a 5466-1247 CPU TMR5200 in a TMR system or a compatible MicroNet Plus CPU) located in the main rack. Its primary operating function is to compile data from local I/O modules within its expansion rack and relay that data to the CPUs in the main rack. Concurrently, it ensures that redundant signals are properly transmitted for failover control, especially in TMR systems.

The “Enhanced Performance” aspect of the 5466-1246 suggests improvements over earlier RTN modules, likely including faster processing, increased memory, or more robust communication capabilities. It features:

• Motorola MPC5200 processor: A capable processor for handling communication and data compilation.
• 64 MB of Flash memory and 128 MB of DDR RAM: Ample memory for module operation and data buffering.
• Two Real-Time Network (RTN) ports: These ports allow for flexible connection, potentially enabling redundant RTN paths or connection to multiple segments.
• Service port: For local configuration and diagnostics.

The 5466-1246 supports up to eight-rack systems by utilizing both copper/fiber optic Ethernet switches and other Remote RTN modules, offering significant scalability. It can operate in both redundant and simplex systems. In a redundant system, up to two remote RTN modules can be installed in each expansion chassis to ensure continued operation even if one communication path fails.

This module meets several international standards and compliances, including CSA, ATEX, DNV, LRS, ABS, and CE (EMC), indicating its suitability for a wide range of regulated industrial environments.

Key Features and Benefits:

• Real-Time Network (RTN) Communication: Provides a fast, deterministic, and reliable communication backbone for distributed control systems.
• System Expansion: Crucial for expanding MicroNet TMR and MicroNet Plus systems to accommodate more I/O modules and manage larger, more complex industrial processes across multiple racks.
• Enhanced Performance: Offers improved capabilities over previous RTN modules, contributing to overall system responsiveness.
• Flexible Redundancy: Supports redundant RTN communication paths in multi-rack systems, enhancing system reliability and uptime.
• Scalability: Can be used to build systems with up to eight expansion racks, enabling comprehensive plant-wide control.
• Robust Industrial Design: Engineered for demanding industrial environments, ensuring reliable operation under varying temperatures, vibrations, and electromagnetic interference.
• Diagnostic Capabilities: Features a service port and indicators for status monitoring and troubleshooting.
• Broad Compliance: Meets various international safety and electromagnetic compatibility standards.

Technical Specifications:

Typical Applications:

The WOODWARD 5466-1246 is crucial in industrial applications that require expanding the control system’s reach and managing a large number of distributed I/O points for critical machinery.

• Power Generation: Expanding control systems for gas and steam turbines, generators, and auxiliary systems to include remote temperature, vibration, and process I/O.
• Oil and Gas Industry: Managing geographically dispersed compressor stations, pumping systems, and processing units by extending control system I/O capabilities.
• Petrochemical and Chemical Plants: Providing the communication backbone for large-scale process control systems with numerous sensors and actuators spread across a wide area.
• Marine Applications: Extending control and monitoring points across large vessels for propulsion and auxiliary systems.

Related Products and Solutions:

The WOODWARD 5466-1246 operates as an integral part of a larger Woodward control system. It commonly interacts with:

• Woodward MicroNet TMR CPUs (e.g., 5466-1247): The primary controllers in the main rack that receive data from the 5466-1246.
• Woodward MicroNet Plus CPUs: Compatible CPUs from the MicroNet Plus series.
• Woodward MicroNet Chassis (Main and Expansion): The physical racks that house these modules.
• Woodward MicroNet I/O Modules: Various analog and digital input/output modules located in the expansion chassis.
• Woodward GAP™ Software & Coder: The engineering tools used to program the control logic and configure the communication settings for the entire system.
• Woodward RTN Cables and Terminators: Specific cabling and termination devices required for proper RTN network setup.
