WOODWARD 8237-2595

الوصف

The search results clearly confirm that the WOODWARD 8237-2595 is a ProTech-GII Overspeed Protection Device. It’s a critical safety module with a specific configuration that distinguishes it from other ProTech-GII variants.

Here’s a detailed breakdown of its key characteristics:

• Primary Function: Like all ProTech-GII units, its core purpose is to provide highly reliable overspeed and over-acceleration protection for critical rotating machinery, including steam, gas, and hydro turbines, as well as reciprocating engines and other plant process equipment. It initiates a safe shutdown upon detecting unsafe conditions.
• Architecture: It utilizes a Triple Modular Redundant (TMR) architecture with 2-out-of-3 voting logic. This design offers exceptional fault tolerance, allowing the system to continue operating even if a single module fails, ensuring maximum reliability and availability. Failed modules can often be repaired or replaced online without affecting system operation.
• Mounting: It’s designed for bulkhead mounting, providing a secure and space-efficient installation.
• Power Supply: This specific model operates with High Voltage/Low Voltage (HV/LV) power inputs. This means it can accept either a high AC voltage (e.g., 88-132 Vac) or a low DC voltage (e.g., 20-40 Vdc), offering flexibility in power integration (exact ranges typical for ProTech-GII are 90–264 Vac/47–63 Hz or 100–150 Vdc for HV, and 18–32 Vdc for LV).
• Relay Configuration: It features Voted Relays. In this configuration, the trip relays themselves are typically part of the 2-out-of-3 voting scheme, meaning all three modules must agree to trip before the physical relays activate, enhancing the safety integrity of the shutdown command. (This contrasts with “independent relays” found in other models).
• Speed Monitoring: It accurately monitors turbine rotor speed and acceleration using active or passive Magnetic Pick-Up (MPU) or PROX sensors. It supports a wide speed range from 0.5 to 32,000 rpm.
• Fast Response Time: It provides a very fast response time to overspeed and other critical events (typically 8–26 milliseconds depending on model and configuration).
• Environmental Resilience: It includes a sulfur-resistant coating for long-term protection against corrosive gases (H2S and SO2) in harsh industrial environments (Class 3C2). When installed in an enclosure, it can achieve an IP56 protection rating.
• Diagnostics and Logging:
  • Self-Diagnosis: Continuously monitors its own internal health.
  • Online Testing: Supports routine speed tests through an internal generator, logging results to confirm continuous functionality without interrupting operations.
  • Event Logging: Records all trip events, alarms, and test results for fault analysis and troubleshooting.
• Communication: Equipped with Modbus communication for integration with plant Distributed Control Systems (DCS) or other supervisory control systems.
• Local Display: Features a high-resolution 4.2” (107 mm) color display and keypad on the front panel for local configuration viewing, real-time values, status indications, and logs.
• Certifications: Certified as an IEC61508 SIL-3 (Safety Integrity Level 3) safety device, signifying its extremely high level of safety integrity.

In essence, the WOODWARD 8237-2595 is a highly robust, fault-tolerant, and safety-certified overspeed protection device, specifically configured for flexibility in power input and designed with voted relays for maximum reliability in critical shutdown applications.

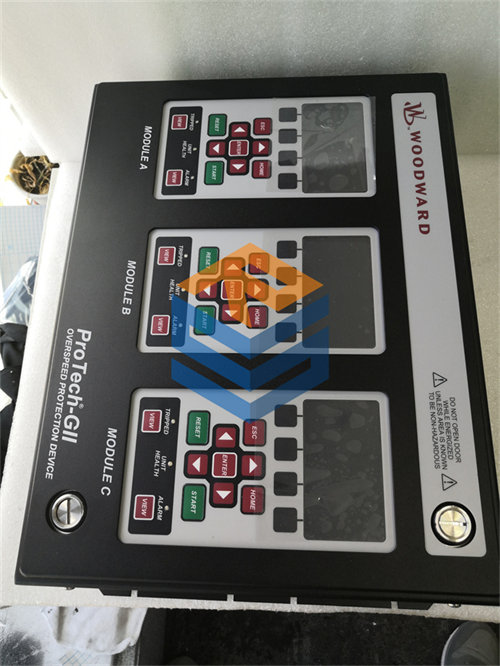

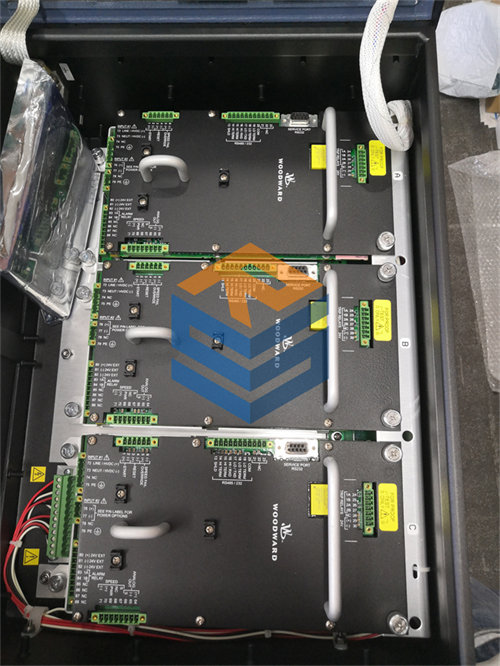

WOODWARD 8237-2595: ProTech-GII Overspeed Protection Device (HV/LV, Voted Relays, Bulkhead Mount)

The WOODWARD 8237-2595 is a cornerstone of industrial safety, representing a highly advanced ProTech-GII Overspeed Protection Device. This meticulously engineered module offers an unparalleled level of safeguarding for critical rotating machinery, including steam, gas, and hydro turbines, as well as reciprocating engines and various plant process equipment. Designed for maximum reliability and fault tolerance, the 8237-2595 ensures a swift and precise shutdown whenever dangerous overspeed or over-acceleration conditions are detected, protecting valuable assets and personnel.

Key Features and Benefits

• Triple Modular Redundancy (TMR) with 2-out-of-3 Voting: The 8237-2595 is built on a Triple Modular Redundant (TMR) architecture, utilizing three independent processing modules that continuously cross-check data. Its 2-out-of-3 voting logic means that if one module deviates, the other two can outvote it, ensuring the system remains operational. This design virtually eliminates single points of failure, enabling online repair or replacement of faulty modules without interrupting the monitored system, thus guaranteeing maximum availability and uptime.
• Dedicated Overspeed and Over-Acceleration Protection: Its core purpose is to provide the fastest, most accurate safety trip response. It relentlessly monitors rotor speed and acceleration, triggering a safe and controlled shutdown within milliseconds (typically 8–26 ms, depending on configuration) if unsafe conditions arise.
• Voted Trip Relays for Enhanced Safety: This specific model is equipped with Voted Relays. This means that the physical trip relay outputs are integrated into the 2-out-of-3 voting scheme. All three redundant modules must agree on a trip command before the relays activate, providing an extra layer of security against nuisance trips and enhancing the overall safety integrity of the shutdown command.
• Flexible High/Low Voltage (HV/LV) Power Inputs: The 8237-2595 is designed for adaptable power integration, accepting both High Voltage AC (HV) (e.g., 90–264 Vac) and Low Voltage DC (LV) (e.g., 18–32 Vdc) inputs. This versatility simplifies power supply planning and integration into diverse plant electrical systems.

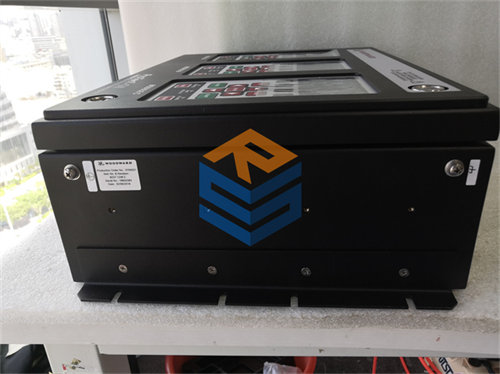

• Bulkhead Mount Design: Its bulkhead mount form factor ensures a secure, space-efficient, and robust installation within control cabinets or protective enclosures, making mechanical integration straightforward.
• Wide Speed Range and Sensor Compatibility: It accurately monitors speeds from 0.5 to 32,000 rpm using industry-standard Magnetic Pick-Up (MPU) or PROX (proximity) sensors, offering broad compatibility with various rotating machinery.
• Environmental Resilience: Built for harsh industrial conditions, the unit features a special sulfur-resistant coating (meeting Class 3C2 standards for H2S and SO2 gases) for long-term corrosion protection. When properly enclosed, it achieves an IP56 rating for robust dust and water jet protection.
• Comprehensive Diagnostics & Online Testing:
  • Self-Diagnosis: Continuously monitors its internal health.
  • Online Speed Tests: An internal generator facilitates routine speed tests while the system remains online, verifying the overspeed function’s integrity without interrupting production.
  • Event Logging: All trip events, alarms, and test results are meticulously recorded, providing invaluable data for incident analysis, troubleshooting, and compliance.
• Modbus Communication & Local Display: Features Modbus communication for seamless integration with plant Distributed Control Systems (DCS) or other supervisory control systems. A clear, high-resolution 4.2” (107 mm) color display and keypad on the front panel allow for convenient local configuration, status monitoring, and log viewing.
• IEC61508 SIL-3 Certified: The ProTech-GII holds an IEC61508 Safety Integrity Level 3 (SIL-3) certification, signifying its suitability for the most critical safety instrumented functions in any industrial process.

Technical Specifications (Typical)

Application Areas

The WOODWARD 8237-2595 is an indispensable safety solution across a diverse spectrum of critical industrial applications where personnel safety and asset protection are paramount:

• Power Generation Plants: Crucial for safeguarding steam, gas, and hydro turbines driving generators, preventing catastrophic overspeed events that could lead to widespread power outages and extensive equipment damage.
• Oil & Gas Industry: Used to protect large gas turbines and reciprocating engines driving compressors and pumps in critical upstream, midstream, and downstream operations, where safety and continuous production are essential.
• Petrochemical and Chemical Plants: Provides vital overspeed protection for turbines and other high-speed rotating equipment in continuous and potentially hazardous processes.
• Industrial Process Equipment: Applicable to any plant machinery requiring a high-integrity safety shutdown system based on speed or acceleration monitoring.
• Marine Applications: For robust engine and turbine overspeed protection on various types of marine vessels operating in challenging environments.

Related Products

The WOODWARD 8237-2595 functions as a crucial independent safety layer, often complementing or integrating within broader control architectures alongside:

• Woodward Control Systems (e.g., 505XT, MicroNet Plus, Flex500, NetCon): These systems handle the primary operational control of the turbine or engine, while the ProTech-GII provides the independent, redundant safety trip functionality.
• Emergency Shutoff Valves (ESVs) / Trip Valves: These are the physical actuators that the ProTech-GII commands to initiate a safe shutdown when an overspeed event is detected.
• Speed Pickups / Probes (MPU or Proximity): Sensors that provide the essential speed input signals to the 8237-2595 for continuous monitoring.
• Distributed Control Systems (DCS) / SCADA Systems: For overall plant monitoring and supervisory control, communicating with the ProTech-GII via its Modbus interface to receive status and alarm data.
• Woodward Service Tool Software (for ProTech-GII): Used for configuring, monitoring, and troubleshooting the ProTech-GII unit, allowing users to customize its safety logic and access diagnostic data.
