The WOODWARD 8237-2596 is a crucial component in turbine control systems, specifically identified as a ProTech-GII Overspeed Protection Device. It’s a digital speed control and overspeed protection module designed to safely shut down steam, gas, or water turbines in the event of an overspeed or overacceleration event.
This module is part of Woodward’s highly reliable ProTech-GII series, which is known for its robust and fault-tolerant design. The 8237-2596 variant is a bulkhead mount unit that supports high voltage (HV) and low voltage (LV) power inputs and features voted relays and voted inputs with math functions.
Optimized SEO Titles
- WOODWARD 8237-2596: ProTech-GII Overspeed Protection Device
- 8237-2596 Woodward: Digital Speed Control for Turbines
- WOODWARD 8237-2596: Triple Modular Redundant Turbine Safety Module
- Buy 8237-2596: Genuine Woodward ProTech-GII Bulkhead Mount
- 8237-2596 for Sale: Enhancing Turbine Safety and Reliability
- WOODWARD 8237-2596: Voted Relays HV/LV Overspeed Protection
- ProTech-GII Module 8237-2596: Critical for Turbine Shutdown
- 8237-2596 Woodward: Acceleration and Overspeed Detection
- WOODWARD 8237-2596: IEC61508 SIL-3 Certified Turbine Safety
- 8237-2596 Control Board: Advanced Turbine Diagnostics & Logging
Brief Product Description
The WOODWARD 8237-2596 is a ProTech-GII Overspeed Protection Device and digital speed control module. Engineered for critical safety applications, it reliably monitors the speed and acceleration of gas, steam, and water turbine rotors. Featuring a triple modular redundant (2-out-of-3 voted) architecture, it ensures precise overspeed detection and safely shuts down turbines by issuing trip commands to the turbine’s trip system. The 8237-2596 is a bulkhead mount unit with high and low voltage power inputs, voted relays, and Modbus communication for seamless integration and diagnostics.
- Product Type: Overspeed Protection Device / Digital Speed Control Module
- Manufacturer: Woodward
- Model/Part Number: 8237-2596 (ProTech-GII series)
- Primary Function: Turbine overspeed and overacceleration protection, safe shutdown.
- Key Features: Triple modular redundancy (2oo3 voted), digital speed control, Modbus communication, bulkhead mount.
Detailed Product Description
In the world of power generation and large industrial machinery, ensuring the safe operation of turbines is paramount. An uncontrolled turbine overspeed can lead to catastrophic failure, severe damage, and significant safety hazards. This is where a specialized piece of equipment like the WOODWARD 8237-2596 ProTech-GII Overspeed Protection Device becomes an indispensable guardian. It’s more than just a speed sensor; it’s an intelligent, fault-tolerant safety system designed to act as the ultimate safeguard for your valuable turbine assets.
I recall a detailed safety audit at a combined cycle power plant where the existing overspeed protection system was a single-point-of-failure mechanical design. The recommendation was to upgrade to a modern, digitally controlled, and highly redundant system. The Woodward ProTech-GII series, including models like the 8237-2596, became the go-to solution. Its 2-out-of-3 (2oo3) voted architecture meant that even if one sensor or module failed, the system would still maintain its protective capability, significantly enhancing the plant’s safety integrity level. The ability to perform online testing and log critical events also simplified maintenance and compliance, making it a powerful tool for reliable and safe turbine operation.
Uncompromising Safety with Digital Control
The WOODWARD 8237-2596 embodies a commitment to safety and reliability through its advanced design:
- Digital Speed Control: Unlike older mechanical or analog systems, the 8237-2596 uses a digital control system (built around an Electronic Control Unit or microprocessor) to monitor turbine operating status. This provides higher accuracy, faster response times, and better adjustability for speed and power output regulation.
- Overspeed and Overacceleration Protection: Its core function is to monitor the speed and acceleration of the turbine rotor through active or passive Magnetic Pick-Up Units (MPUs). If an overspeed or overacceleration event is detected, it rapidly issues a trip command to the turbine’s trip valve or corresponding shutdown system, preventing damage and ensuring safety.
- Triple Modular Redundancy (2-out-of-3 Voted Architecture): This is a cornerstone of its fault tolerance. The module typically contains three independent channels or processors. For a trip command to be issued, at least two out of the three channels must agree on an overspeed condition. This design ensures that a single point of failure (e.g., one sensor or one internal processor malfunction) will not cause a false trip (nuisance trip) nor prevent a necessary shutdown.
- IEC61508 SIL-3 Certification: This certification (Safety Integrity Level 3) signifies that the device meets stringent international standards for functional safety in critical applications, indicating a very low probability of dangerous failure. It also complies with industry standards like API 670 and API 612.
- Configurable Protection: The module can be configured to protect turbines from high acceleration events, adding another layer of safety.
Advanced Features for Integration and Maintenance
The 8237-2596 also offers features that enhance its integration and ease of maintenance:
- Bulkhead Mount, HV/LV Power Inputs: Designed for bulkhead mounting (e.g., on a wall or panel next to the turbine), this variant accepts both high voltage and low voltage power inputs, providing flexibility in power supply connections.

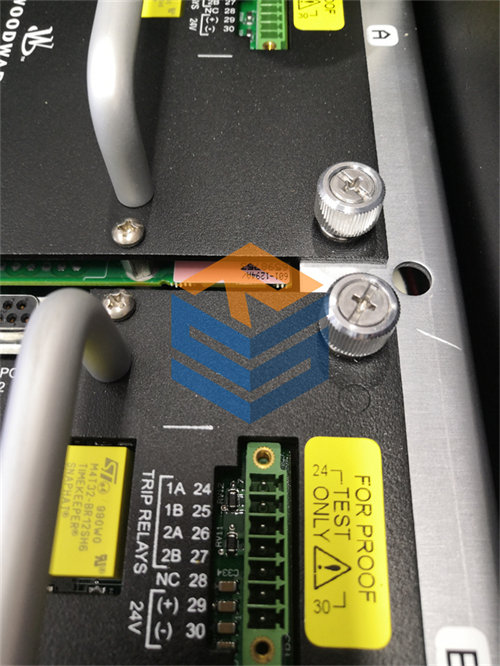

- Voted Relays: The trip outputs are managed by “voted relays,” further contributing to the redundancy and reliability of the shutdown mechanism.
- Modbus Communication: It supports the Modbus communication protocol, allowing for easy integration with other control systems, plant DCSs (Distributed Control Systems), or SCADA systems. This enables remote monitoring, diagnostics, and data exchange.
- Online Testing and Maintenance: The ProTech-GII allows for manual or automatic online testing of each module. This means you can test a module’s functionality without shutting down the entire turbine, greatly reducing downtime. Faulty modules can often be replaced online, maintaining system availability.
- Comprehensive Log Records: The device keeps detailed logs of all trips, alarms, trip valve response times, and overspeed events in non-volatile memory. This data is invaluable for fault analysis, troubleshooting, and post-event investigation.
- Multi-Language Support: Some versions offer multi-language support (e.g., 14 languages) for ease of operation in diverse global environments.
Technical Specifications (Based on known features of the ProTech-GII 8237-2596):
Key Applications:
The WOODWARD 8237-2596 is essential for safeguarding critical turbine assets across various industries:
- Power Generation: Primary and backup overspeed protection for steam, gas, and hydro turbines in power plants.
- Oil & Gas: Ensuring the safety of gas turbines used in compressor stations, pipelines, and processing plants.
- Petrochemical Industry: Protecting critical turbine-driven equipment in chemical and petrochemical facilities.
- Marine Propulsion: Used in large marine vessels for turbine overspeed protection.
- Industrial Plants: Any facility utilizing large industrial turbines where safety and uptime are critical.
This Woodward ProTech-GII module offers unparalleled safety and reliability, making it an indispensable part of modern turbine control and protection systems.
