WOODWARD 8237-2600

الوصف

The WOODWARD 8237-2600 is a highly specialized and critical safety component within Woodward’s ProTech-GII Overspeed Protection Device series. Its fundamental purpose is to ensure the safe operation of industrial steam, gas, and hydro turbines by rigorously monitoring their speed and acceleration and initiating an emergency shutdown if unsafe conditions are detected.

This particular model, the 8237-2600, is distinguished by its panel mount design, its ability to accept High Voltage (HV) and High Voltage (HV) power inputs (meaning it requires two independent high-voltage power sources, usually for redundancy), and its use of voted relays for its outputs, all while maintaining the triple modular redundant (TMR) architecture for its inputs.

Optimized SEO Titles

1. WOODWARD 8237-2600: ProTech-GII Panel Mount HV/HV Voted Relays
2. 8237-2600 Woodward: Digital Turbine Overspeed Protection Device
3. WOODWARD 8237-2600: Triple Modular Redundant Safety Module for Turbines
4. Buy 8237-2600: Genuine Woodward ProTech-GII HV/HV Power Input
5. 8237-2600 for Sale: Enhancing Turbine Safety and Reliability
6. WOODWARD 8237-2600: IEC61508 SIL-3 Certified Turbine Protection
7. ProTech-GII Module 8237-2600: Critical for Turbine Shutdown Systems
8. 8237-2600 Woodward: Advanced Acceleration and Overspeed Detection
9. WOODWARD 8237-2600: Comprehensive Turbine Diagnostics & Event Logging
10. 8237-2600 Control Board: High Availability Turbine Management

Brief Product Description

The WOODWARD 8237-2600 is a ProTech-GII Overspeed Protection Device and digital speed control module. It is engineered for critical safety applications, precisely monitoring the speed and acceleration of turbine rotors. Featuring a triple modular redundant (2-out-of-3 voted) input architecture, it ensures highly reliable overspeed detection. This specific model is designed for panel mounting, supports dual High Voltage (HV) power inputs, and employs voted output relays to issue safe shutdown commands to the turbine’s trip system. It also integrates Modbus communication for seamless diagnostics and remote monitoring.

• Product Type: Overspeed Protection Device / Digital Speed Control Module
• Manufacturer: Woodward
• Model/Part Number: 8237-2600 (ProTech-GII series)
• Primary Function: Turbine overspeed and overacceleration protection, safe shutdown.
• Key Features: Triple modular redundancy (2oo3 voted inputs), digital speed control, voted relays, Modbus communication, panel mount, dual High Voltage (HV) power inputs.

Detailed Product Description

In critical industrial environments, especially those involving large turbines for power generation or industrial processes, preventing an overspeed condition is a paramount safety concern. An uncontrolled turbine overspeed can lead to catastrophic mechanical failure, extensive equipment damage, and significant safety risks to personnel. This is precisely where the WOODWARD 8237-2600 ProTech-GII Overspeed Protection Device plays an indispensable role. It represents a sophisticated, highly reliable, and fault-tolerant solution, designed to serve as the ultimate layer of safety for your valuable turbine assets.

In one scenario, I advised on a major upgrade for a large industrial gas turbine where the existing overspeed protection system was a single point of failure and lacked modern diagnostics. We opted for the Woodward ProTech-GII series, specifically integrating modules like the 8237-2600. A key benefit was its dual High Voltage (HV) power inputs with voted relays, which provided an exceptional level of power supply and output redundancy. This, combined with its triple modular redundant (TMR) input architecture, meant the plant could achieve a higher Safety Integrity Level (SIL) certification. The ability to conduct online testing without shutting down the turbine further streamlined maintenance and ensured continuous compliance with stringent safety regulations.

Uncompromising Safety with Digital Control and Redundancy

The WOODWARD 8237-2600 is built upon the robust foundation of the ProTech-GII series’ advanced safety architecture, delivering superior protection:

• Digital Speed and Acceleration Monitoring: The module precisely monitors the turbine rotor’s speed and acceleration, typically receiving signals from active or passive Magnetic Pick-Up Units (MPUs). This digital approach ensures high accuracy and rapid response times, which are crucial for detecting and reacting to hazardous conditions promptly.
• Overspeed and Overacceleration Protection: Its core function is to detect when the turbine’s speed or its rate of acceleration exceeds pre-defined safety setpoints. Upon detection, it promptly issues a trip command to the turbine’s emergency trip valve(s) or other shutdown mechanisms to prevent a runaway condition.
• Triple Modular Redundancy (TMR) for Inputs (2-out-of-3 Voting): This is a defining characteristic of the ProTech-GII series. The system employs three independent channels for speed sensing and processing. For a trip condition to be declared, at least two out of the three channels must independently confirm the overspeed or overacceleration event. This 2oo3 voting logic significantly enhances system reliability by minimizing the risk of nuisance trips due to a single sensor or module fault, while still ensuring a safe shutdown when a genuine hazardous condition exists.
• IEC61508 SIL-3 Certified: This certification indicates that the 8237-2600 meets the most rigorous international standards for functional safety. Achieving Safety Integrity Level 3 means the device has an extremely low probability of dangerous failure, making it suitable for the most critical Safety Instrumented Functions (SIF) in demanding industrial applications. It also adheres to industry standards such as API 670 and API 612.

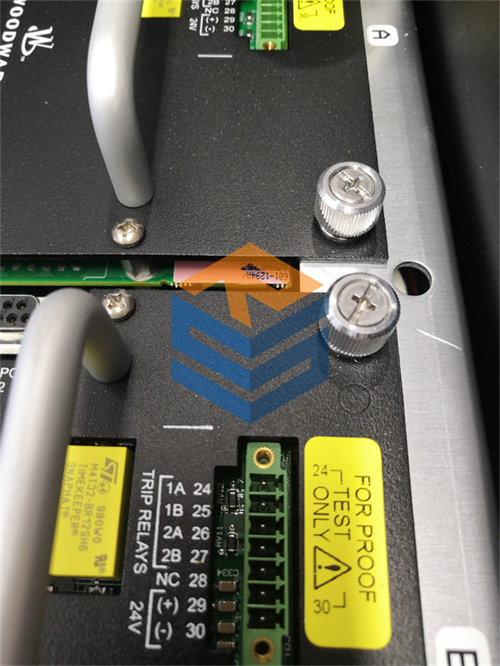

• Voted Relays (Output): This specific model utilizes voted relays for its trip outputs. This means that for a trip command to be executed, a majority of the redundant output relays must agree, further enhancing the reliability and preventing false trips even at the output stage.

Design and Features for Flexible Integration and Maintenance

The 8237-2600 is designed for practical industrial application and ease of maintenance:

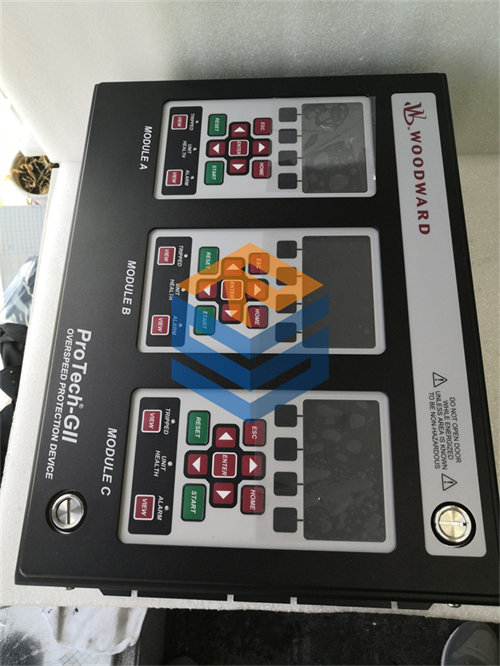

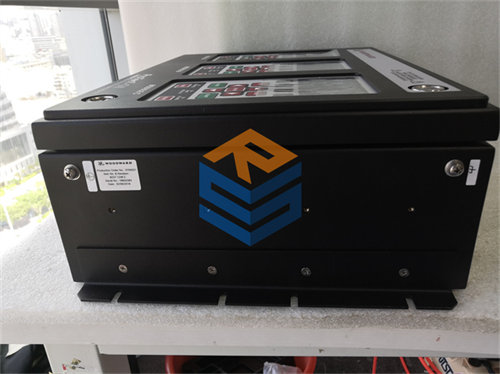

• Panel Mount Design: This variant is specifically designed for flush mounting within a control cabinet or panel, providing a clean, integrated appearance. This makes it suitable for installation in control rooms or local equipment panels, offering convenient access.
• Dual High Voltage (HV) Power Inputs: The module accepts two independent High Voltage (HV) power inputs (e.g., 90–240 Vac / 100–150 Vdc). This dual HV input capability is crucial for providing redundant power paths, enhancing the system’s fault tolerance and ensuring continuous operation even if one power source fails.
• Modbus Communication: Equipped with Modbus (serial) communication, the device can seamlessly integrate with Distributed Control Systems (DCS), SCADA systems, or other plant-wide monitoring platforms. This enables remote monitoring of turbine speed, alarm statuses, detailed diagnostics, and historical event logs.
• Online Testing and Repair: A significant advantage of the ProTech-GII system is its ability to perform online testing of its functionality and speed sensors without requiring a turbine shutdown. Individual modules can often be replaced while the system remains online, significantly minimizing operational downtime during maintenance.
• Comprehensive Logging: The device stores detailed historical logs of all trips, alarms, overspeed events, and trip valve response times in non-volatile memory. This data is invaluable for post-event analysis, root cause identification, and compliance reporting.
• Environmental Robustness: Engineered for harsh industrial environments, it features robust construction and often includes conformal coating to protect against common contaminants like sulfur, H2S, and SO2 gases (rated for Class 3C2 environments and typically IP56 ingress protection when properly installed).

Technical Specifications (Based on known features of the ProTech-GII 8237-2600):

Key Applications

The WOODWARD 8237-2600 is a vital safety component employed in a wide array of high-stakes industrial applications:

• Power Generation: Providing robust primary and backup overspeed protection for gas, steam, and hydro turbines in diverse power plant configurations worldwide.
• Oil & Gas: Safeguarding gas turbines driving critical compressors in pipelines, processing plants, and offshore platforms.
• Petrochemical Industry: Protecting turbine-driven machinery vital to chemical manufacturing and refining operations.
• Marine Propulsion: Used in large marine vessels for highly reliable turbine overspeed protection systems.
• Industrial Plants: Any facility that relies on large industrial turbines where safety, continuous operation, and regulatory compliance are paramount.
