Product Name

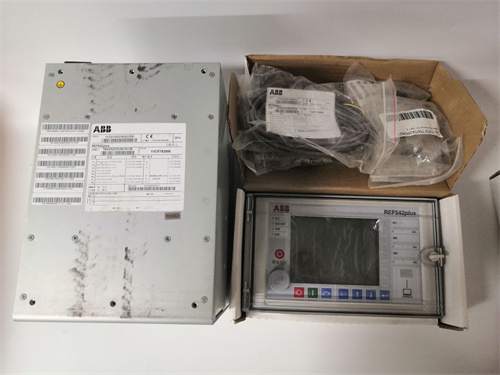

ABB REF542PLUS

Product Description

The ABB REF542PLUS is a highly advanced protection relay specifically designed for medium voltage applications. This model stands out in the ABB protection relay portfolio, offering robust features that ensure reliability and operational efficiency. The REF542PLUS is crafted to provide comprehensive protection for transformers, feeders, and generator circuits in substations.

The ABB REF542PLUS operates on a microprocessor-based technology that enhances its sensing capabilities, providing superior protection through accurate measurement and fast response times. The relay is equipped with extensive communication features, allowing seamless integration into SCADA systems and enabling remote monitoring and control.

Product Parameters

  • ABB+REF542PLUS
  • Rated Voltage: 100-250 V AC/DC
  • Protection Functions: Overcurrent, Earth fault, Differential, Voltage
  • Communication Interfaces: IEC 61850, Modbus, and others
  • Display: Color LCD for clear visibility
  • Operating Temperature: -40°C to +70°C
  • Weight: Approximately 3.5 kg

Advantages and Features

  1. Versatile Protection: The versatility of the ABB REF542PLUS allows for comprehensive protection across various applications, ensuring minimal downtime.
  2. User-Friendly Interface: An intuitive interface with a color LCD makes operation and monitoring straightforward.
  3. Advanced Communication: With support for modern communication protocols such as IEC 61850, integration into existing systems is made easy.
  4. Scalability: The modular design of the REF542PLUS allows for future upgrades and additional functionalities.
  5. Real-Time Monitoring: Continuous monitoring and reporting functionalities provide insights for predictive maintenance and operational improvements.

Application Areas and Case Studies

The ABB REF542PLUS is extensively used in:

  • Electrical utility companies for substations
  • Industrial applications for transformer protection
  • Commercial buildings where medium voltage systems are in place

Case Study: An electrical utility implemented the ABB REF542PLUS in their substations to enhance transformer protection. The result was a significant reduction in outages due to transformer failures, demonstrating the relay’s reliability and effectiveness.

Competitor Comparison

When compared to similar models like the Schneider Electric MiCOM P40 and Siemens SIPROTEC, the ABB REF542PLUS offers advanced features such as better communication protocol support and a more extensive range of protection functions. Additionally, the user interface of the REF542PLUS is recognized as more intuitive, contributing to quicker operator training.

Selection Advice

When choosing a relay for medium voltage protection, consider the following:

  • Determine the necessary protection functions required for your application.
  • Evaluate the communication requirements for your existing systems.
  • Assess the operating environment and ensure compatibility with temperature and physical constraints.
  • Review the installation requirements and ease of use for personnel.

Precautions

  • Ensure that the ABB REF542PLUS is calibrated correctly during installation to prevent misconnections.
  • Regularly update firmware and software to maintain compatibility with emerging communication standards.
  • Conduct routine maintenance checks to ensure optimal performance.

We are your trusted partner, providing sales and technical support for product models like ABB REF542PLUS and other automation spare parts. We offer special discount prices to serve you better. Please contact us, and we will be dedicated to serving you.
