Product Name

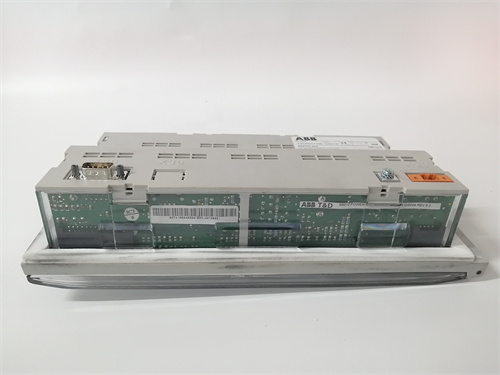

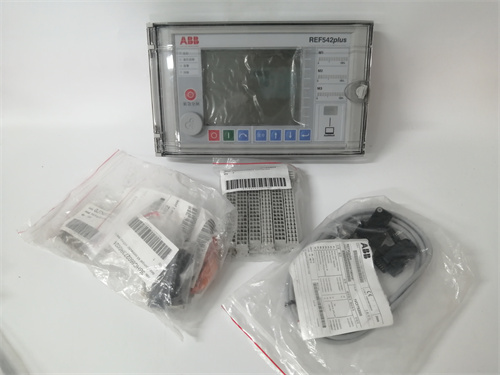

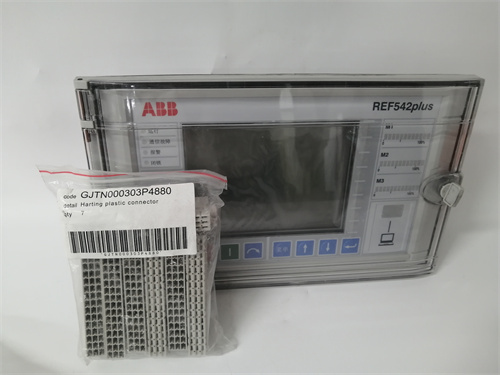

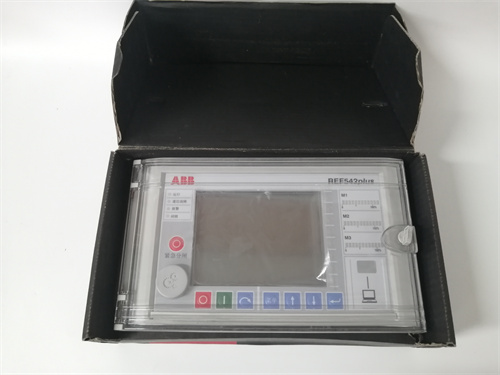

ABB REF542PLUS

Product Description

The ABB REF542PLUS is a state-of-the-art digital protection and control relay designed for use in medium voltage substations and networks. This model offers comprehensive protection for electrical equipment, ensuring reliability and safety in various operations. The ABB REF542PLUS is built to handle a variety of applications, integrating advanced features that support efficient management of electrical systems.

This relay supports multiple protection functionalities, including overcurrent, earth fault, and busbar protection, making the ABB REF542PLUS an essential component in modern power distribution. With its user-friendly interface and customizable settings, it allows for easy integration into existing systems while providing high levels of precision and reliability.

Product Parameters

• ABB+REF542PLUS
• Voltage Range: Up to 36 kV
• Communication: IEC 61850, Modbus, DNP3
• Protection Functions: Overcurrent, earth fault, reverse power, and transformer protection
• Display: LCD with high visibility
• Mounting: Panel or rack-mounted
• Power Supply: Wide range of input options available
• Dimensions: 280 x 220 x 90 mm

Advantages and Features

The ABB REF542PLUS distinguishes itself with several key advantages:

• High Flexibility: Configurable settings allow for adaptation to various applications and settings.
• Excellent Communication: Advanced communication protocols enable seamless integration into modern control systems.
• Robust Design: Built to withstand harsh environmental conditions, ensuring longevity and durability.
• Cost Efficiency: Reduces overheads with low maintenance costs, thanks to its reliable performance.

Application Fields and Case Studies

The ABB REF542PLUS finds its usage across various sectors, including:

• Power Generation: Safeguarding generators and turbines from faults.
• Renewable Energy: Supporting wind and solar installations with effective monitoring and control.
• Industrial Applications: Protecting critical process equipment and ensuring operational integrity.

A notable case study involves a power utility implementing the ABB REF542PLUS across several substations, resulting in a 30% reduction in fault-related outages and improved operational efficiency.

Competitor Comparison

When comparing the ABB REF542PLUS with competitors like Siemens SiLink and Schneider Electric’s Easypact, the ABB REF542PLUS offers superior communication capabilities and a wider range of protection functions. While competitors may provide similar protection features, the ABB REF542PLUS stands out with its flexibility and user-friendly configuration, making it the preferred choice for many applications.

Selection Advice

When selecting protection relays, consider the following:

• Application Requirements: Determine the specific protection and control needs of your system.
• Compatibility: Ensure the relay can be integrated with existing communication protocols.
• Future Needs: Choose a model like the ABB REF542PLUS that can accommodate future operational changes or expansions.

Cautions

It is important to ensure that the ABB REF542PLUS is installed in accordance with manufacturer guidelines. Regular maintenance and software updates are essential to maximize performance and reliability. Proper grounding and insulation should be verified during installation to prevent operational issues.

We are your trusted partner, providing a wide array of products including the ABB REF542PLUS and other automation spare parts, along with sales and technical support. Enjoy our special discounted prices by reaching out to us; we will be dedicated to serving you.
