Product Name

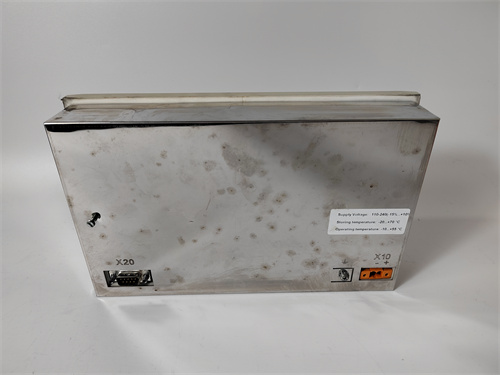

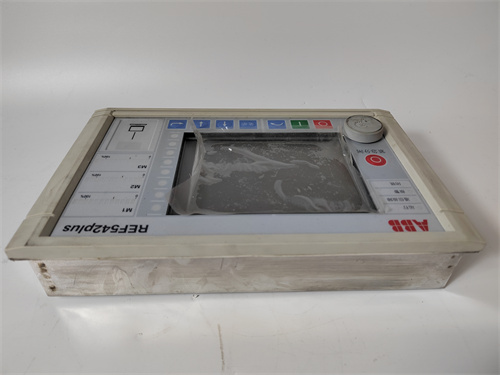

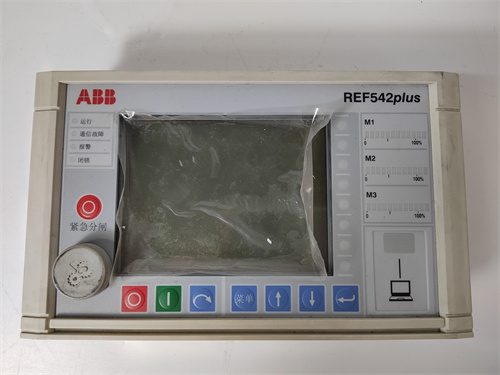

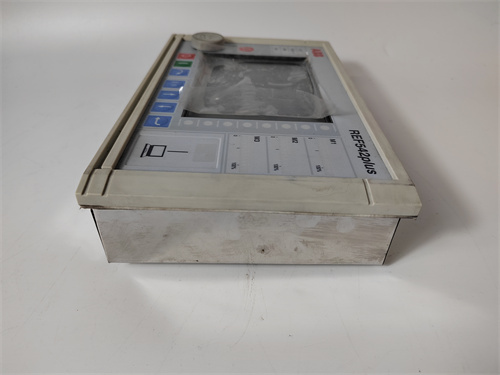

ABB REF542PLUS

Product Description

The ABB REF542PLUS is a sophisticated protection relay designed for medium voltage applications. It integrates the essential functionalities necessary for the protection, control, and monitoring of electrical power systems. This state-of-the-art device is a part of ABB‘s advanced series of protection relays that ensure reliable operation and enhanced safety in various electrical installations.

The REF542PLUS offers several features, including flexible configuration options, user-friendly interfaces, and comprehensive communication capabilities that facilitate seamless integration into existing systems. Its compact design makes it suitable for a variety of installations, optimizing space and mounting options.

Product Parameters

• ABB+REF542PLUS REF542
• Voltage Rating: Up to 36 kV
• Current Rating: Flexible current settings, typically up to 4000 A
• Protection Functions: Overcurrent, earth fault, distance protection, and more
• Communication Protocols: IEC 61850, DNP3, Modbus, and more
• Display: LED indicators and LCD for easy readouts
• Auxiliary Power Supply: 24V, 48V or 110V DC options
• Dimensions: Standard dimensions suitable for most switchgear applications
• Weight: Lightweight design for ease of installation

Advantages and Features

The ABB REF542PLUS stands out due to its robust performance, which is crucial for ensuring the security and reliability of electrical power systems. Key advantages include:

• Comprehensive Protection: Multiple built-in protection functions cover a wide range of fault conditions, ensuring total protection.
• Flexible Configuration: Users can configure the relay for specific applications, making it versatile for various operational requirements.
• Advanced Monitoring: Continuous monitoring and diagnostics provide real-time information about system health, enabling proactive maintenance.
• User-Friendly Interface: The intuitive display and controls simplify operation, reducing initial learning curve and training time.
• Reliable Communication: The various communication protocols ensure compatibility with existing systems, making integration smooth and efficient.

Application Areas and Use Cases

The ABB REF542PLUS is widely used in several applications, including:

• Electrical Utilities: For protection of substations and distribution networks.
• Industrial Facilities: To safeguard high-voltage motors and generators.
• Renewable Energy: In wind farms and solar power plants, ensuring system reliability.
• Transportation Infrastructure: Protecting critical systems in rail and road transport networks.

A notable application case involves the deployment of the REF542PLUS in a renewable energy project, where its monitoring capabilities significantly reduced downtime and optimized performance metrics, leading to an increased return on investment.

Competitor Comparison

When comparing the ABB REF542PLUS with similar products like Siemens’s 7SJ84 and Schneider Electric’s SEL-751, several distinctions arise:

• Protection Complexity: The ABB REF542PLUS offers more extensive protection functions than its competitors, making it suitable for complex applications.
• Configuration Flexibility: The configuration options in the REF542PLUS are more intuitive compared to those offered by Schneider Electric’s alternative.
• Communication Options: The ABB relay supports more protocols, catering to a broader range of integration scenarios, surpassing what is available in the Siemens model.

Selection Recommendations

When selecting the appropriate relay for your application, consider the following:

• System Voltage and Current Levels: Ensure the selected relay matches your voltage and current specifications.
• Protection Requirements: Evaluate the range of protections needed based on the specific applications and fault conditions.
• Communication Needs: Choose a relay that can communicate effectively with existing equipment and follow your protocol preferences.
• Future Expansion: Factor in potential system expansions; choosing a versatile model like REF542PLUS can save cost and complexity down the line.

Precautions

It is essential to follow best practices during the installation and configuration of the ABB REF542PLUS:

• Proper Handling: Ensure that the device is handled in accordance with manufacturer specifications to avoid damage.
• Correct Installation: Follow the installation guidelines precisely to secure optimal performance and safety.
• Regular Maintenance: Implement periodic checks and maintenance routines to ensure the reliability of the protection system.

We are your trusted partner in automation solutions, providing product models like ABB REF542PLUS along with other automation spare parts, sales, and technical support. We offer special discount prices to accommodate your needs. Please contact us, and we will be at your service.
