ABB+REF615C-D HCFFAEAGABC2BAA1XD

  • ABB+REF615C-D HCFFAEAGABC2BAA1XD
  • Voltage Rating: Up to 15 kV
  • Protection Functions: Overcurrent, earth fault, transformer protection
  • Communication Protocols: IEC 61850, Modbus
  • Power Supply Voltage: 110/220 V AC or DC
  • Display Type: LCD display with LED indicators
  • Response Time: < 30 ms for protection operation
  • Dimensions: Standard panel mounting dimensions
  • Temperature Range: -25 °C to +55 °C
احصل على عرض أسعار
التصنيف:

الوصف

Product Name

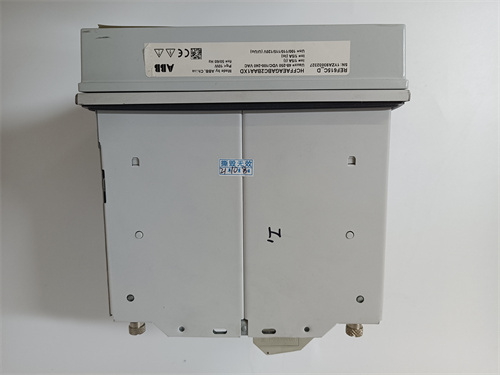

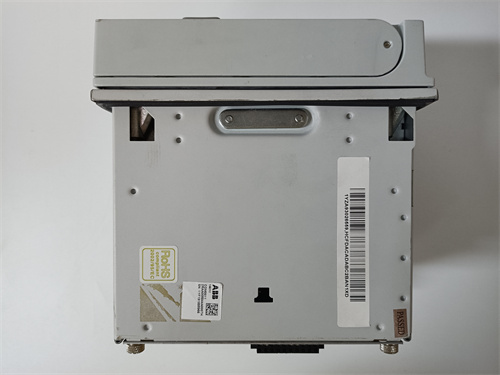

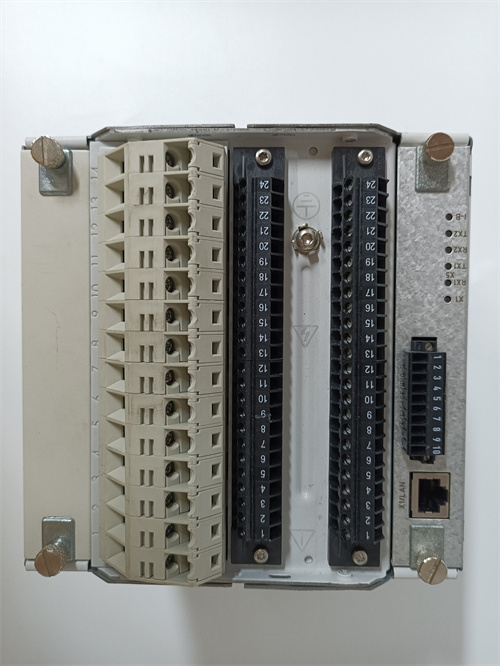

ABB REF615C-D HCFFAEAGABC2BAA1XD

Product Description

The ABB REF615C-D HCFFAEAGABC2BAA1XD is a versatile and robust protection relay designed for use in various electrical applications. As part of ABB’s sophisticated REF series, this model provides comprehensive protection, control, and monitoring functions for medium-voltage networks. The ABB REF615C-D is recognized for its ability to offer high precision and reliability in overcurrent, earth fault, and transformer protection, making it an excellent choice for substations and industrial applications.

The ABB REF615C-D integrates multiple features such as advanced communication capabilities, user-friendly interfaces, and flexible configuration options. It ensures secure and efficient operation in electrical systems, optimizing performance and extending equipment lifetime.

Product Parameters

  • ABB+REF615C-D HCFFAEAGABC2BAA1XD
  • Voltage Rating: Up to 15 kV
  • Protection Functions: Overcurrent, earth fault, transformer protection
  • Communication Protocols: IEC 61850, Modbus
  • Power Supply Voltage: 110/220 V AC or DC
  • Display Type: LCD display with LED indicators
  • Response Time: < 30 ms for protection operation
  • Dimensions: Standard panel mounting dimensions
  • Temperature Range: -25 °C to +55 °C

Advantages and Features

The ABB REF615C-D HCFFAEAGABC2BAA1XD offers numerous advantages that make it a standout choice for protection relays:

  1. Comprehensive Protection Capabilities: It includes a wide range of protection functions that cater to diverse applications.
  2. User-friendly Interface: The easy-to-navigate LCD display allows for simple configuration and monitoring.
  3. Advanced Communication Options: With support for IEC 61850 and Modbus, integration into modern automation systems is seamless.
  4. Compact Design: The relay is designed to fit into standard panel enclosures, saving space and enhancing installation flexibility.
  5. Reliability and Durability: Built to withstand harsh operating conditions, ensuring long-term performance and minimal maintenance.

Application Areas and Case Studies

The ABB REF615C-D is suitable for various applications, including:

  • Substation Automation: Used in transformer protection and control in substations, enhancing operational efficiency and safety.
  • Industrial Automation: Protecting motors and generators in manufacturing plants to prevent downtime and equipment failure.
  • Renewable Energy: Essential in solar and wind farms for grid connection and safety assurance.

A notable case study involved the use of ABB REF615C-D in a large industrial complex where it effectively reduced downtime incidents caused by electrical faults, leading to significant operational cost savings over time.

Competitor Comparison

When compared to similar products like the Schneider Electric MiCOM P643 and Siemens 7SD52, the ABB REF615C-D stands out for its advanced communication capabilities and user-friendly interface. While all three offer reliable protection, the ABB REF615C-D’s flexibility in integration within modern digital systems gives it a competitive edge.

Selection Recommendations

When choosing the ABB REF615C-D HCFFAEAGABC2BAA1XD, consider the following:

  1. Application Requirements: Assess the specific protection needs of your application, ensuring the relay’s functions align with your operational goals.
  2. Integration Compatibility: Confirm compatibility with existing automation systems and communication protocols.
  3. Future Scalability: Consider future expansion and whether the selected model will accommodate potential growth in your application.

Important Considerations

When working with the ABB REF615C-D, it is essential to:

  • Ensure proper installation according to the manufacturer’s guidelines.
  • Regularly update firmware and software to leverage new features and enhance security.
  • Train operators on the relay’s functionalities for optimal usage and troubleshooting.

We are your trusted partner, providing the ABB REF615C-D HCFFAEAGABC2BAA1XD and other automation spare parts along with sales and technical support. We offer special discount prices. Please contact us; we are dedicated to serving you!
