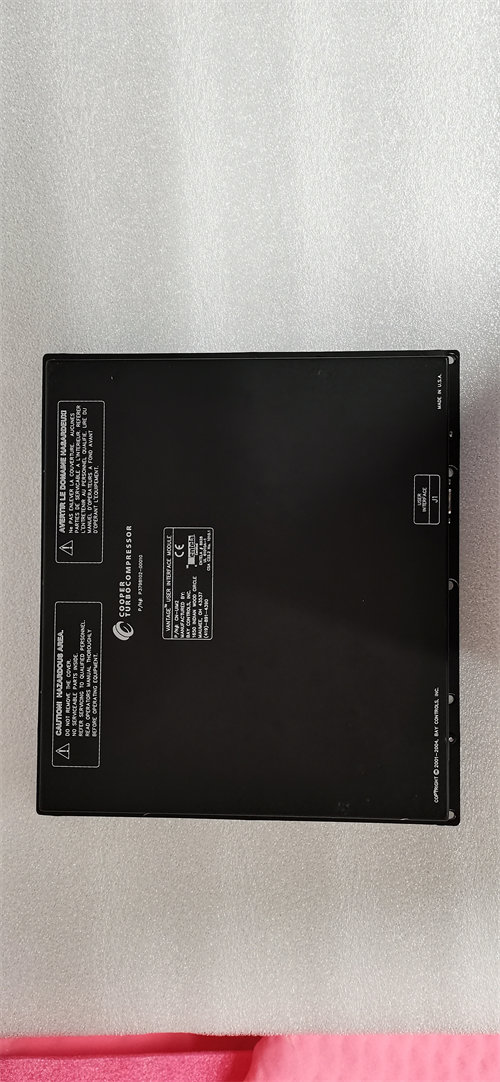

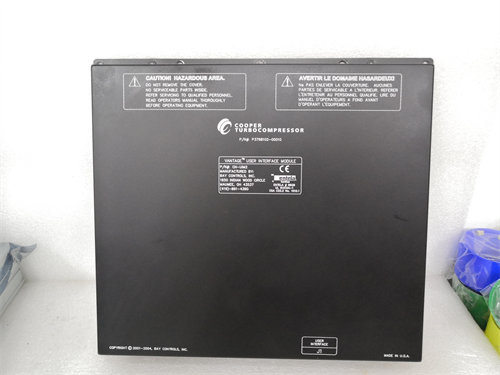

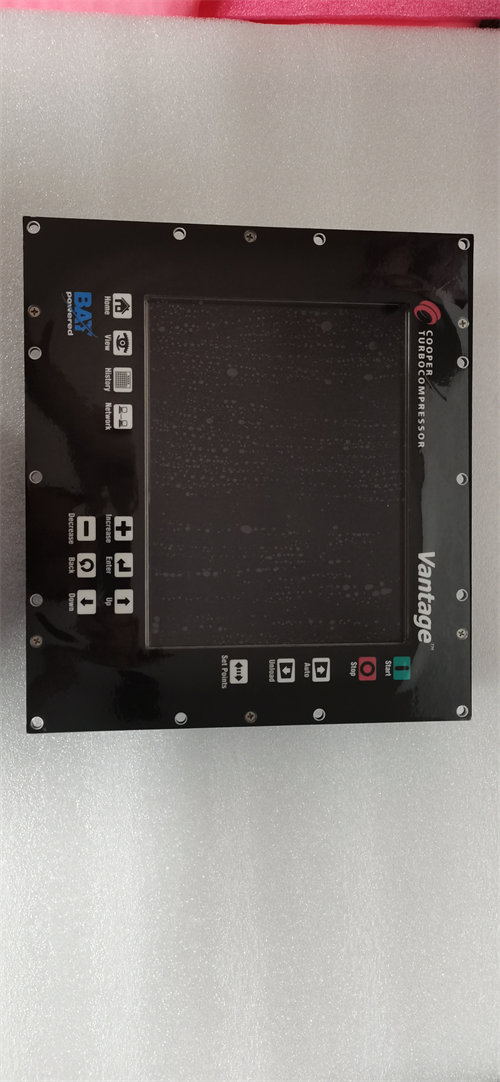

COOPER P3798102-00010 CN-UIM2

Product Parameters & Specifications

  • Product Name: COOPER P3798102-00010 CN-UIM2 PLC Module

  • Brand: COOPER

  • Model Number: P3798102-00010 CN-UIM2

  • Module Type: Universal I/O Module (UIM2)

  • Power Supply:

    • 24V DC nominal input
    • Operating Voltage Range: 18V DC to 30V DC

  • Input/Output Types:

    • Digital Inputs (24V DC)
    • Digital Outputs (24V DC)
    • Analog Inputs (0-10V or 4-20mA)
    • Analog Outputs (4-20mA)

  • I/O Configuration:

    • Digital Inputs: 16 inputs per channel (up to 3 channels supported)
    • Digital Outputs: 16 outputs per channel (up to 3 channels supported)
    • Analog Inputs: 8 inputs (0-10V or 4-20mA)
    • Analog Outputs: 8 outputs (4-20mA)
احصل على عرض أسعار
التصنيف:

الوصف

COOPER P3798102-00010 CN-UIM2 PLC Module

Product Name

COOPER P3798102-00010 CN-UIM2 PLC Module

Product Description

The COOPER P3798102-00010 CN-UIM2 is a Universal I/O Module (UIM2) designed for COOPER Automation Systems. It is a versatile and high-performance module used for interfacing with various industrial equipment and sensors, providing reliable input and output functionalities. This module is specifically built for integrating into large industrial automation systems, offering a robust and flexible I/O solution.

The UIM2 module is widely used for controlling and monitoring machinery, process systems, and assembly lines. It supports both digital and analog signals, making it suitable for diverse applications across manufacturing, oil & gas, energy management, and process control sectors.

This module ensures high-speed operation and seamless communication with other control systems, facilitating efficient process management and automation.

Product Parameters & Specifications

  • Product Name: COOPER P3798102-00010 CN-UIM2 PLC Module

  • Brand: COOPER

  • Model Number: P3798102-00010 CN-UIM2

  • Module Type: Universal I/O Module (UIM2)

  • Power Supply:

    • 24V DC nominal input
    • Operating Voltage Range: 18V DC to 30V DC

  • Input/Output Types:

    • Digital Inputs (24V DC)
    • Digital Outputs (24V DC)
    • Analog Inputs (0-10V or 4-20mA)
    • Analog Outputs (4-20mA)

  • I/O Configuration:

    • Digital Inputs: 16 inputs per channel (up to 3 channels supported)
    • Digital Outputs: 16 outputs per channel (up to 3 channels supported)
    • Analog Inputs: 8 inputs (0-10V or 4-20mA)
    • Analog Outputs: 8 outputs (4-20mA)

  • Signal Types:

    • Supports both digital and analog signals for a wide range of industrial devices and systems

  • Environmental Conditions:

    • Operating Temperature: 0°C to 60°C (32°F to 140°F)
    • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
    • Humidity: 5% to 95% Non-condensing

  • Mounting:

    • DIN Rail Mountable
    • Compatible with COOPER PLC Rack Systems and modular setups

  • Communication Protocols:

    • Modbus RTU
    • Ethernet/IP
    • PROFIBUS DP (if supported by the system)

  • Diagnostics:

    • LED Indicators: Status LEDs for input/output status, power status, and error detection

  • Dimension (L x W x H):

    • Approx. 145 mm x 130 mm x 90 mm (L x W x H)

  • Weight:

    • Approx. 1.5 kg (3.3 lbs)

  • Compatibility:

    • Designed for use with COOPER Automation Systems and other compatible industrial control systems.

  • Certification:

    • CE, UL, CSA, and other industry certifications to ensure compliance with international standards

Key Features

  1. High-Density I/O Capability:
    The CN-UIM2 module offers 16 digital inputs and 16 digital outputs per channel, enabling the efficient control of multiple devices in high-density systems. It also supports analog inputs and outputs, making it suitable for a variety of complex applications.

  2. Versatility:
    This module is designed to handle both digital and analog I/O signals, offering broad applicability across different types of industrial processes, including machinery control, process monitoring, and energy management systems.

  3. Real-Time Data Processing:
    The P3798102-00010 CN-UIM2 ensures quick, real-time data handling for applications requiring precise control and fast response times. This is critical for industries such as manufacturing, process automation, and energy distribution.

  4. Comprehensive Diagnostics:
    Built-in diagnostic LEDs allow for immediate identification of faults or status changes, simplifying maintenance and reducing downtime.

  5. Wide Compatibility:
    The module supports a variety of communication protocols, such as Modbus RTU, Ethernet/IP, and PROFIBUS DP, ensuring ease of integration with existing systems and infrastructure.

  6. Compact and Robust Design:
    With its durable, compact form factor, the UIM2 module is ideal for systems where space is limited or where equipment needs to withstand harsh industrial conditions.

  7. Scalable and Modular:
    The CN-UIM2 is part of a modular control system, enabling future expansions of I/O capacities as the automation system grows, making it adaptable to evolving industrial needs.

Applications

The COOPER P3798102-00010 CN-UIM2 PLC module is suitable for a wide range of industrial automation applications, including:

  • Manufacturing Automation: For controlling assembly lines, machinery, robotic systems, and packaging systems in a wide range of industries.

  • Process Control: Used in industries such as oil and gas, chemical processing, and pharmaceuticals to control and monitor critical processes.

  • Energy Management: Supervising power generation, distribution, and management systems, ensuring efficient and stable energy flow across large networks.

  • Water Treatment and Wastewater: Ideal for controlling and monitoring water purification systems, pump stations, and sewage treatment processes.

  • Building Automation: Can be applied for managing HVAC, lighting, security, and other systems in large buildings or industrial complexes.

  • Automotive: In automotive manufacturing, controlling production lines, robotic systems, and material handling processes.

Conclusion

The COOPER P3798102-00010 CN-UIM2 PLC module is a highly flexible, robust, and reliable I/O solution for industrial automation. With its ability to handle both digital and analog signals, multiple communication protocols, and seamless integration with COOPER Automation Systems, it is an excellent choice for diverse industrial applications. Whether you are working in manufacturing, energy, water treatment, or process control, the CN-UIM2 module can provide the performance, scalability, and real-time control needed for modern industrial systems.

For further information, pricing, or technical support, feel free to contact Shanxi Runsheng Import & Export Co., Ltd., and we’ll assist you in choosing the right solution for your needs. ASR-1001X-20G-K9 PLC
