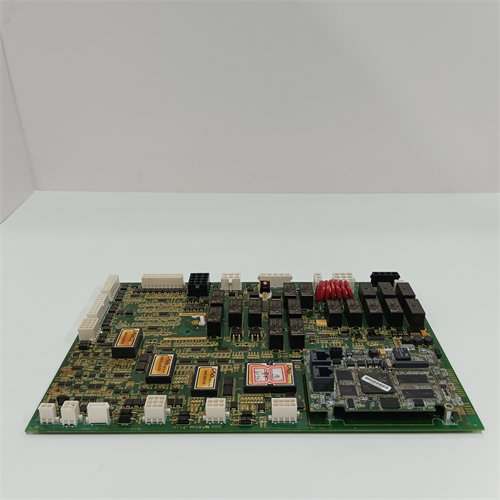

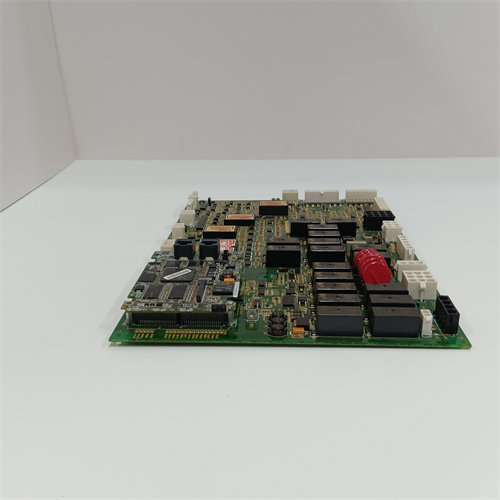

The GE DS200FCSAG2A is a Current Sensing Interface Board for the Mark V Speedtronic turbine control system and is also used in the LS2100 Static Excitation System. This board is a critical feedback component that measures the current flowing through a circuit and converts that measurement into a signal the main control processor can use for both control and protection.
Technical Breakdown 🧠
The part number provides key insights into the board’s function and architecture:
FCSA (Current Sensing Interface): This is the core function. The board non-intrusively measures electrical current in high-power circuits, often using current transformers (CTs) to provide a safe, isolated interface. It then conditions and scales this signal into a usable format for the main control system.
G2A Revision: The “G2A” revision indicates a specific version of the board. While the fundamental function remains consistent with earlier versions like the G1A, revisions typically include minor hardware updates, component changes, or bug fixes for improved performance and reliability.
System Context: This board operates within a closed-loop feedback system. It provides the real-time current data that the main processor needs to:
Control: Make precise adjustments to maintain a desired output, such as regulating the torque of a motor or the excitation of a generator.
Protect: Detect abnormal current levels (e.g., overcurrent or short circuits) and trigger protective measures to prevent damage to expensive plant equipment.
Applications 🏭
The DS200FCSAG2A is a vital component in power generation and high-power industrial applications, including:
Turbine Control: Providing feedback on currents to the Mark V system for control and protection logic.
Static Starters (LCI): Monitoring current in the power bridge of an LCI (Load Commutated Inverter) system during the static starting of a gas turbine.
Excitation Systems: Serving as a feedback card for the LS2100 system to help regulate generator voltage and reactive power.
