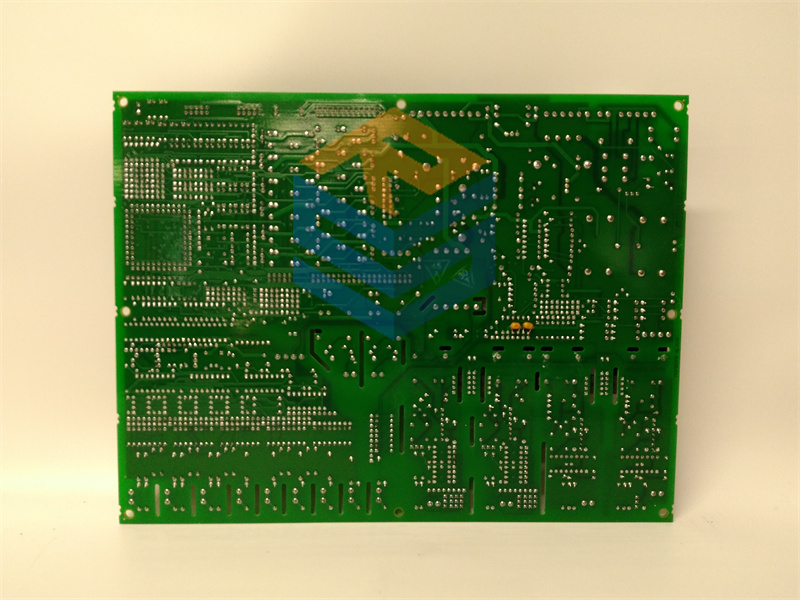

GE DS3820RPSA MKIV, Servo Module

الوصف

The GE DS3820RPSA is a Servo Module for the Mark IV Speedtronic turbine control system. It provides the crucial closed-loop control functionality for an electro-hydraulic servo valve, precisely managing the position of a turbine’s fuel, steam, or other critical control valves.

Technical Breakdown 🧠

This module is a key component of the turbine’s control system, responsible for high-precision, closed-loop actuation.

• Closed-Loop Control: The DS3820RPSA operates on the principle of closed-loop control. It receives a digital command signal (a “setpoint”) from the main Mark IV processor, which represents the desired position of a valve. The module then sends an analog output signal to the servo valve, causing it to move. Simultaneously, it reads a feedback signal from a position sensor, such as a Linear Variable Differential Transformer (LVDT). The module continuously compares the command setpoint to the actual feedback and adjusts its output to the servo valve to eliminate any position error. This continuous correction ensures high accuracy and responsiveness.
• Signal Interface: The board provides the necessary electrical interface for the servo valve. It contains the power amplifiers to drive the valve’s coil and the conditioning circuitry to accurately read the analog feedback signal from the LVDT.
• High-Speed Actuation: The responsiveness of this module is vital for turbine stability. The board’s high-speed processing ensures that any changes in speed or load are immediately compensated for by precise adjustments to the control valves.

Applications 🏭

The DS3820RPSA is a fundamental component in Mark IV control panels to:

• Control Fuel Valves: Manages the flow of natural gas or liquid fuel to the combustion system.
• Regulate Steam Valves: Controls the flow of steam to a steam turbine.
• Position Governor Valves: Precisely controls the inlet valves to maintain turbine speed and load.
