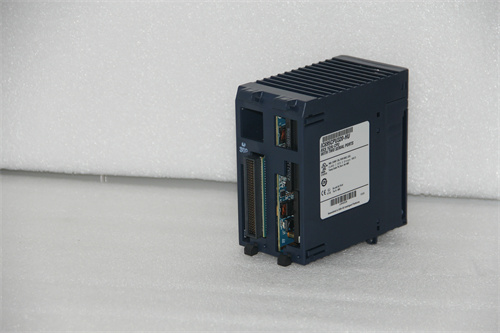

GE IC695ALG808 Isolated Analog Output module

الوصف

The GE IC695ALG808 is an isolated analog output module for the PACSystems RX3i series of Programmable Logic Controllers (PLCs), now part of Emerson Automation. It is used to convert digital commands from the PLC into analog signals that control field devices in industrial applications.

Key Features and Specifications

• Isolated Channels: A key feature of the IC695ALG808 is its 4 isolated output channels. The isolation is both channel-to-channel and channel-to-backplane, which is critical for protecting the system from ground loops and electrical noise.
• Output Types: The module is a universal output device, and each channel can be independently configured to output either:
  • Current: 0-20mA or 4-20mA.
  • Voltage: 0-10V or +/-10V.
• High Resolution: The module has a high-resolution 16-bit Digital-to-Analog Converter (DAC), providing very precise and stable control signals.
• Software Configuration: All settings, including output type, range, and scaling, are configured using the Proficy Machine Edition software. This eliminates the need for physical jumpers or switches.
• Built-in Diagnostics: The module provides on-board diagnostic features, such as open-circuit detection for current outputs and reporting of over-range conditions, which simplifies troubleshooting.
• Hot Swap Capability: The IC695ALG808 supports hot insertion and extraction, allowing it to be replaced while the system is powered on, which minimizes downtime.

Applications

The IC695ALG808 is a crucial component in industrial automation and process control systems for a wide range of applications, including:

• Motor Speed Control: Providing a 0-10V or 4-20mA signal to a variable frequency drive (VFD) to control the speed of a motor.
• Valve and Damper Control: Sending an analog signal to a pneumatic or electro-hydraulic positioner to control the opening of a valve or damper.
• Process Control: Regulating pressure, flow, and temperature by controlling various final control elements.
• Robotics: Sending analog signals for precise motion control.
•
