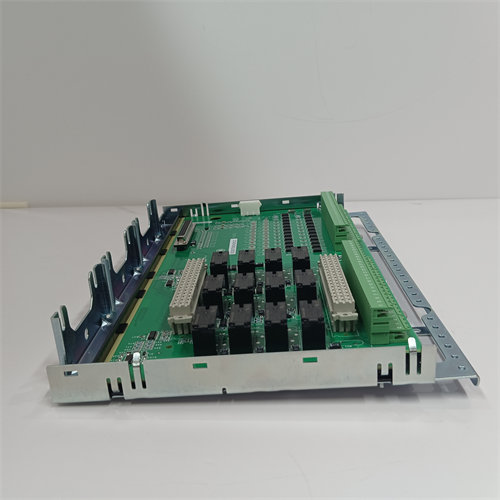

GE IS200ISBEH2ACC INSYNC BUS EXTENDER GENERAL ELECTRIC

GE IS200ISBEH2ACC INSYNC BUS EXTENDER GENERAL ELECTRIC

The IS200ISBEH2ACC is crucial for TMR (Triple Modular Redundant) system architecture:

  • ISBus Extension: The main purpose is to provide a reliable interface for extending the physical length or branching capability of the high-speed, synchronous ISBus communication line. This bus is critical for ensuring real-time synchronization (InSync) between control modules (R, S, and T).

  • Signal Integrity: As an active extender, the board contains circuitry to recondition and amplify the ISBus signal. This maintains the precise timing and integrity essential for the TMR system’s voting logic over long distances.

  • Fiber-Optic Capability: The board is typically equipped with fiber-optic connectors (e.g., ST-type) which convert the electrical signal into an optical signal. This provides robust immunity to electrical noise (EMI) and is the method for achieving long-distance communication (e.g., between separate cabinets).

احصل على عرض أسعار
التصنيف:

الوصف

GE IS200ISBEH2ACC InSync Bus Extender Card in a previous turn.

Here is the information again:

The GE IS200ISBEH2ACC is an InSync Bus Extender Card (ISBE) manufactured by General Electric. It is used in high-reliability control systems, specifically the Mark VI Speedtronic Turbine Control System and the EX2100 Excitation System.

Its core function is to facilitate the physical expansion of the control system by extending the range and maintaining the integrity of the proprietary ISBus communication network.

⚙️ Core Function and Role

The IS200ISBEH2ACC is crucial for TMR (Triple Modular Redundant) system architecture:

  • ISBus Extension: The main purpose is to provide a reliable interface for extending the physical length or branching capability of the high-speed, synchronous ISBus communication line. This bus is critical for ensuring real-time synchronization (InSync) between control modules (R, S, and T).

  • Signal Integrity: As an active extender, the board contains circuitry to recondition and amplify the ISBus signal. This maintains the precise timing and integrity essential for the TMR system’s voting logic over long distances.

  • Fiber-Optic Capability: The board is typically equipped with fiber-optic connectors (e.g., ST-type) which convert the electrical signal into an optical signal. This provides robust immunity to electrical noise (EMI) and is the method for achieving long-distance communication (e.g., between separate cabinets).

  • Revision: The H2ACC suffix denotes a Hardware Group 2, Artwork Revision A design base, with CC representing specific assembly/manufacturing revisions.

🔎 Fiber Optic Distance

The presence of fiber-optic ports means the distance can be significantly extended, often utilizing:

  • Multi-Mode Fiber (MMF): Generally used for shorter, inter-cabinet runs, typically up to 300 to 550 meters.

  • Single-Mode Fiber (SMF): Capable of running for tens of kilometers (e.g., 10 km, 40 km, or more) for interconnecting facilities.

The final, certified maximum distance is always limited by the optical power budget required to ensure the signal arrives within the stringent time synchronization window of the TMR system.
