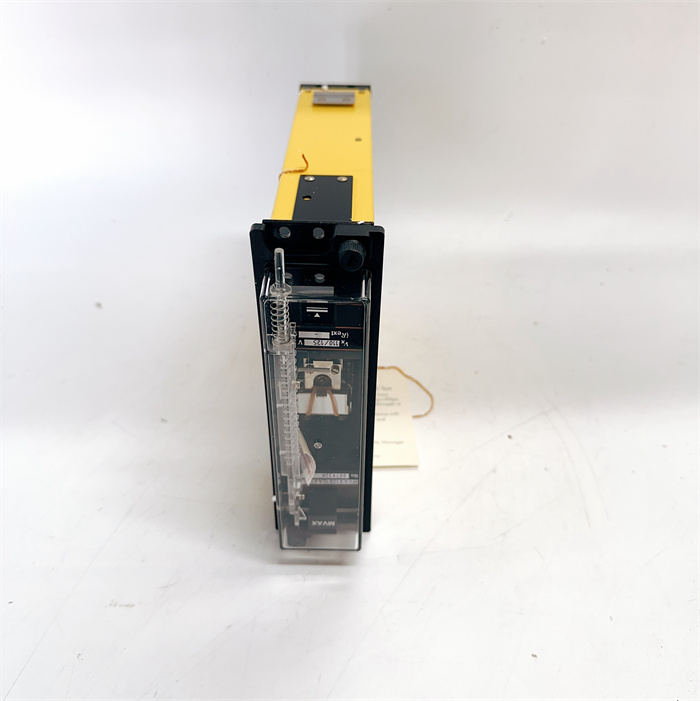

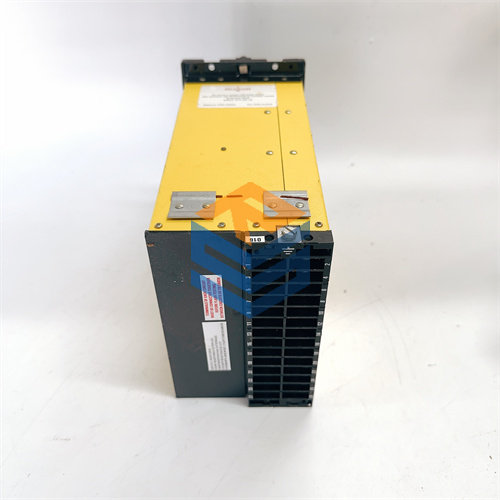

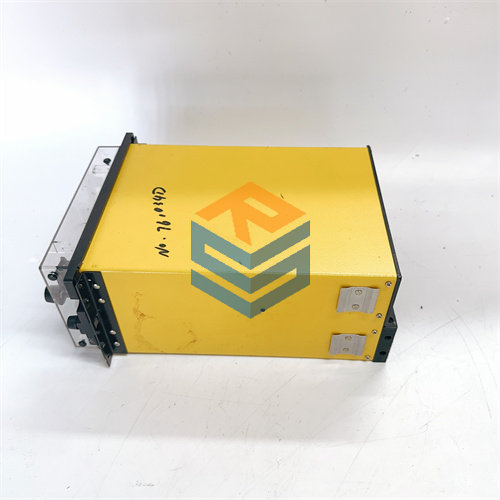

GEC ALSTHOM MCHN02D1AB0004A DCS PLC Module

Product Name:

GEC ALSTHOM MCHN02D1AB0004A – Digital I/O Module for DCS PLC Systems

Product Description:

The GEC ALSTHOM MCHN02D1AB0004A is a digital I/O module designed for use in Distributed Control Systems (DCS) and Programmable Logic Controller (PLC) applications. This module is used to connect and interface digital field devices such as sensors, actuators, switches, and relays to the control system. It provides critical functionality for industrial automation by enabling the system to monitor and control digital signals in real-time.

The MCHN02D1AB0004A module is specifically designed for high-reliability applications where continuous monitoring and control are required, such as in power plants, chemical processing, manufacturing, and oil & gas industries.

Key Features:

• Industrial-Grade Design: Built for reliability in demanding environments, capable of withstanding vibrations, shocks, and high temperatures.
• Flexible I/O Configuration: Supports various configurations to adapt to the specific needs of an industrial automation system.
• Modular Design: Easily integrated into existing systems, providing scalability and flexibility for complex automation processes.
• Enhanced Diagnostics: Provides diagnostic capabilities to simplify maintenance and reduce downtime.

Product Parameters & Specifications:

• Module Type: Digital I/O Module for DCS/PLC Systems

• Input Channels:

  • Typically, 16 digital input channels
  • Configurable for 24V DC or 110V AC/DC signals depending on the application needs.

• Output Channels:

  • Typically, 16 digital output channels
  • Configurable for 24V DC, 110V AC/DC outputs, or relays, to control field devices like actuators, alarms, or relays.

• Power Supply:

  • Operating Voltage: 24 V DC
  • Power Consumption: Approx. 10 W (depending on configuration and usage)

• Mounting Type:

  • DIN Rail Mountable for easy installation in control panels or industrial cabinets.
  • Compact design for space-saving applications in control panels.

• Environmental Specifications:

  • Operating Temperature Range: -20°C to +60°C (standard industrial operating conditions)
  • Storage Temperature Range: -40°C to +85°C (for safe storage in harsh conditions)
  • Humidity: 5% to 95% non-condensing
  • Vibration Resistance: Meets industrial standards for shock and vibration resistance.
  • Ingress Protection (IP Rating): Typically IP20 or similar, providing protection against dust and accidental contact (depending on the specific version).

• Communication Protocols:

  • Profibus or Modbus RTU (depending on configuration) for data exchange between the module and the central control system.
  • Compatible with GEC ALSTHOM’s proprietary DCS/PLC communication protocols.

• I/O Signal Characteristics:

  • Digital Inputs: The module supports discrete ON/OFF signals typically generated by sensors, limit switches, and push-button devices.
  • Digital Outputs: Controls devices such as actuators, solenoids, and alarms through relay or transistor-based outputs.

• Indicators:

  • LED Indicators for input/output status and system diagnostics (e.g., power, data transmission, error/fault detection).
  • Status LEDs to monitor the operation of input and output channels.

• Safety Features:

  • Overload Protection: Protection against overvoltage and overcurrent conditions to ensure module longevity and stability.
  • Short-Circuit Protection: Built-in safety features to prevent damage due to short circuits.

Applications:

• Process Automation: Used to monitor and control field devices in industries like power generation, chemical processing, and manufacturing.
• Industrial Monitoring Systems: For monitoring discrete signals from machines, sensors, and actuators in real-time.
• Remote Control: The module is ideal for industrial automation systems that require remote monitoring and control from a central control room or workstation.
• Safety and Alarm Systems: Monitors signals for safety-critical applications where fast and reliable responses are necessary, such as emergency shutdown systems.

Benefits:

• Scalability and Flexibility: Offers a highly scalable solution for expanding control systems, allowing easy addition of modules to meet growing demands.
• Reliability: Designed to operate in harsh industrial environments with a long operational lifespan, reducing the need for maintenance and minimizing downtime.
• Simplified Maintenance: Diagnostics LEDs and other built-in features make troubleshooting and maintenance more straightforward.
• Cost-Effective: The module is an economical solution for digital I/O integration in large and small-scale automation systems.

Conclusion:

The GEC ALSTHOM MCHN02D1AB0004A Digital I/O Module is a high-performance, reliable component for industrial automation systems, offering extensive configuration options and compatibility with a variety of field devices. Its design is optimized for tough industrial conditions, and it seamlessly integrates with GEC ALSTHOM’s DCS and PLC systems to provide robust and scalable solutions for process control and monitoring.
