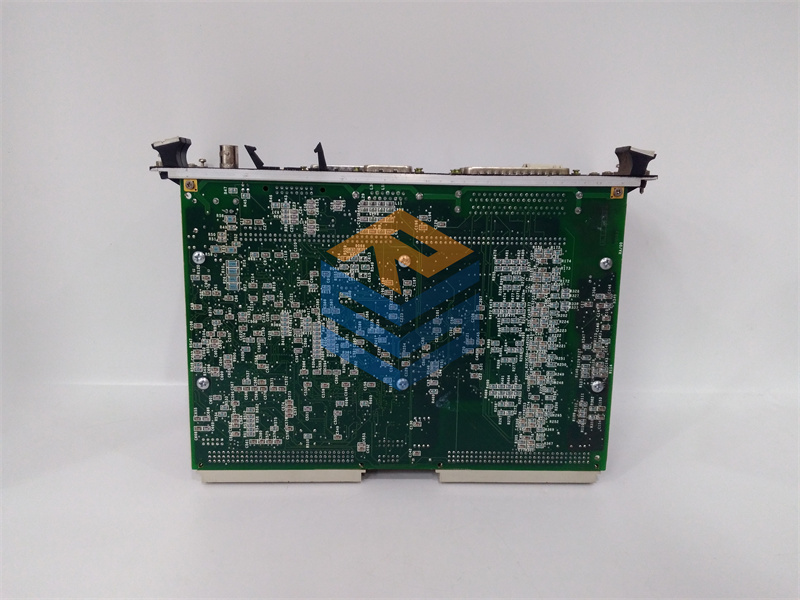

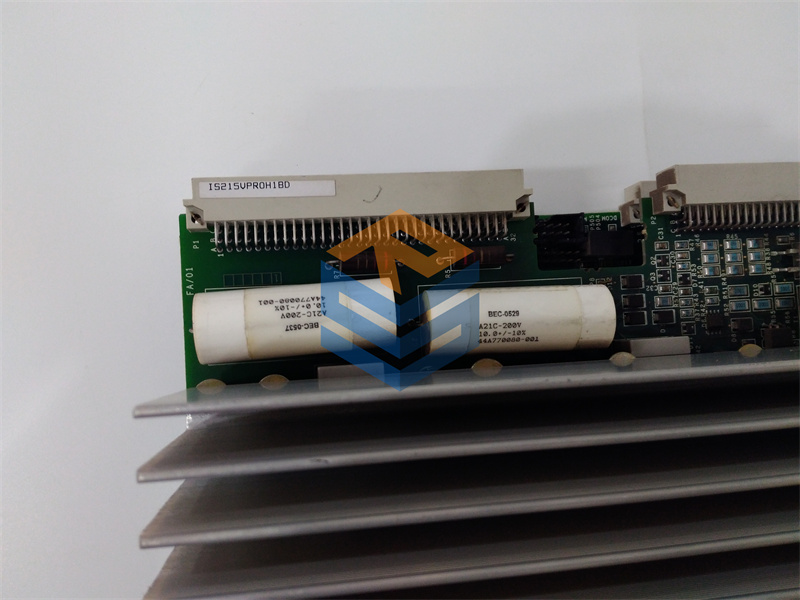

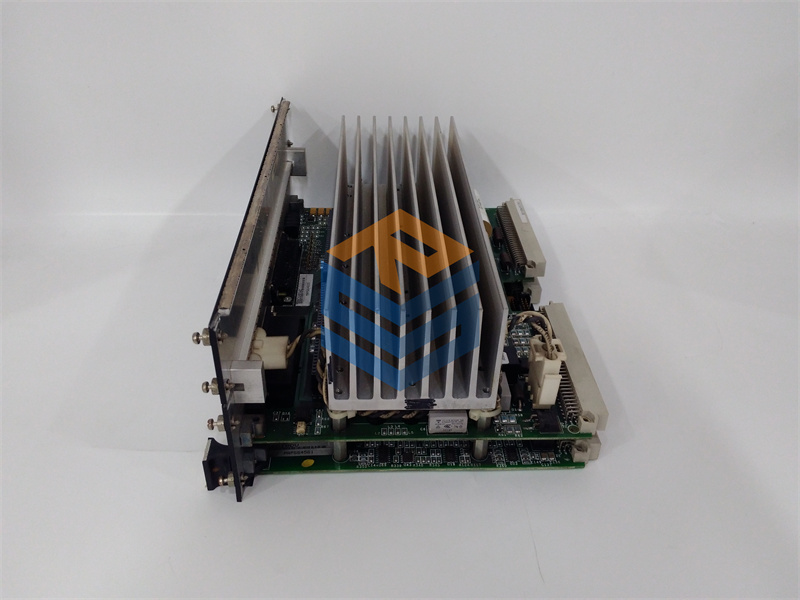

GE IS215VPROH1BD DCS PLC Module

1. Product Name:

GE IS215VPROH1BD DCS PLC Module

2. Product Description:

The GE IS215VPROH1BD is a Distributed Control System (DCS) PLC Module designed by General Electric (GE) for use in advanced process automation, industrial control, and monitoring systems. This module is part of the VersaMax™ family, offering high reliability, real-time control, and scalability for industries such as oil & gas, power generation, chemical, pharmaceutical, and water treatment.

The IS215VPROH1BD provides a powerful combination of PLC functionality and DCS capabilities, enabling seamless integration of high-speed digital and analog I/O, remote diagnostics, and safety systems. It is specifically engineered to handle mission-critical applications that demand continuous operation, redundancy, and advanced process control.

With an emphasis on modularity and ease of maintenance, the IS215VPROH1BD is designed for hot-swappable deployment, which minimizes downtime and ensures efficient system upgrades. The module offers flexible integration options through a variety of communication protocols, making it ideal for modern automation systems requiring real-time data handling, remote monitoring, and system interoperability.

3. Product Parameters and Specifications:

Model Number:

• GE IS215VPROH1BD

Product Type:

• DCS PLC Control Module

Manufacturer:

• General Electric (GE)

Control System Compatibility:

• Compatible with VersaMax™ PLC and Proficy™ Process Systems.

Physical and Mechanical Characteristics:

• Form Factor: Rack-mounted module designed to fit in a VersaMax™ rack system.
• Dimensions: Approx. 5.75 x 12.0 x 6.5 inches (varies based on configuration).
• Weight: Approx. 1.5 to 2.5 kg, depending on configuration.
• Mounting: Typically rack-mountable in VersaMax and other compatible racks.
• Cooling: Passive cooling system, ensuring reliable operation under industrial conditions.
• Power Supply: Operates with 24V DC for consistent and reliable operation in industrial environments.
• Rack Compatibility: Compatible with VersaMax and other GE PLC racks.

Operating Conditions:

• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Storage Temperature: -40°C to 85°C.
• Relative Humidity: 5% to 95% (non-condensing).
• Vibration Resistance: Designed to withstand moderate industrial vibration.
• Shock Resistance: Resilient to shock during installation and operation.

Key Features:

• High-Speed Processing: Provides real-time processing for critical control tasks with low latency.
• Hot-Swappable: Modules can be replaced or upgraded without shutting down the system, reducing system downtime.
• Redundant Power and Communication: Built-in redundant power supplies and communication paths for high availability and fault tolerance.
• Advanced Diagnostics: Includes detailed diagnostic capabilities for quick fault detection and resolution.
• Flexible I/O Configuration: Can be customized with different digital, analog, and specialized I/O modules.
• Communication Support: Includes Ethernet/IP, Modbus TCP, Profibus, and HART communication protocols for seamless integration.
• Modular Design: Facilitates easy expansion and integration into larger automation systems.
• Remote Diagnostics and Control: Allows for remote troubleshooting, monitoring, and system adjustments.
• Safety Integration: Compatible with SIL2 and SIL3 safety applications, meeting stringent safety standards.

Communication and Protocols:

• Ethernet/IP: Industry-standard for high-speed communication in industrial networks.
• Modbus TCP: Enables communication with third-party devices.
• Profibus: Commonly used for high-speed data exchange in industrial environments.
• HART: For field device communication and process control.
• Dual Network Interface: Supports redundant communication paths for fault tolerance and system reliability.

I/O Capabilities:

• Digital I/O: Supports discrete input and output such as sensors, relays, and switches.
• Analog I/O: Handles continuous signals from devices such as temperature, pressure, flow, and level sensors.
• Modular I/O Configuration: Users can configure the system to meet specific application needs by adding various I/O modules.
• Process Control I/O: Optimized for real-time process control, ensuring precision and accuracy.

4. Safety and Compliance:

• Safety Integrity Level (SIL): The module supports applications that require SIL2 and SIL3 compliance, suitable for critical safety processes.
• Certifications: Meets major industry standards including UL, CE, and CSA for safety and performance.
• Environmental Compliance: Complies with RoHS and WEEE environmental standards, ensuring sustainable operation.

5. Applications:

The GE IS215VPROH1BD DCS PLC Module is used across various industries for mission-critical automation and control tasks:

1. Oil & Gas:

   • Production and refining processes requiring high reliability, safety, and real-time control.
   • Pipeline monitoring, flow control, and exploration systems.

2. Power Generation:

   • Turbine control, boiler management, and grid integration for both conventional and renewable energy sources.
   • Energy distribution, monitoring, and safety systems.

3. Chemical Processing:

   • Batch and continuous process control.
   • Regulatory compliance, quality control, and safety management.

4. Pharmaceuticals:

   • Sterilization processes, temperature control, and process validation for Good Manufacturing Practices (GMP).
   • Batch control and production optimization.

5. Water Treatment:

   • Water quality monitoring, chemical dosing, and real-time system control for municipal and industrial water systems.
   • Flow control and wastewater treatment processes.

6. Food & Beverage:

   • Production line automation, mixing, and packaging.
   • Quality control, batch process management, and inventory tracking.

6. Conclusion:

The GE IS215VPROH1BD DCS PLC Module is a versatile, reliable, and high-performance component for industrial process control and automation systems. With its advanced modular design, redundancy, hot-swappable capability, and real-time control features, it is ideal for industries with demanding operational requirements. Whether for oil and gas, chemical processing, or power generation, the IS215VPROH1BD module offers the flexibility, scalability, and safety necessary for ensuring continuous and efficient operation in mission-critical applications. Its comprehensive communication options and advanced diagnostics make it a valuable tool for improving system performance, minimizing downtime, and optimizing the overall control process. ABB GR2394100R1210 PLC DCS
