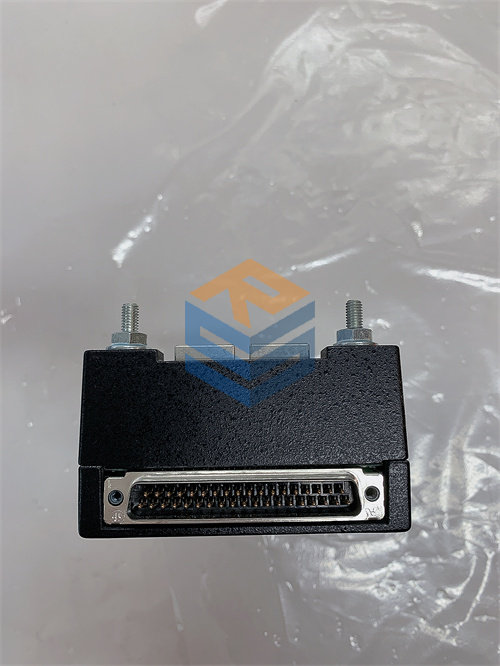

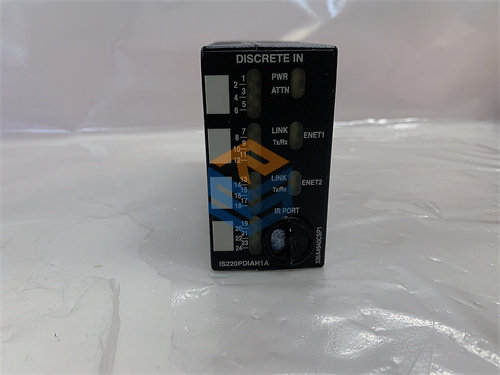

GE IS220PDIAH1A 336A4940CSP1 PLC Module

Product Name

GE IS220PDIAH1A 336A4940CSP1 PLC Module

Product Description

The GE IS220PDIAH1A 336A4940CSP1 is a Discrete Input/Output (DIO) module designed for integration within GE’s Mark VIe control systems, typically used in complex industrial automation, process control, and power generation systems. The module provides high-performance capabilities for controlling and monitoring a variety of industrial processes with real-time accuracy and reliability.

This module is known for its rugged design, fault-tolerant operation, and ease of integration with other GE Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC). It supports high-density digital input and output functions, making it highly suitable for complex applications in industries such as energy, oil and gas, and manufacturing.

Product Parameters & Specifications

• Product Name: GE IS220PDIAH1A 336A4940CSP1 PLC Module

• Brand: General Electric (GE)

• Model Number: IS220PDIAH1A / 336A4940CSP1

• Module Type: Discrete Input/Output (DIO) Module

• Power Supply:

  • 24V DC nominal
  • Operating Voltage: 18V DC to 30V DC

• Input Type:

  • 24V DC Digital Inputs
  • 16 Inputs per channel, 1 to 3 Input channels supported

• Output Type:

  • 24V DC Digital Outputs
  • 16 Outputs per channel, 1 to 3 Output channels supported

• I/O Configuration:

  • 16 Digital Inputs (24V DC)
  • 16 Digital Outputs (24V DC)

• Signal Types:

  • Digital signals for controlling discrete devices, such as relays, sensors, and actuators

• Environmental Conditions:

  • Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Humidity: 5% to 95% Non-condensing

• Mounting:

  • Rack-Mountable
  • Standard GE Mark VIe rack assembly compatibility

• Communication Protocols:

  • GE’s Mark VIe Communication Bus
  • Modbus (when supported by system)

• Diagnostics:

  • LED Indicators for Input and Output status, operational health, and fault detection

• Dimension (L x W x H):

  • Approx. 2.9″ x 8.4″ x 9.8″ (73.7 mm x 213.4 mm x 249.9 mm)

• Weight:

  • Approx. 2 kg (4.4 lbs)

• Compatibility:

  • Designed for integration with GE Mark VIe DCS systems
  • Compatible with other GE industrial control products

• Certification:

  • CE, UL, CSA, and other applicable industry certifications

Key Features

1. High-Density I/O:
   The IS220PDIAH1A 336A4940CSP1 module provides dense I/O configurations, offering 16 discrete inputs and outputs per channel, which is ideal for applications requiring multiple sensors and actuators in a compact form.

2. Real-Time Control:
   With its precise and high-speed digital I/O functions, it enables real-time control and monitoring in demanding industrial environments.

3. Industrial-Grade Reliability:
   Built to withstand harsh environments, this module is engineered to deliver reliability in critical applications such as power generation and large industrial systems.

4. Easy Diagnostics and Maintenance:
   The module is equipped with clear diagnostic indicators, helping operators to quickly troubleshoot issues and ensure system uptime.

5. Seamless Integration:
   Fully compatible with the GE Mark VIe platform, ensuring smooth communication and integration with existing systems without the need for extensive reconfiguration.

6. Fault-Tolerant and Redundant:
   The system’s architecture supports fault-tolerant designs, enhancing operational continuity and reducing the risk of system failure in high-stakes environments.

Applications

The GE IS220PDIAH1A 336A4940CSP1 PLC module is used across a wide range of industries, particularly in sectors requiring high reliability, real-time data, and robust control systems:

• Power Generation: Managing and controlling turbines, generators, and auxiliary equipment within power plants.
• Oil & Gas: Supervising and controlling critical infrastructure in oil rigs, refineries, and gas processing plants.
• Industrial Automation: Supervising assembly lines, robotic systems, and production processes.
• Chemical Processing: Controlling discrete processes such as pumps, mixers, and sensors.
• Water and Wastewater Treatment: Managing processes in water purification, sewage treatment, and distribution systems.

Conclusion

The GE IS220PDIAH1A 336A4940CSP1 is a versatile, high-performance PLC module designed for industrial control systems that require reliability, scalability, and precision. Its high-density I/O configuration, compatibility with GE’s Mark VIe platform, and robust environmental tolerance make it an excellent choice for demanding applications in power, oil & gas, manufacturing, and process industries.

If you’re considering this product for your systems, you can expect to benefit from its seamless integration into GE’s control systems, real-time data handling, and high dependability in mission-critical operations.

For more details, sales inquiries, and support, please reach out to Shanxi Runsheng Import & Export Co., Ltd., and we’ll assist you with your needs. LXD63B600 DCS
