GE+SR469-P5-HI-A20-H

Product Name:

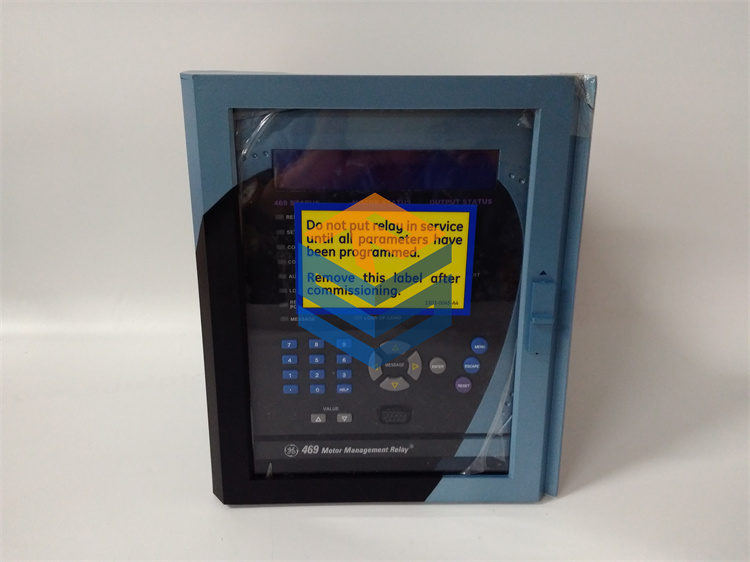

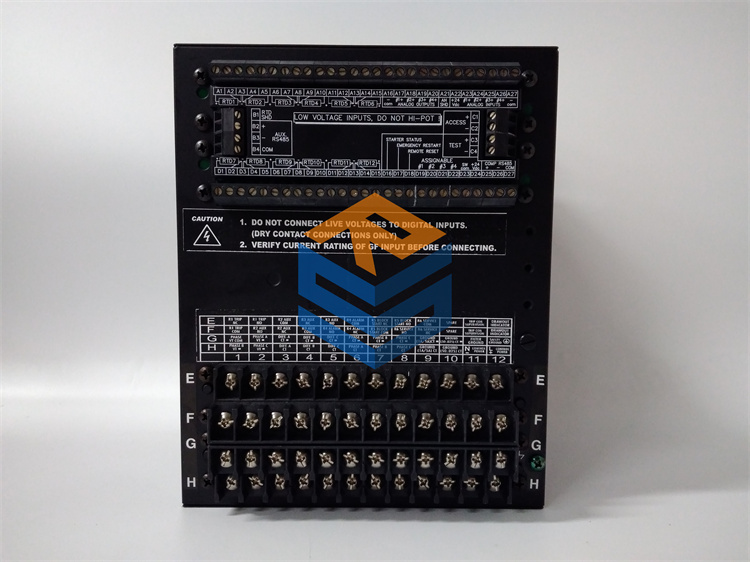

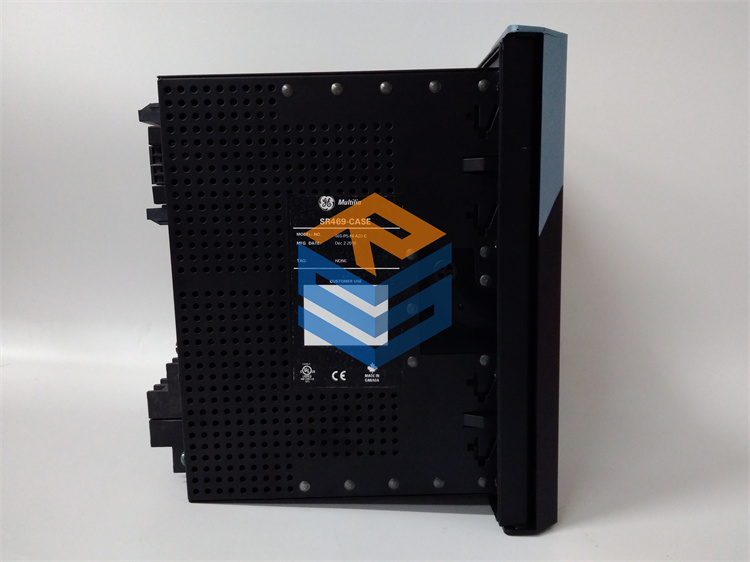

GE SR469-P5-HI-A20-H Protective Relay

Product Description:

The GE SR469-P5-HI-A20-H is a digital protective relay used for motor protection, overcurrent protection, and fault detection in electrical systems. This relay offers advanced protection features for motors and other machinery in industrial environments, particularly in the power generation, oil and gas, mining, and chemical processing industries. The relay has customizable settings for protection, monitoring, and diagnostics, designed to reduce the risk of system failures and improve overall system reliability.

The SR469-P5-HI-A20-H relay is capable of operating under harsh conditions, providing real-time data and actionable insights for preventative maintenance. It also offers communication options, allowing for integration into broader industrial control and monitoring systems. The relay provides protective functions including overcurrent, under-voltage, over-voltage, earth fault, and ground fault protection, which are essential for preventing damage to electrical circuits and equipment.

Product Parameters:

  • Model Number: SR469-P5-HI-A20-H
  • Product Type: Digital Motor and Protection Relay
  • Brand: General Electric (GE)
  • Series: SR469
  • Primary Application: Motor protection, electrical protection, fault detection
  • Mounting Type: DIN rail or panel mount
  • Protection Features: Overcurrent, earth fault, ground fault, under/over-voltage protection
  • Communication Protocols: Supports communication via Modbus, Ethernet, and other industrial protocols for data transfer and integration
  • Power Supply: Typically operates with 24V DC or 110/240V AC, depending on the application
  • Input Voltage Range: 20V to 270V AC/DC
  • Operating Temperature Range: -40°C to +70°C
احصل على عرض أسعار
التصنيف:

الوصف

The GE SR469-P5-HI-A20-H is a model within the General Electric (GE) SR469 series of digital protective relays. This specific unit is designed for protecting and controlling electrical circuits, particularly in industrial applications. These relays are commonly used in power generation, industrial automation, and heavy machinery operations to protect equipment from faults like overcurrent, short circuits, and other electrical failures.

Here’s a detailed overview of the product:

Product Name:

GE SR469-P5-HI-A20-H Protective Relay

Product Description:

The GE SR469-P5-HI-A20-H is a digital protective relay used for motor protection, overcurrent protection, and fault detection in electrical systems. This relay offers advanced protection features for motors and other machinery in industrial environments, particularly in the power generation, oil and gas, mining, and chemical processing industries. The relay has customizable settings for protection, monitoring, and diagnostics, designed to reduce the risk of system failures and improve overall system reliability.

The SR469-P5-HI-A20-H relay is capable of operating under harsh conditions, providing real-time data and actionable insights for preventative maintenance. It also offers communication options, allowing for integration into broader industrial control and monitoring systems. The relay provides protective functions including overcurrent, under-voltage, over-voltage, earth fault, and ground fault protection, which are essential for preventing damage to electrical circuits and equipment.

Product Parameters:

  • Model Number: SR469-P5-HI-A20-H
  • Product Type: Digital Motor and Protection Relay
  • Brand: General Electric (GE)
  • Series: SR469
  • Primary Application: Motor protection, electrical protection, fault detection
  • Mounting Type: DIN rail or panel mount
  • Protection Features: Overcurrent, earth fault, ground fault, under/over-voltage protection
  • Communication Protocols: Supports communication via Modbus, Ethernet, and other industrial protocols for data transfer and integration
  • Power Supply: Typically operates with 24V DC or 110/240V AC, depending on the application
  • Input Voltage Range: 20V to 270V AC/DC
  • Operating Temperature Range: -40°C to +70°C

Product Specifications:

Specification Details
Model Number SR469-P5-HI-A20-H
Brand General Electric (GE)
Type Digital Protective Relay for motor protection and electrical fault detection
Primary Application Protection of motors, electrical circuits, and heavy industrial equipment
Functionality Offers motor protection, overcurrent, earth fault, ground fault, and under/over-voltage protection
Input Voltage Range 20V to 270V AC/DC
Power Supply 24V DC or 110/240V AC
Mounting DIN rail or panel mount
Communication Protocols Supports Modbus RTU, Modbus TCP, Ethernet, IEC 61850 for advanced communication capabilities
Temperature Range -40°C to +70°C
Relay Output Typically includes relay outputs for trip, alarm, and status signals
Current Input Typically supports 5A, 1A, and 0.5A current inputs for protection purposes
Relay Output Contacts Typically includes **Form
