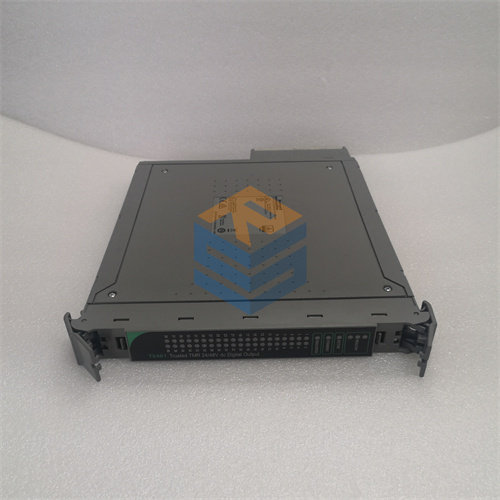

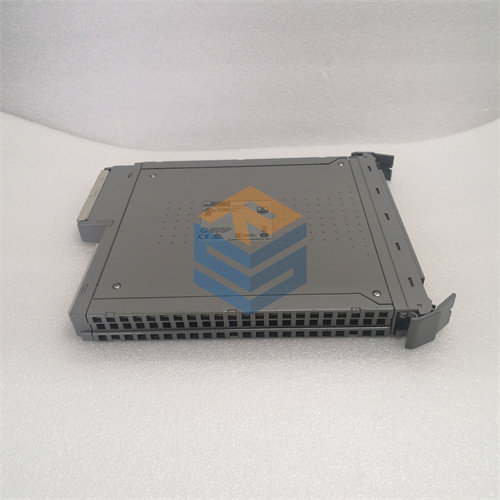

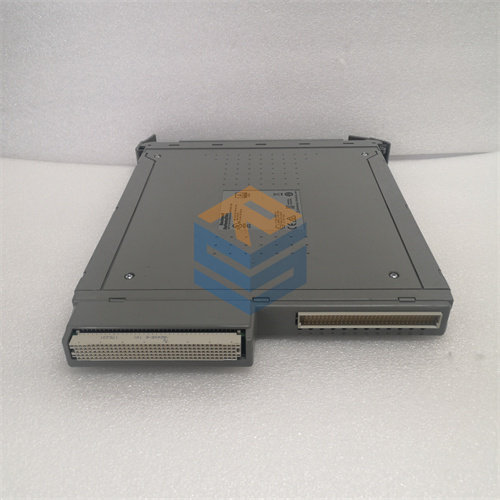

The ICS TRIPLEX T8461C is a Trusted Triple Modular Redundant (TMR) Digital Output (DO) Module for the ICS Triplex Trusted safety system, which is now part of Rockwell Automation (Allen-Bradley). The “C” in “T8461C” often indicates a conformal coating for enhanced environmental protection, making it suitable for harsher industrial conditions.
This module is a cornerstone for critical safety applications, providing highly reliable and fault-tolerant control of discrete (on/off) field devices. Its TMR architecture ensures that commands are executed with unwavering precision and integrity, even in the event of internal component failures, meeting the highest Safety Integrity Levels (up to SIL 3) and Performance Levels (PL e, Cat. 4).
Top 10 SEO-Optimized Headings:
- ICS TRIPLEX T8461C: Trusted TMR Digital Output Module for SIL 3.
- Unbreakable Control: The ICS TRIPLEX T8461C for Critical Safety Actuation.
- ICS TRIPLEX T8461C: Fault-Tolerant Outputs in Demanding Environments.
- High-Density Actuation: Leveraging the ICS TRIPLEX T8461C for ESD/F&G.
- Why Choose ICS TRIPLEX T8461C: Maximizing Uptime with Conformal Coating.
- ICS TRIPLEX T8461C: The Core of Emergency Shutdown & Fire & Gas Control.
- 40 Channels, 24/48VDC: Key Features of the ICS TRIPLEX T8461C DO Module.
- ICS TRIPLEX T8461C: Essential for Oil & Gas, Power, and Chemical Plant Safety.
- Optimize Your Safety System: The Versatility of the ICS TRIPLEX T8461C.
- Industrial Control: Ensuring Integrity with the ICS TRIPLEX T8461C Digital Output.
Brief Product Description (for Detail Pages and Search Results):
The ICS TRIPLEX T8461C is a 40-channel, Triple Modular Redundant (TMR) Digital Output module for the ICS Triplex Trusted safety system. It delivers exceptionally reliable and fault-tolerant control of discrete field devices, operating across a wide range of 24 VDC to 48 VDC. Featuring a fully triplicated design with per-channel automatic overcurrent protection (eliminating external fuses), selectable line monitoring, and comprehensive diagnostics, the T8461C ensures maximum system availability and safe operation in safety-critical applications up to SIL 3. The “C” designation often implies conformal coating for enhanced environmental ruggedness.
- Product Type: Digital Output (DO) Module
- Model Number: T8461C
- Channels: 40 Triple Modular Redundant (TMR) output channels
- Voltage: 24/48 VDC nominal (Output field voltage range: 18 to 60 VDC)
- Key Feature: Triple Modular Redundancy (TMR) for each channel, Automatic Overcurrent Protection (no external fuses), Selectable Line Monitoring, Opto/Galvanic Isolation, Conformal Coated (implied by ‘C’).
- Safety Integrity Level (SIL): TÜV Certified IEC 61508 SIL 3, PL e (Cat. 4).
- Compatibility: ICS Triplex Trusted T8000 Series controllers/systems.
- Applications: Emergency Shutdown Systems (ESD), Fire & Gas (F&G) Systems, Burner Management Systems (BMS), critical process actuation in demanding industries.
Detailed Product Description:
In high-risk industrial environments, the ability to reliably actuate safety-critical devices like emergency shutdown valves, fire suppression systems, or motor trip circuits is paramount. The ICS TRIPLEX T8461C Digital Output Module is engineered precisely for this challenge within the ICS Triplex Trusted safety system. It’s not just a set of relays; it’s a meticulously designed, fault-tolerant component that ensures output commands from the safety controller are delivered with unwavering precision and integrity, even under adverse conditions or internal component failures. The “C” suffix in T8461C is often used to denote a conformal coating, which provides an extra layer of protection against harsh environmental factors like moisture, dust, and corrosive gases, further enhancing its reliability in challenging industrial settings.
From my experience in deploying complex safety systems, ensuring the output actuates when commanded, and only when commanded, is a critical layer of protection. The ICS TRIPLEX T8461C directly addresses this by building on the proven TMR architecture with features that specifically target output reliability. The automatic overcurrent protection and selectable line monitoring mean fewer external components, less wiring, and faster diagnostics if an issue arises in the field wiring or the device itself. This significantly reduces installation complexity, troubleshooting time, and most importantly, enhances the overall safety and availability of the system.
The Power of Triple Modular Redundancy (TMR) for Outputs:
The exceptional reliability of the ICS TRIPLEX T8461C stems from its Triple Modular Redundancy (TMR) architecture, applied comprehensively to each output channel:
- Triplicated Output Paths: For each of its 40 digital output channels, the T8461C has three independent, isolated output circuits. Each circuit is controlled by one of the three redundant processors (in a TMR controller).
- Internal Voting and Diagnosis: The module employs sophisticated internal voting logic and diagnostic tests throughout the output channels. This includes continuous measurements for current and voltage on each portion of the voted output.
- Fault Tolerance and Masking: This design ensures that the module continues to provide the correct output even if one or two of its internal output channels fail (“stuck on” or “stuck off” failures are detected). The voting mechanism ensures the correct state is presented to the field, effectively masking the fault and preventing spurious trips or failures to trip.
Advanced Features and Integrity Enhancements:
The ICS TRIPLEX T8461C offers a comprehensive set of features for maximum integrity and ease of maintenance:
- Wide Voltage Range (24/48 VDC): The module is versatile, operating with a system supply voltage of 20 to 32 VDC and capable of driving field devices with an output field voltage range of 18 to 60 VDC. This makes it compatible with a broad array of industrial actuators.
- 40 Output Channels in Power Groups: It provides 40 digital output channels, divided into 5 independent power groups, with 8 outputs each. This grouping allows for isolation and flexible power management.
- Automatic Overcurrent Protection (No External Fuses): A significant advantage, each output circuit has built-in electronic overcurrent protection. This eliminates the need for individual external fuses on the termination panel, simplifying wiring, reducing maintenance, and improving reliability.
- Selectable Line Monitoring: For critical outputs, per-channel line monitoring can be configured to detect common field wiring faults such as open circuits (broken wires) or short circuits to ground/power, typically by requiring an End-Of-Line (EOL) resistor network at the field device. This provides critical diagnostic coverage.
- Comprehensive Diagnostics and Self-Test: The module continuously performs extensive, automatic diagnostics on its internal components, output circuits, and field wiring (if line monitoring is enabled). Faults are quickly identified and signaled via front-panel LEDs and reported to the system.
- Opto/Galvanic Isolation Barrier: Provides robust 2500 V impulse withstand isolation between the field wiring and the module’s internal circuitry, protecting against electrical noise, transients, and ground loops.
- Onboard Sequence of Events (SOE) Reporting: Provides high-resolution (1 ms) time-stamped reporting of output state changes, invaluable for post-incident analysis, troubleshooting, and regulatory compliance.
- Hot Replacement Capability: The module is designed for hot replacement (hot-swapping) online, using dedicated Companion Slot or SmartSlot configurations. This allows for module replacement without interrupting the safety system’s operation.
- Conformal Coating (‘C’ suffix): Provides an additional layer of protection against environmental contaminants (humidity, corrosive gases, dust, vibration), increasing the module’s lifespan and reliability in harsh industrial conditions.
- TÜV Certified IEC 61508 SIL 3, PL e (Cat. 4): Certified to the highest safety integrity levels, confirming its suitability for the most critical industrial safety applications.
Technical Specifications (Typical):
| Parameter | Value |
|---|---|
| Product Type | Digital Output (DO) Module |
| Channels | 40 Triple Modular Redundant (TMR) Output Channels |
| Nominal System Voltage | 24 VDC (Range: 20 to 32 VDC) |
| Operational Output/Field Voltage Range | 18 to 60 VDC |
| Output Current Rating | 0.75 A per channel (continuous), 6 A per power group |
| Minimum On-State Load Current | 25 mA |
| Output Off-State Resistance (Effective Leakage) | 33 kΩ |
| Output Turn-On/Off Delay | 0.5 ms |
| Fault Tolerance | TMR per channel |
| Line Monitoring | Selectable per channel (Open/Short Circuit Detection) |
| Overcurrent Protection | Automatic, per channel (no external fuses required) |
| Isolation | 2500 V impulse withstand opto/galvanic isolation |
| SOE Resolution | 1 ms |
| Time-Stamp Accuracy | ±0.5 ms (typical) |
| Safety Certification | TÜV Certified IEC 61508 SIL 3, PL e (Cat. 4) |
| Conformal Coating | Yes (implied by ‘C’ suffix) |
| Hot-Swap Capability | Yes |
| Operating Temperature | -5°C to +60°C (23°F to 140°F) (Some versions support -40°C to +70°C) |
| Power Consumption | Approx. 18W (Field Supply at 24V, 0.75A/channel) + 22W (System Supply) |
| Dimensions (HxWxD) | 266 mm x 31 mm x 303 mm (10.5 in x 1.2 in x 12 in) |
| Weight | Approx. 1.285 kg (2.8 lbs) |
| Compatibility | ICS Triplex Trusted T8000 Series systems |
Applications:
The ICS TRIPLEX T8461C is deployed in the most critical safety applications across various heavy industries where highly reliable and fault-tolerant control of 24/48 VDC discrete devices is essential:
- Oil & Gas (Refineries, Offshore Platforms, Pipelines, LNG):
- Emergency Shutdown Systems (ESD): Actuating shutdown valves, emergency vents, and pumps to bring processes to a safe state.
- Fire & Gas (F&G) Systems: Activating alarms, sirens, and initiating deluge or fire suppression systems upon detection of hazards.
- Petrochemical and Chemical Plants:
- Managing safety interlocks for reactors, furnaces, and other process units.
- Controlling emergency isolation valves and warning indicators for hazardous materials.
- Power Generation (Fossil Fuel, Nuclear, Hydro):
- Burner Management Systems (BMS): Actuating fuel valves, igniters, and fan dampers for safe boiler startup, operation, and shutdown.
- Turbine trip systems, generator protection, and balance-of-plant safety interlocks.
- Mining and Metals:
- Safety interlocks for heavy machinery, conveyor belts, and ventilation systems in harsh environments.
- Pharmaceutical Manufacturing:
- Ensuring safe control of production lines, cleanroom access controls, and potentially hazardous chemical reactions.
Related Products and Systems:
The ICS TRIPLEX T8461C is a core component that works in concert with other elements of the ICS Triplex Trusted system and related control infrastructure:
- ICS Triplex Trusted Processors (e.g., T8110B, T8310C): These are the main processors that execute the safety logic and issue the output commands to the T8461C module.
- ICS Triplex Trusted Digital Input Modules (e.g., T8403): Used to acquire input signals from the field, which feed the safety logic.
- ICS Triplex Trusted Analog Input/Output Modules (e.g., T8480, TC-801): Other types of I/O modules handling continuous signals within the same system.
- ICS Triplex Trusted Chassis/Racks: The physical enclosures that house the T8461C and other Trusted modules.
- ICS Triplex Trusted Field Termination Assemblies (FTAs) / Termination Units: External panels that connect the field wiring from the actuators to the T8461C module. These are crucial for proper wiring, especially for features like line monitoring where EOL resistors are used.
- Trusted Application Software (TAS): The engineering workstation software used to configure, program, and diagnose the ICS Triplex Trusted system, including the T8461C.
- Rockwell Automation (Allen-Bradley) Platforms: As ICS Triplex is now part of Rockwell, there’s integration and compatibility with their broader industrial automation portfolio.
- Discrete Actuators: The actual field devices that the T8461C controls, such as solenoid valves, motor starters, relays, contactors, annunciator lamps, and alarm horns.
