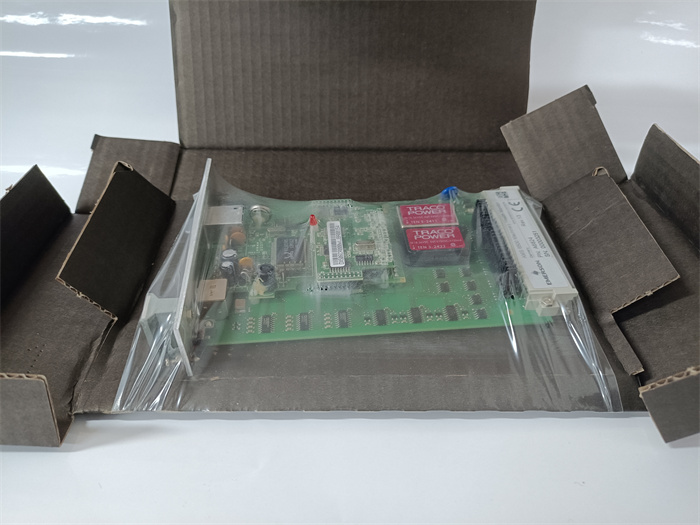

KEBA K2-200 AM280/A Analog Output Input
⁦KEBA K2-200 AM280/A Analog Output Input⁩ - الصورة ⁦2⁩

KEBA K2-200 AM280/A Analog Output Input

The KEBA K2-200 AM280/A Analog Output/Input DCS PLC Module is a highly advanced and versatile module designed for use in industrial automation systems. It is part of the KEBA K2 series of modules, which provide high-performance analog I/O solutions for controlling and monitoring complex processes in automated manufacturing, robotics, and production systems. This module supports both analog input and output channels, making it highly flexible for a variety of industrial applications.

The KEBA K2-200 AM280/A is ideal for applications where precise measurement, control, and regulation of analog signals are required. The module is designed to work seamlessly with KEBA’s distributed control systems (DCS) and programmable logic controllers (PLC), providing real-time feedback and control for efficient process automation.

With its high-precision signal processing capabilities, the KEBA K2-200 AM280/A is used for monitoring and controlling various parameters such as temperature, pressure, flow, and speed, among others. Its integration with DCS and PLC systems allows operators to control both analog inputs and outputs, ensuring that complex systems are running efficiently and accurately.

احصل على عرض أسعار
التصنيف:

الوصف

KEBA K2-200 AM280/A Analog Output/Input DCS PLC Module

Product Description

The KEBA K2-200 AM280/A Analog Output/Input DCS PLC Module is a highly advanced and versatile module designed for use in industrial automation systems. It is part of the KEBA K2 series of modules, which provide high-performance analog I/O solutions for controlling and monitoring complex processes in automated manufacturing, robotics, and production systems. This module supports both analog input and output channels, making it highly flexible for a variety of industrial applications.

The KEBA K2-200 AM280/A is ideal for applications where precise measurement, control, and regulation of analog signals are required. The module is designed to work seamlessly with KEBA’s distributed control systems (DCS) and programmable logic controllers (PLC), providing real-time feedback and control for efficient process automation.

With its high-precision signal processing capabilities, the KEBA K2-200 AM280/A is used for monitoring and controlling various parameters such as temperature, pressure, flow, and speed, among others. Its integration with DCS and PLC systems allows operators to control both analog inputs and outputs, ensuring that complex systems are running efficiently and accurately.

Product Parameters & Specifications

  • Model: KEBA K2-200 AM280/A Analog Output/Input DCS PLC Module

  • Input Channels:

    • Analog Input Type: Voltage or Current (configurable)
    • Number of Channels: 8 analog input channels
    • Input Voltage Range: ±10 V, 0-10 V, ±5 V (configurable)
    • Input Current Range: ±20 mA, 4-20 mA (configurable)
    • Resolution: 16-bit (for both input and output)
    • Input Impedance: > 1 MΩ
    • Accuracy: ±0.1% of full scale
    • Sampling Rate: Up to 1000 samples/second per channel

  • Output Channels:

    • Analog Output Type: Voltage or Current (configurable)
    • Number of Channels: 8 analog output channels
    • Output Voltage Range: 0-10 V, ±10 V (configurable)
    • Output Current Range: 0-20 mA, 4-20 mA (configurable)
    • Resolution: 16-bit (for both input and output)
    • Output Load Resistance: 10 kΩ minimum
    • Output Accuracy: ±0.1% of full scale

  • Communication:

    • Interface: CANopen, Ethernet/IP, Modbus RTU (depending on the specific configuration)
    • Communication Protocol: Supports both real-time and batch data communication with other DCS and PLC systems
    • Power Supply: 24 V DC (standard industrial voltage)
    • Power Consumption: Approx. 3 W (depending on load)

  • General Specifications:

    • Operating Temperature Range: -10°C to +60°C
    • Storage Temperature Range: -25°C to +70°C
    • Relative Humidity: 5% to 95%, non-condensing
    • Dimensions: Compact design, suitable for DIN rail mounting
    • Weight: Approximately 200 g
    • Mounting: DIN rail or panel mounting options
    • Isolation: Galvanic isolation between inputs and outputs for safety and signal integrity

  • Environmental Ratings:

    • Ingress Protection (IP): IP20 (suitable for indoor use)
    • Shock Resistance: 10-55 Hz, 2.0 mm peak-to-peak
    • Vibration Resistance: 10-55 Hz, 1.0 g (operating)

Key Features & Advantages

  1. High Precision: With a 16-bit resolution for both input and output channels, the KEBA K2-200 AM280/A ensures high accuracy in signal conversion and reliable control for industrial processes.

  2. Flexible Configuration: The module offers configurable input and output ranges (voltage and current), allowing it to be adapted to a variety of industrial applications and sensor types.

  3. High Channel Density: The module supports up to 8 input channels and 8 output channels, making it a highly efficient choice for systems that require a large number of analog I/O points.

  4. Galvanic Isolation: The module features galvanic isolation between input and output channels, protecting the system from electrical noise and ensuring safe and stable operation.

  5. Wide Temperature Range: It is capable of operating in harsh industrial environments, with a wide temperature range of -10°C to +60°C, allowing it to be deployed in a variety of industrial conditions.

  6. Reliable Communication: With support for multiple communication protocols (such as CANopen, Modbus RTU, Ethernet/IP), the KEBA K2-200 AM280/A ensures seamless integration with other devices in a distributed control system.

  7. Compact and Robust Design: Its compact form factor and ability to be mounted on DIN rails make it a convenient choice for space-constrained environments, while its rugged build ensures durability in industrial settings.

Applications and Use Cases

The KEBA K2-200 AM280/A Analog Output/Input DCS PLC Module is widely used in various industries for applications such as:

  • Process Control: The module is commonly used in process control systems, including temperature, pressure, and flow control applications, where analog signals are required for monitoring and feedback.

  • Robotics: It can be integrated into robotic systems to manage real-time control of servo motors and actuators, where precise analog signals are needed to control motion.

  • Automated Manufacturing: In automated manufacturing systems, the module facilitates control over machines that require analog feedback for optimal operation, such as controlling hydraulic or pneumatic systems.

  • Energy Management: Used in energy management and monitoring systems, where analog signals are used to measure energy consumption, temperature, and other parameters.

  • Industrial Automation: This module is well-suited for general automation tasks in industries like chemical processing, oil & gas, and automotive manufacturing, where high-precision signal processing is needed.

Comparison with Competing Products

Compared to other analog I/O modules, the KEBA K2-200 AM280/A stands out due to its high precision (16-bit resolution), flexible configuration options for input and output ranges, and its ability to support a large number of I/O channels in a compact module. Many competing modules may have fewer channels or limited configurability for input/output ranges, which can restrict flexibility in certain applications.

Additionally, the KEBA K2-200 AM280/A supports a wider range of communication protocols (such as CANopen, Modbus, Ethernet/IP), offering better interoperability with a broader range of PLC and DCS systems.

Selection Tips and Considerations

  • Selection Tip: Choose the KEBA K2-200 AM280/A for applications requiring high accuracy in analog signal processing and where flexible configuration of input/output types (voltage and current) is needed. It is particularly well-suited for systems that need both input and output capabilities in a single module.

  • Considerations: Ensure that your system supports the communication protocols (CANopen, Modbus, Ethernet/IP) used by the KEBA K2-200 AM280/A. Also, verify that the module’s power supply matches your system’s voltage (24 V DC).

This detailed overview provides insights into the KEBA K2-200 AM280/A Analog Output/Input DCS PLC Module, including its specifications, features, and applications. If you need additional information or assistance with selecting the right module for your system, feel free to reach out!
