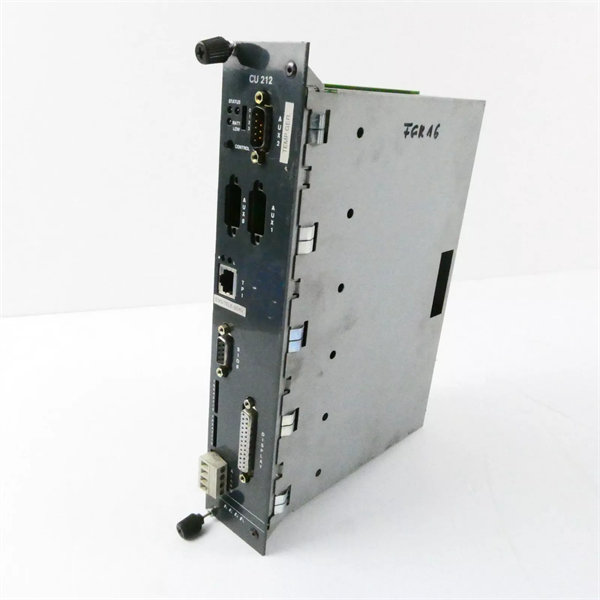

KEBA POWER SUPPLY MODULE CU212

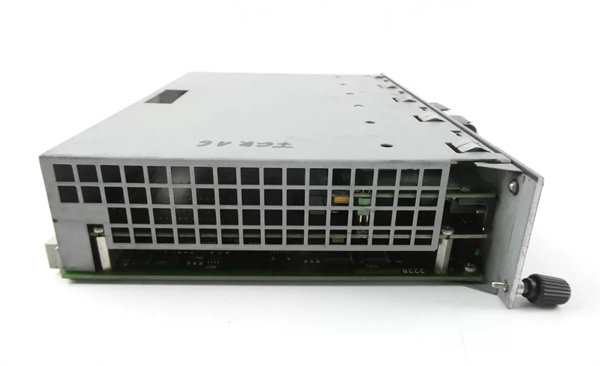

⁦KEBA POWER SUPPLY MODULE CU212⁩ - الصورة ⁦2⁩

KEBA POWER SUPPLY MODULE CU212

  • Module Type: Power Supply Module for DCS and PLC systems.
  • Model: KEBA CU212 Power Supply Module.
  • Function: Power Distribution, Power Conditioning, Voltage Regulation.

Power Supply Input:

  • Input Voltage:

    • AC Input: 380V – 480V (Three-phase).
    • DC Input: 24V DC (common industrial standard for control circuits).

  • Input Frequency:

    • 50 Hz to 60 Hz.

Power Supply Output:

  • Output Voltage:

    • 24V DC (Nominal).
    • Supports 24V DC output to supply power to DCS/PLC modules and associated control systems.

  • Output Current:

    • Typically 10A to 20A, depending on the configuration and load requirements.

  • Power Output:

    • Up to 480W or more, depending on model specifics and configuration.

  • Efficiency:

    • High-efficiency conversion, typically 90% or higher, to minimize energy loss and maximize system uptime.
احصل على عرض أسعار
التصنيف:

الوصف

Product Name:

KEBA POWER SUPPLY MODULE CU212 DCS PLC Module

Product Description:

The KEBA POWER SUPPLY MODULE CU212 is an essential component of the KEBA DCS (Distributed Control System) and PLC (Programmable Logic Controller) modules, designed to provide reliable and stable power supply to industrial control systems. As a key part of the KEBA CU series, this power supply module ensures smooth operation of high-demand automation systems, particularly in environments that require continuous operation and high performance.

This module is specifically designed for integration into industrial control systems, supporting various industrial processes that require high-power reliability and redundancy. It offers power conditioning, overvoltage protection, and ensures that the DCS/PLC system remains operational even in the event of power fluctuations, preventing damage to other system components.

The CU212 is suitable for a wide range of industrial applications, such as machine automation, robotics, and automated production lines, where the need for robust and secure power supply is critical to system performance and stability.

Product Parameters & Specifications:

General Specifications:

  • Module Type: Power Supply Module for DCS and PLC systems.
  • Model: KEBA CU212 Power Supply Module.
  • Function: Power Distribution, Power Conditioning, Voltage Regulation.

Power Supply Input:

  • Input Voltage:

    • AC Input: 380V – 480V (Three-phase).
    • DC Input: 24V DC (common industrial standard for control circuits).

  • Input Frequency:

    • 50 Hz to 60 Hz.

Power Supply Output:

  • Output Voltage:

    • 24V DC (Nominal).
    • Supports 24V DC output to supply power to DCS/PLC modules and associated control systems.

  • Output Current:

    • Typically 10A to 20A, depending on the configuration and load requirements.

  • Power Output:

    • Up to 480W or more, depending on model specifics and configuration.

  • Efficiency:

    • High-efficiency conversion, typically 90% or higher, to minimize energy loss and maximize system uptime.

Protection Features:

  • Overvoltage Protection:

    • Ensures that voltage spikes or transients are absorbed and do not damage the system.

  • Overcurrent Protection:

    • Provides safety against excessive current flow, preventing system damage.

  • Short-Circuit Protection:

    • Safeguards against short circuits, ensuring continuous operation without the risk of catastrophic failure.

  • Thermal Protection:

    • Over-temperature protection with thermal shutdown in case of overheating, ensuring safe operation and longevity of the module.

Communication & Monitoring:

  • Diagnostics and Monitoring:

    • Real-time monitoring of input/output voltage, current, and system health, with feedback via status LEDs and diagnostic data available for integration with the PLC system.

  • Communication Protocols:

    • Modbus RTU or Ethernet/IP (depending on specific configuration) for remote monitoring and integration with DCS/PLC systems.

Environmental Specifications:

  • Operating Temperature:

    • 0°C to 50°C (optimal performance range in industrial environments).

  • Storage Temperature:

    • -20°C to 70°C.

  • Humidity:

    • 5% to 95% RH, non-condensing.

  • Vibration Resistance:

    • Meets IEC 60068 standards for industrial-grade equipment, ensuring resilience to operational vibrations in factory settings.

Physical Specifications:

  • Dimensions:

    • Width: Typically 60mm (Standard DIN rail mount).
    • Height: Typically 125mm.
    • Depth: Typically 130mm.

  • Mounting Type:

    • DIN Rail mountable for easy installation into control panels.

  • Weight:

    • Approx. 1.5 kg (varies by configuration).

Certifications and Standards:

  • CE Mark: Conforms to European safety and environmental standards.
  • UL Certified: For use in North American markets with compliance to UL 508A.
  • RoHS Compliant: Free from hazardous substances, making it suitable for green manufacturing practices.

Additional Features:

  • Fanless Design:

    • Efficient heat dissipation without the need for a fan, reducing maintenance and increasing reliability in harsh environments.

  • Redundancy Options:

    • The CU212 module can be configured with redundant power supplies for mission-critical applications where continuous uptime is essential.

  • Modular Design:

    • Can be combined with other KEBA CU series power modules for scaling up to higher power requirements in larger systems.

Applications:

  1. Industrial Automation:

    • Essential in providing reliable power to PLC, DCS, and other automation controllers in industrial machines, ensuring continuous operation in automated production lines.

  2. Machine Control Systems:

    • Used in machine automation systems such as CNC machines, robotic systems, and automated assembly lines, ensuring the controllers and drives receive uninterrupted power.

  3. Robotics:

    • Provides power to robotic controllers and drives, essential for precise motion and control in robotic arms, AGVs (Automated Guided Vehicles), and pick-and-place systems.

  4. Energy and Power Systems:

    • Reliable power supply for renewable energy systems or UPS (Uninterruptible Power Supply) backup systems for control applications.

  5. Manufacturing and Production:

    • Ideal for environments requiring high power reliability, such as semiconductor manufacturing, electronics assembly, and other high-tech industries.

Comparison to Similar Modules:

The KEBA CU212 Power Supply Module is designed for high-efficiency and high-reliability industrial environments. Compared to other power supply modules, its primary advantages include modular design, redundancy options, and integrated diagnostics, making it more adaptable and resilient for automation systems.

Its fanless design also reduces the need for regular maintenance, while its compliance with industrial standards such as CE, UL, and RoHS ensures it can be used in diverse geographic regions and industries.

For mission-critical applications that require constant, stable, and redundant power, the CU212 offers unmatched reliability and performance, ensuring that your DCS or PLC system runs smoothly and without interruption.

If you need more detailed configuration options or have any additional questions regarding integration or installation, feel free to ask!
