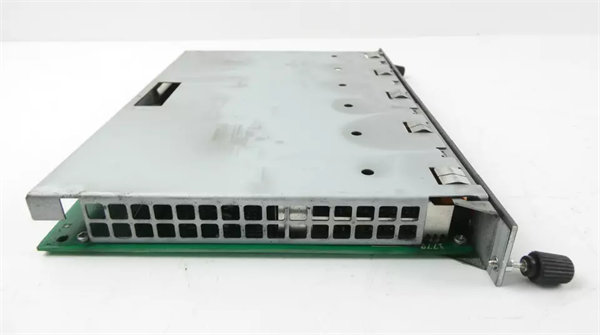

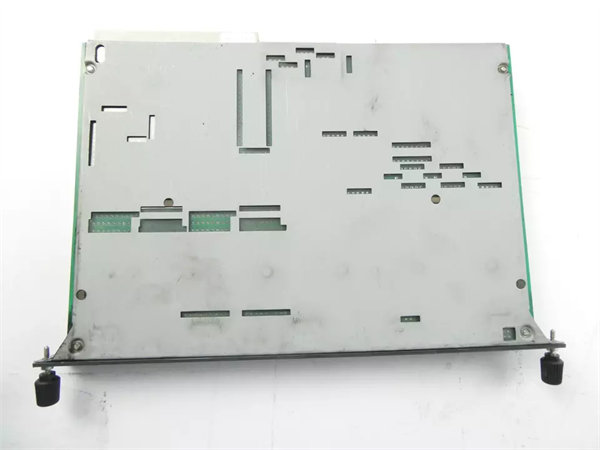

KEBA Power Supply Module – Part No. PD242/A

Product Name:

KEBA PD242/A Power Supply Module

Product Description:

The KEBA PD242/A Power Supply Module is a high-performance, reliable power supply designed for use in KEBA’s automation systems and control panels. It ensures stable and consistent power delivery to the system components, contributing to the overall efficiency and reliability of industrial automation processes. The PD242/A is ideal for use in systems requiring a robust and continuous power supply for the PLCs, I/O modules, sensors, and other devices in demanding industrial environments.

The module is designed to work with 24V DC systems, delivering highly stable and noise-free power to sensitive components. With its compact design, high efficiency, and advanced protection features, the PD242/A is suitable for a variety of industrial automation applications, including manufacturing, energy, transportation, and building automation.

Key Features & Advantages:

1. High Efficiency: The PD242/A offers exceptional efficiency, reducing energy consumption and minimizing heat generation within control cabinets or systems.

2. Compact & Rugged Design: Its small form factor allows for easy integration into tight spaces within industrial control panels while ensuring a high level of durability and resistance to environmental factors.

3. Wide Input Voltage Range: The PD242/A is designed to work with a wide AC input range, typically 85-264V AC, allowing for operation in various international markets with different power standards.

4. Stable 24V DC Output: Provides a stable and reliable 24V DC output, ensuring that control systems and automation devices receive the correct voltage for smooth operation.

5. Advanced Protection Features: Includes overvoltage, overcurrent, and short-circuit protection to safeguard the power supply module and connected equipment from damage.

6. Status Indicators: Equipped with LED indicators for power status, alarm signals, and fault conditions, making it easier for operators to monitor the status of the system and take corrective actions.

7. Built-in Power Factor Correction (PFC): The PD242/A features power factor correction, improving energy efficiency and reducing the burden on electrical infrastructure.

8. EN 60950-1, UL, and CE Compliance: The module complies with major international standards, ensuring it meets the necessary safety, performance, and electromagnetic compatibility requirements.

9. Convection Cooled: The design supports convection cooling, eliminating the need for fans or additional cooling mechanisms, reducing maintenance and failure risks.

Product Parameters & Specifications:

• Part Number: KEBA PD242/A

• Input Voltage Range:

  • AC Input: 85-264V AC (wide voltage range for global compatibility)
  • Frequency: 47-63Hz

• Output Voltage:

  • Nominal Output: 24V DC
  • Output Voltage Tolerance: Typically ±1%

• Output Current:

  • Rated Output Current: Typically 10A (depending on model configuration)
  • Max Output Power: 240W

• Output Power:

  • 240W continuous output power
  • The PD242/A is capable of supporting devices with high power demands, such as PLCs, HMI (Human Machine Interfaces), I/O modules, and sensors.

• Efficiency:

  • Typically 90-95% (depending on load), ensuring high energy efficiency and minimal heat dissipation.

• Protection Features:

  • Overload Protection: Automatically limits current to prevent damage to the power supply and connected devices.
  • Overvoltage Protection: Prevents excessive voltage output that could damage sensitive components.
  • Short-Circuit Protection: Protects the power supply from short circuits, ensuring long-term reliability.
  • Thermal Shutdown: The module will automatically shut down in the event of overheating, preventing thermal damage.

• Status Indicators:

  • Power ON LED: Indicates the power supply is operational.
  • Alarm LED: Indicates faults such as overload, short circuit, or other abnormal conditions.

• Mounting:

  • DIN Rail Mountable: The PD242/A is designed for easy installation in standard DIN rail configurations, which are common in industrial control cabinets.

• Operating Temperature:

  • Range: -20°C to +60°C (with derating above 50°C)
  • Suitable for various industrial environments where temperature stability is required.

• Storage Temperature:

  • Range: -40°C to +85°C

• Relative Humidity:

  • Operating: 5% to 95%, non-condensing
  • Storage: 5% to 95%, non-condensing

• Cooling:

  • Convection Cooling: No external fans required, making the power supply quieter and reducing maintenance needs.

• Size (W x H x D):

  • Dimensions: 125mm x 125mm x 80mm
  • Weight: Around 1.1 kg

• Certifications & Compliance:

  • CE Marked: Complies with European Union regulations for safety and electromagnetic compatibility.
  • UL Listed: Meets safety standards as required by Underwriters Laboratories (USA).
  • EN 60950-1 Certified: Compliance with safety standards for IT equipment.

Applications and Use Cases:

1. Industrial Automation: Provides reliable power for PLCs, I/O systems, and sensors in manufacturing plants, robotics, and process control systems.

2. Building Automation: Supplies power to the components of smart building systems, such as HVAC controls, lighting systems, and security devices.

3. Energy & Power Systems: Ensures stable power supply to energy monitoring devices, power meters, and controllers in power plants or renewable energy systems.

4. Transportation Systems: Used in rail systems, airports, and other transportation infrastructures requiring robust and efficient power supplies.

5. Control Panels: Ideal for providing power to various automation modules inside control panels in various industrial and commercial applications.

6. Process Control Systems: Ensures that sensors, actuators, and controllers in process industries such as chemical or oil & gas are powered without interruption.

7. Telecommunications: Supplies backup or primary power to telecom equipment, routers, and base stations, particularly in areas where network uptime is critical.

Comparison with Competitors:

Compared to similar products from Siemens, Schneider Electric, or Phoenix Contact, the KEBA PD242/A stands out due to its high efficiency, compact size, and advanced protection features. While many power supply modules offer similar specifications, KEBA’s emphasis on convection cooling, reliable power delivery, and status monitoring make it a great option for a wide range of industrial and automation applications.

Selection Tips:

• For Systems with High Power Demands: If your automation system requires a stable and powerful 24V DC supply for multiple devices, the PD242/A is an excellent choice.
• For Harsh Environments: Its rugged design and wide operating temperature range make it suitable for use in challenging industrial environments.
• For Energy-Efficient Solutions: The high-efficiency design reduces operating costs, making it ideal for long-term operation in energy-conscious systems.

This information gives you a complete overview of the KEBA PD242/A Power Supply Module. If you need further assistance or have any specific questions, feel free to ask!
