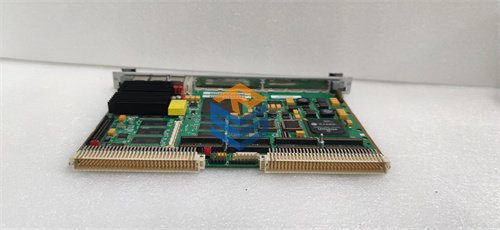

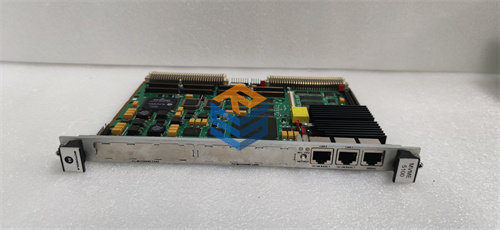

As an industrial automation expert, the MOTOROLA MVME5101-0131 is a VMEbus Single Board Computer (SBC). This means it’s a complete computer on a single printed circuit board (PCB) designed to plug into a VMEbus chassis.
Motorola (and later Emerson Embedded Computing, which acquired Motorola’s embedded computing division) produced the MVME series as robust, high-performance computing solutions primarily for industrial automation, telecommunications, and military/aerospace applications.
The MVME5101-0131 is part of the MVME5100 series, which features the PowerPC® processor. These boards were known for their powerful processing capabilities and rich communication interfaces, making them suitable for demanding real-time control and data processing tasks.
Key Features and Benefits:
- VMEbus Compatibility: Designed to seamlessly integrate into a VMEbus system. The VMEbus is a widely adopted, high-performance backplane bus standard used in industrial and critical applications due to its ruggedness and real-time capabilities.
- PowerPC Processor: Utilizes a PowerPC® processor (likely an MPC7400 or MPC750), providing significant processing power for complex computations and real-time control algorithms. The MPC7400, in particular, included AltiVec™ technology for algorithmic-intensive computations.
- Onboard Memory: Includes onboard memory (e.g., 64MB RAM as indicated by some sources) to support the operating system and application programs.
- Integrated Communication: Features built-in communication protocols and interfaces, commonly including Ethernet ports (10/100 Mbps) for network connectivity, remote control, and monitoring. It also typically has serial ports for various peripheral connections.
- Industrial Reliability: Built with robust components and design principles suitable for harsh industrial environments, ensuring stability and reliability in demanding conditions.
- Real-time Performance: Optimised for real-time operating systems, crucial for applications requiring deterministic behavior and precise timing.
- Versatile Application: Can be used in various industrial control systems, including DCS (Distributed Control Systems), PLC (Programmable Logic Controller) systems, and general embedded computing applications.
- Legacy System Support: As part of a well-established product line, the MVME5101-0131 is often sought after for maintaining or extending the life of existing industrial systems.
Technical Specifications (Typical for MVME5101-0131 or MVME5100 series):
| Parameter | Value |
| Product Type | VMEbus Single Board Computer (SBC) |
| Manufacturer | Motorola (now Emerson Embedded Computing) |
| Series | MVME5100 Series |
| Model Number | MVME5101-0131 |
| Processor | PowerPC® (e.g., MPC7400, MPC750) |
| Clock Speed | (Specifics vary, typically in hundreds of MHz range for PowerPC) |
| Memory | 64 MB SDRAM (standard configuration) |
| Bus Interface | VMEbus (32-bit, up to 64-bit operation) |
| Communication Ports | Ethernet (10/100Base-T), Serial Ports (RS-232) |
| Expansion Slots | (May have PMC or other expansion slots for additional I/O) |
| Operating Temperature | 0°C to 55°C (typical for industrial grade) |
| Storage Temperature | -40°C to 85°C |
| Form Factor | 6U VMEbus board |
| Product Lifecycle | Discontinued/Legacy Product |
Common Applications:
The MVME5101-0131 was (and in many cases still is, via legacy systems) used in a wide array of applications requiring reliable and high-performance embedded computing.
- Industrial Automation: Control of production lines, equipment monitoring, data acquisition, and process control in manufacturing, chemical plants, and more.
- Telecommunications: Embedded in communication equipment for traffic processing, network switching, and routing functions.
- Medical Equipment: Used in medical imaging, diagnostic, and treatment equipment where high processing power and reliability are critical.
- Military and Aerospace: For various control, data processing, and communication tasks in rugged environments.
- Test and Measurement: Driving automated test equipment and data logging systems.
Important Note on Lifecycle:
It is crucial to be aware that the Motorola MVME5101-0131, as part of the MVME5100 series, is generally considered a discontinued or legacy product. While it was a high-quality and reliable component, direct procurement of new units from the manufacturer is unlikely. Companies supporting legacy equipment or surplus industrial suppliers are the primary sources for these modules now.
