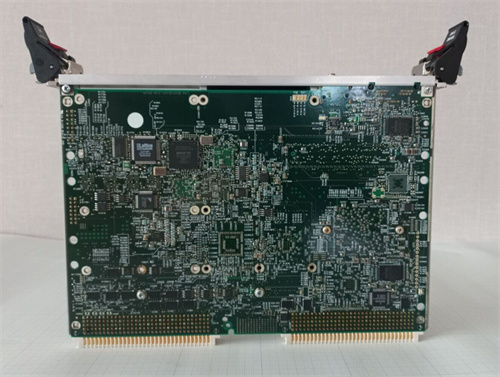

MOTOROLA+MVME333-2

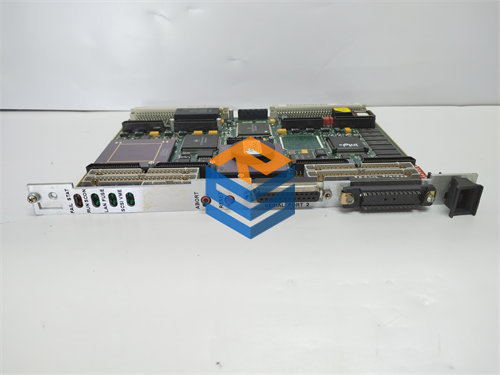

⁦MOTOROLA+MVME333-2⁩ - الصورة ⁦2⁩

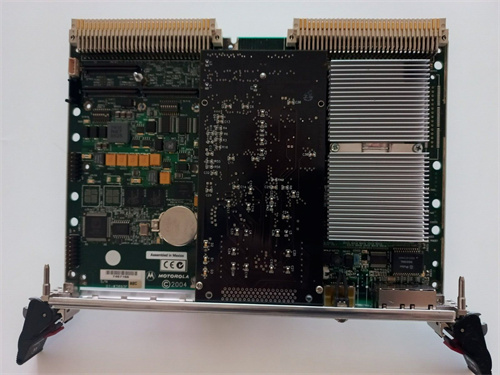

⁦MOTOROLA+MVME333-2⁩ - الصورة ⁦3⁩

MOTOROLA+MVME333-2

  • Model: MVME333-2
  • Manufacturer: Motorola (now part of NXP Semiconductors)
  • Type: DCS PLC Module
  • Form Factor: VMEbus-based (Standard 6U VME module)
  • Processor: Motorola PowerPC 603e processor (or equivalent)
  • Operating System: Typically supports VxWorks or other real-time operating systems (RTOS)
  • Power Supply: Typically 5V DC ±5%, 3.3V DC ±5% for logic circuits
  • Dimensions: 233 mm (W) x 160 mm (L) x 24 mm (H)
  • Weight: Approximately 1.1 kg (depends on configuration)
احصل على عرض أسعار
التصنيف:

الوصف

MOTOROLA MVME333-2 DCS PLC Module

Product Name:

MOTOROLA MVME333-2 DCS PLC Module

Product Description:

The MOTOROLA MVME333-2 is a high-performance Distributed Control System (DCS) PLC module designed for use in industrial automation applications. It is part of MOTOROLA’s embedded computing solutions, particularly tailored for real-time control, monitoring, and data acquisition in critical systems. This module is widely used in applications such as process control, automation, data logging, and telemetry across industries like power, oil and gas, and manufacturing.

The MVME333-2 is based on the VMEbus architecture, which is a well-established industrial standard known for its flexibility, scalability, and robustness in harsh environments. The module features a high-speed microprocessor, advanced I/O capabilities, and compatibility with various communication protocols. Its modular design allows easy expansion, making it ideal for complex automation systems that require high-speed data processing and integration with other control equipment.

With built-in diagnostic tools, fault tolerance mechanisms, and advanced real-time capabilities, the MVME333-2 ensures high availability and reliability in mission-critical applications, making it suitable for industries that require continuous and precise control over automated processes.

Key Features:

  • Real-Time Performance: Provides fast, deterministic control for process automation and monitoring.
  • VMEbus Compatibility: Uses the VMEbus architecture for high data throughput, modularity, and ease of integration with existing systems.
  • Advanced I/O Interfaces: Supports a wide range of I/O modules, ensuring flexible configuration for various applications.
  • Reliability & Robustness: Built for high reliability in demanding industrial environments, with redundancy options to ensure system uptime.
  • Modular & Scalable: Easily expandable for large and complex automation systems.
  • Diagnostic Capabilities: In-built diagnostics for continuous system health monitoring and fault detection.
  • Communication Protocols: Supports industry-standard protocols for seamless integration with other control and monitoring systems.

Product Parameters:

  • Model: MVME333-2
  • Manufacturer: Motorola (now part of NXP Semiconductors)
  • Type: DCS PLC Module
  • Form Factor: VMEbus-based (Standard 6U VME module)
  • Processor: Motorola PowerPC 603e processor (or equivalent)
  • Operating System: Typically supports VxWorks or other real-time operating systems (RTOS)
  • Power Supply: Typically 5V DC ±5%, 3.3V DC ±5% for logic circuits
  • Dimensions: 233 mm (W) x 160 mm (L) x 24 mm (H)
  • Weight: Approximately 1.1 kg (depends on configuration)

Product Specifications:

  1. Processor:

    • Processor Type: Motorola PowerPC 603e or equivalent processor
    • Clock Speed: 200 MHz (varies by model)
    • Cache: 512KB of on-chip cache
    • Processor Bus: 32-bit address and data bus

  2. Memory:

    • RAM: 128MB to 512MB (depending on configuration)
    • Flash Memory: 32MB or 64MB (for operating system and application storage)
    • Battery-backed RAM: Optional for non-volatile storage needs

  3. I/O Interfaces:

    • Serial Ports: 2 x RS-232/RS-485 (for communication with field devices)
    • Ethernet: 10/100Base-T Ethernet ports for network communication
    • VMEbus I/O: Supports multiple VMEbus-based I/O modules for flexible configuration
    • Digital I/O: Typically supports 16 to 64 digital I/O channels (depending on configuration)
    • Analog I/O: Supports various analog inputs/outputs (4-32 channels, depending on I/O modules)

  4. Communication Protocols:

    • Ethernet: TCP/IP for high-speed communication
    • RS-232/RS-485: For communication with sensors, actuators, and other devices
    • Fieldbus Protocols: Optional modules for communication with standard industrial fieldbuses such as Modbus RTU/TCP, Profibus, or DeviceNet
    • Serial Protocols: Supports industry-standard serial protocols for real-time communication

  5. VMEbus System:

    • Bus Type: 32-bit VMEbus, supports 2eSST (extended Super Swap technology)
    • Address Space: Up to 4GB address space
    • Bus Speed: 80MB/s (depends on VMEbus specification)

  6. Redundancy and Fault Tolerance:

    • Power Supply Redundancy: Typically supports dual power supply configurations for fault tolerance
    • Network Redundancy: Supports redundant Ethernet for high availability
    • I/O Redundancy: Optional redundant I/O modules to ensure continuous operations

  7. Environmental Conditions:

    • Operating Temperature: Typically -40°C to +70°C
    • Storage Temperature: -55°C to +85°C
    • Humidity: 5% to 95% (non-condensing)
    • Vibration: Designed for industrial environments with standard vibration resistance
    • Shock: Built to withstand typical industrial shock levels

  8. Mounting and Installation:

    • Rack Mountable: Compatible with standard 6U VME chassis for easy integration into existing systems
    • DIN Rail Mount: Optional for compact installations

  9. Diagnostics and Monitoring:

    • Real-Time Diagnostics: Provides continuous system monitoring to detect faults, overloads, and other potential issues.
    • Event Logging: Logs critical system events for later analysis and troubleshooting
    • Health Monitoring: Includes tools to monitor the status of key components (CPU, memory, I/O, etc.)
    • Error Reporting: Detailed error messages and system alerts for proactive maintenance

  10. Safety and Protection:

  • Overcurrent Protection: Built-in to prevent damage to the module from excessive current.
  • Surge Protection: Prevents damage from electrical surges or spikes.
  • Short-Circuit Protection: Protects the module and attached equipment from short-circuit conditions.
  1. Certifications:
  • CE: Compliant with European Union standards for safety and electromagnetic compatibility
  • UL: Certified for compliance with North American safety standards
  • RoHS: Compliant with environmental standards for restricting the use of hazardous materials in manufacturing

Applications:

The MOTOROLA MVME333-2 DCS PLC module is suitable for a wide range of automation applications where high performance, reliability, and scalability are essential. Some typical applications include:

  • Industrial Automation: Control and monitoring of production lines, machinery, and robots.
  • Process Control: Automation of process industries such as oil and gas, chemicals, and power generation.
  • Data Acquisition Systems: Real-time collection of data from sensors and other field devices for analysis and control.
  • Telecommunications: Used in systems requiring high-speed data handling and processing.
  • Transportation and Logistics: Control of automated systems in transportation networks and logistics operations.

Additional Features:

  • Modular Expansion: Flexible expansion options via VMEbus I/O modules, enabling the system to grow as needed.
  • System Integration: Supports seamless integration with other automation and control systems using standard communication protocols.
  • High Availability: Designed to meet the demands of mission-critical applications requiring continuous operation without failure.

The MOTOROLA MVME333-2 DCS PLC module is an excellent choice for industries needing high-performance, scalable, and robust control solutions. Its flexibility and real-time capabilities ensure that it can be tailored to a wide variety of applications.
