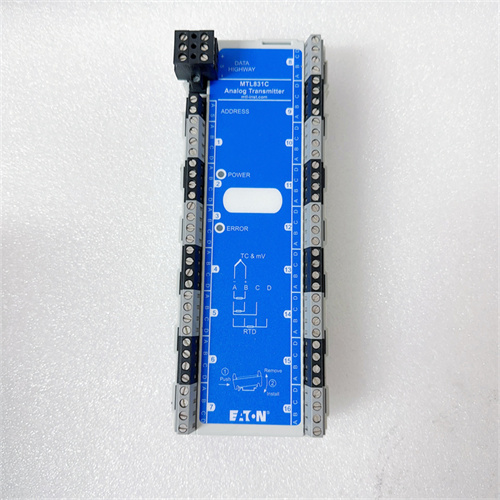

MTL+MTL831B MTL831C

الوصف

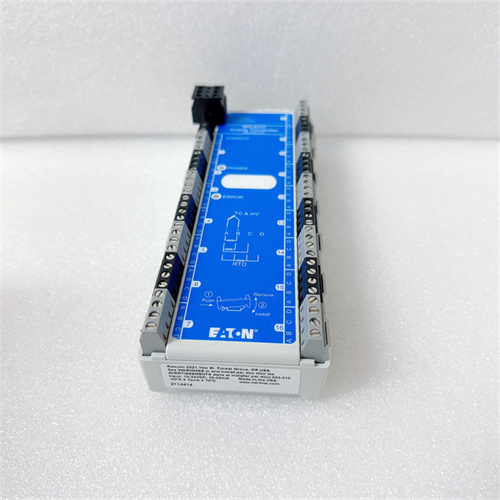

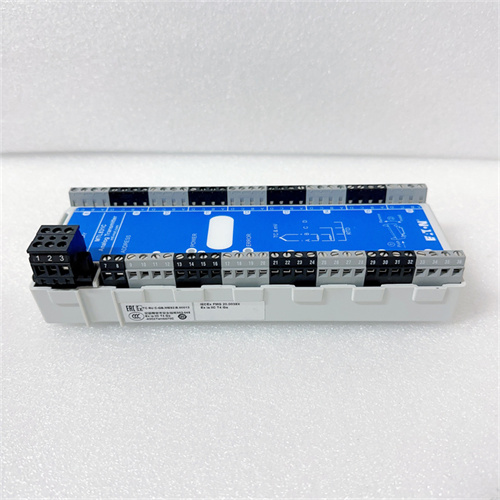

The MTL 831B is a DCS/PLC module used in industrial automation systems, typically for intrinsically safe and hazardous location applications. It’s a part of MTL Instruments, which is known for designing products that ensure safe and efficient control in environments where safety is a concern, such as in the oil & gas, chemical, and petrochemical industries.

Product Name:

• MTL 831B

Product Description:

• The MTL 831B is a signal isolator and interface module, designed to work in intrinsically safe applications. It is often used as an interface between the control system (DCS/PLC) and field devices, ensuring safe and reliable data transmission in hazardous environments.
• MTL is a leading brand for products used in process control and safety systems, offering intrinsically safe barriers and isolators that comply with ATEX and IECEx standards.

Product Parameters:

1. Type:

   • The MTL 831B is typically a signal isolator module or input/output interface module for intrinsically safe circuits.
   • The module is used to isolate field devices from control systems, ensuring safe operation in hazardous environments.

2. Functionality:

   • The MTL 831B allows the control system (PLC/DCS) to interface with field devices in areas where hazardous materials or explosive gases may be present, preventing sparks and electrical faults from causing hazards.
   • It provides signal isolation, ensuring that hazardous signals from field devices are separated from the control system.
   • Intrinsically Safe: Designed specifically for hazardous locations where explosive gases or dust may be present (e.g., classified zones in oil refineries or chemical plants).

3. Connectivity:

   • The module typically connects field devices (e.g., sensors, actuators) to the DCS/PLC control system, with built-in isolation to protect against electrical faults and ensure system safety.
   • Compatible with a wide range of input signals such as 4-20mA, 0-10V, or digital signals.

Specifications:

1. Power Supply:

   • The MTL 831B is powered by 24V DC, common for industrial automation systems.
   • It may support specific voltage ranges depending on the exact configuration and region.

2. Signal Types:

   • Analog Signals: Supports both current and voltage input/output signals.
   • Digital Signals: Can support binary signals such as ON/OFF or Pulse signals.

3. Input/Output:

   • Typically, the MTL 831B has input/output (I/O) interfaces that facilitate communication between the PLC/DCS and field devices.
   • It can support configurations like 4-20 mA, 0-10V, or digital I/O signals depending on the application.

4. Environmental Conditions:

   • Operating temperature range: Typically, -20°C to +60°C (exact temperature range can vary by application).
   • Designed to be rugged and durable to withstand harsh industrial conditions, including temperature extremes, vibration, and electromagnetic interference.

5. Intrinsic Safety Certification:

   • The MTL 831B is intrinsically safe, certified for use in ATEX Zone 1, 2, IECEx zones, and other hazardous locations where explosive gases, vapors, or dust may be present.
   • It meets international safety standards such as IEC 60079 (explosive atmospheres) and UL standards for hazardous locations.

6. Redundancy:

   • Typically, the MTL 831B would be used in systems where redundant configurations are desired, often paired with other devices to ensure system reliability and minimize downtime.

7. Housing and Mounting:

   • The module is usually housed in a compact enclosure suitable for DIN rail mounting in control panels, offering easy installation and integration into existing control systems.

8. Communication Protocols:

   • Depending on the specific configuration, the module may support HART, Modbus, or other industrial communication protocols, allowing integration with DCS/PLC systems.

9. Approvals:

   • The MTL 831B complies with safety and industrial standards for use in hazardous environments, including:
     • ATEX (EU Certification for explosive atmospheres)
     • IECEx (International Certification for Ex-rated areas)
     • FM (Factory Mutual – Hazardous Locations)

Applications:

1. Oil & Gas Industry: Used for controlling process equipment in areas where explosive gases or vapors are present.
2. Chemical Industry: Suitable for process automation in environments with flammable chemicals and gases.
3. Petrochemical Plants: Provides safe signal isolation for control and monitoring systems in explosive and hazardous environments.
4. Pharmaceutical: Ensures safe operation in areas where volatile chemicals are used.
5. Mining and Cement: Can be used in environments with potentially explosive dust or gas hazards.

Key Features:

1. Intrinsically Safe Design: Certified for use in hazardous areas to prevent spark and fire risks.
2. Signal Isolation: Protects control systems and equipment from electrical faults, ensuring the safety of personnel and infrastructure.
3. Versatile I/O: Supports both analog and digital signal interfacing.
4. Compact Design: Easy integration into existing control panels with DIN rail mounting options.
5. Rugged: Built to withstand harsh conditions and industrial environments.
6. Safety Certified: Meets key international safety standards for use in explosive and hazardous environments.

Conclusion:

The MTL 831B is a highly reliable and safe solution for connecting field devices in hazardous environments to control systems. Its intrinsic safety features make it ideal for industries where explosive gases or dust are present, such as oil and gas, chemical, and petrochemical sectors. It ensures signal integrity, safety, and compliance with international safety standards.

For specific configurations and applications, you may want to consult MTL Instruments’ official documentation or reach out to their support team for technical assistance tailored to your exact needs.
