NI+PXI-4462 188261H-11L

  • Model: NI PXI-4462 188261H-11L
  • Number of Channels: 4
  • Resolution: 24 bits
  • Sampling Rate: Up to 102.4 kS/s per channel
  • Input Range: ±10 V, ±1 V, ±0.1 V
  • Connector Type: BNC
  • Compliance with Standards: CE, RoHS
  • Operating Temperature Range: 0 °C to 55 °C
احصل على عرض أسعار
التصنيف:

الوصف

Product Name

NI PXI-4462 188261H-11L

Product Description

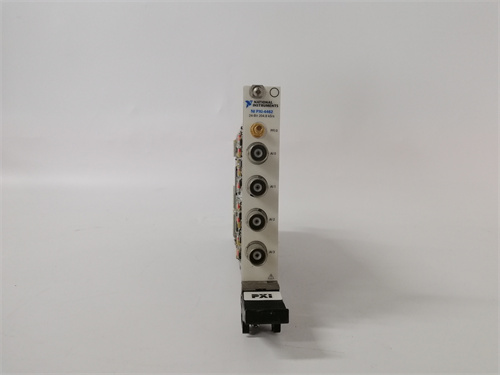

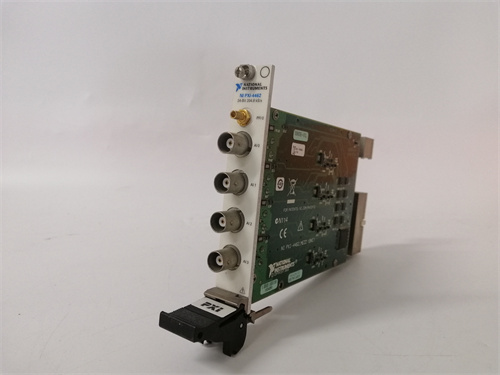

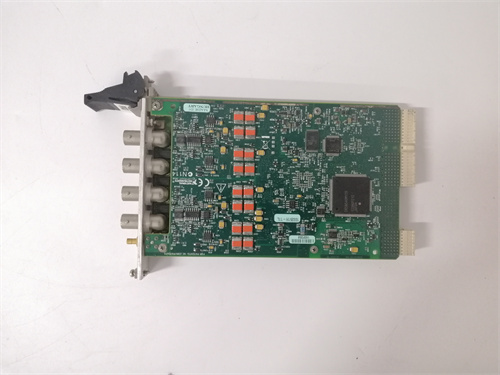

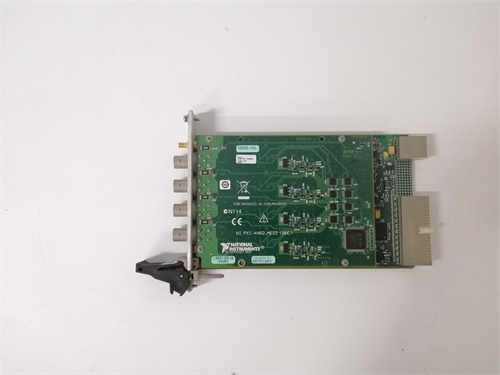

The NI PXI-4462 188261H-11L is a high-performance data acquisition module designed specifically for PXI systems. This model from National Instruments provides dynamic signal acquisition with up to 24-bit resolution, making it suitable for various applications that require high fidelity audio and vibration analysis.

With the NI PXI-4462 188261H-11L, users can take advantage of its versatile capabilities, including simultaneous sampling of multiple channels. This module also features an extensive input range, allowing users to accurately measure a variety of signals without the need for external amplification.

Product Specifications

  • Model: NI PXI-4462 188261H-11L
  • Number of Channels: 4
  • Resolution: 24 bits
  • Sampling Rate: Up to 102.4 kS/s per channel
  • Input Range: ±10 V, ±1 V, ±0.1 V
  • Connector Type: BNC
  • Compliance with Standards: CE, RoHS
  • Operating Temperature Range: 0 °C to 55 °C

Advantages and Features

The NI PXI-4462 188261H-11L offers several advantages that set it apart in the automation industry:

  • High Resolution: With a 24-bit resolution, it captures the finest details in measurement signals, which is critical for precision applications.
  • Simultaneous Sampling: The ability to sample multiple channels simultaneously minimizes phase discrepancies, thus providing more accurate analysis.
  • Wide Dynamic Range: This feature allows users to measure tiny signals amidst larger ones without signal distortion.
  • Versatile Applications: The NI PXI-4462 188261H-11L is ideal for tasks in audio analysis, mechanical testing, and control system applications.

Applications and Use Cases

The NI PXI-4462 188261H-11L is widely utilized across various fields, including:

  • Automotive Testing: Used for vibration analysis and condition monitoring in automotive components.
  • Consumer Electronics: Helps in audio quality testing for devices such as smartphones and speakers.
  • Industrial Automation: Employed in monitoring and control systems to ensure operational efficiency.
  • Research and Development: Supports various experimental setups requiring precise signal measurement.

One prominent use case is in the automotive sector, where engineers utilize the NI PXI-4462 188261H-11L to conduct in-depth analysis of suspension systems under varying conditions, leading to enhanced vehicle performance.

Competitor Comparison

When compared to other data acquisition modules, the NI PXI-4462 188261H-11L stands out due to its:

  • Superior resolution and sampling capabilities relative to competitors like the Agilent 34970A or the Tektronix DTG series.
  • Customization and scalability options within the National Instruments ecosystem.
  • Strong support and integration capabilities with LabVIEW and other NI software.

Selection Advice

When selecting a data acquisition module, consider the following:

  • Application Requirements: Determine the necessary resolution and channel count.
  • Future Scalability: Choose a module that can adapt to future needs; the NI PXI-4462 188261H-11L provides flexibility within the NI ecosystem.
  • Budget: While this model offers excellent value, assess whether its features align with your budget constraints.

Cautionary Notes

  • Ensure proper signal conditioning before interfacing the NI PXI-4462 188261H-11L to prevent damage under high voltage conditions.
  • Regularly calibrate the device to maintain its high accuracy and reliability.
  • Consider environmental factors, such as temperature fluctuations, as they can affect performance.

We are your trusted partner, providing sales and technical support for the NI PXI-4462 188261H-11L and other automation spare parts. Enjoy special discount prices by contacting us; we are dedicated to serving you.
