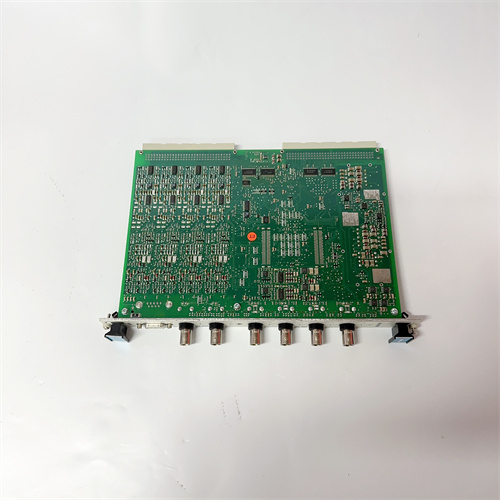

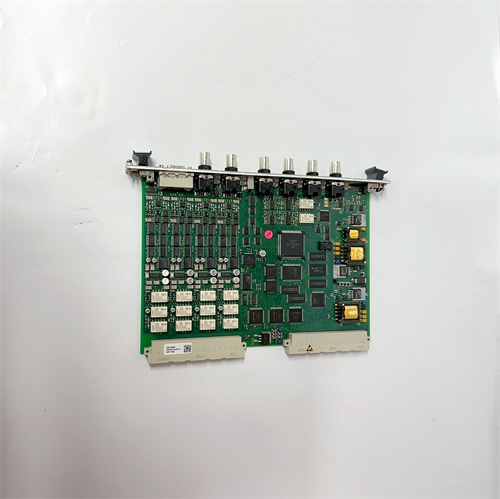

VIBRO-METER MPC4 200-510-078-115

الوصف

The VIBRO-METER MPC4 (Machinery Protection Card 4-channel) with part number 200-510-078-115 is a core component of the VM600 series machinery protection system (MPS) from Meggitt Sensing Systems (now Parker Meggitt). This module is specifically designed for continuous, real-time measurement and monitoring of critical rotating machinery to ensure safe operation and prevent catastrophic failures.

VIBRO-METER VM600 MPC4 (200-510-078-115): Precision Machinery Protection

The MPC4 is a highly versatile and intelligent processing card that forms the central element of the VM600’s machinery protection capabilities. It is responsible for taking raw sensor data, processing it through advanced DSP techniques, comparing it to alarm setpoints, and triggering alarms or shutdowns when predefined limits are exceeded.

Primary Function and Role:

The VIBRO-METER MPC4 (200-510-078-115)‘s primary function is to provide reliable and redundant machinery protection. This means it continuously monitors critical machine parameters and, upon detecting an abnormal condition, provides rapid alarm indications and outputs for automatic machine shutdown or controlled slowdowns. This helps to prevent severe damage to machinery and ensures the safety of personnel and plant operations.

Key Features and Capabilities:

1. 4 Dynamic Signal Inputs + 2 Tachometer Inputs:

   • Dynamic Inputs: Capable of accepting signals from a variety of sensors measuring dynamic parameters like vibration (acceleration, velocity, displacement from proximity probes), dynamic pressure, relative and absolute vibration, Smax, eccentricity, thrust position, and housing expansion.
   • Tachometer (Speed) Inputs: Two dedicated inputs for speed and phase reference signals from tachometer probes, magnetic pick-ups, or TTL signals. These are crucial for order-tracking and speed-dependent monitoring.

2. Real-time Measurement and Monitoring:

   • Utilizes state-of-the-art Digital Signal Processing (DSP) techniques for high-accuracy, real-time data processing.
   • Performs functions like digital filtering (broad-band and tracking filters), integration (for acceleration to velocity, velocity to displacement), differentiation, and rectification (RMS, mean value, true peak, true peak-to-peak).
   • Order Tracking: Capable of simultaneous amplitude and phase monitoring in order-tracking mode, allowing for detailed analysis of machine behavior at varying speeds relative to rotational orders.

3. Programmable Alarm Setpoints:

   • Features programmable Alert, Danger, and OK set points for each monitored parameter.
   • Adaptive Alarm Levels: Alert and Danger levels can be adapted as a function of machine speed or other external information, providing more intelligent and relevant alarming.
   • Configurable Alarm Logic: User-programmable alarm delay times, hysteresis, and latching for precise control over alarm behavior.

4. Diagnostics and System Integrity:

   • “OK System”: Built-in “OK System” continuously monitors sensor integrity, indicating problems due to broken transmission lines, faulty transducers, or signal conditioners.
   • Self-Test and Diagnostics: Performs self-test and diagnostic routines on power-up to ensure card functionality.
   • LED Indicators: Front-panel LEDs provide clear status indications for monitoring status, alarms, and system faults.

5. Output Capabilities:

   • Integrated Sensor Power: Provides power supply for various Vibro-Meter front-ends, including ICP accelerometers and proximity systems.

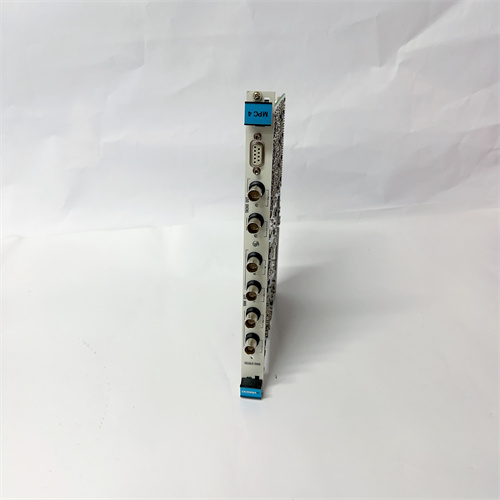

   • Buffered “Raw” Outputs: Front-panel BNC connectors provide direct access to the raw, unprocessed analog sensor signals, allowing for easy connection of portable diagnostic equipment without interfering with the protection system.
   • Digital Outputs: Alarm signals are available internally (on the corresponding IOC4T card) for each alarm level. These can drive local relays on the IOC4T or be routed via the VM600 rack’s buses (Raw bus or Open Collector bus) to drive relays on optional relay cards like the RLC16 or IRC4.
   • Analog Outputs: Processed dynamic (vibration) signals and speed signals are available as analog outputs (typically 0-10 V or 4-20 mA) on the associated IOC4T, allowing integration with DCS or PLC systems.

6. Hot-Swappable: Supports live insertion and removal from the VM600 rack, minimizing downtime during maintenance.

What does the part number 200-510-078-115 signify

The part number 200-510-078-115 indicates a specific revision or variant of the VM600 MPC4 card. In Vibro-Meter (now Parker Meggitt) numbering schemes, these variations typically denote:

• Minor hardware revisions: Updates to components for obsolescence management or improved performance.
• Firmware versions: The specific embedded software version on the card, which might include bug fixes, minor feature enhancements, or compatibility improvements.
• Specific factory configurations: Such as options for different input ranges or certifications for certain applications (though a safety certification like SIL would typically be more explicitly stated in the part number or documentation).

While the core functionality of the MPC4 remains consistent across its variants, consulting the specific datasheet for 200-510-078-115 or contacting Parker Meggitt directly would confirm any precise differences from other MPC4 part numbers.

System Integration:

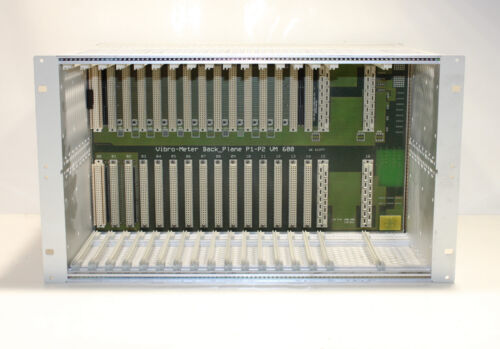

The MPC4 operates as a card pair within the VM600 rack (e.g., ABE040, ABE042, ABE056):

• The MPC4 module is installed in the front card cage of the VM600 rack.
• Its dedicated companion, the IOC4T (Input/Output Card 4-channel Tachometer), is installed directly behind it in the rear card cage. The IOC4T handles the physical sensor connections, transducer power, and provides the physical output terminals for relays and analog signals.
• The MPC4 communicates with the VM600 rack’s CPUM (Central Processing Unit Module) for configuration via software (like VM600 MPSx software) and for higher-level communication to plant control systems or monitoring software like VibroSight®.

Applications and Industries:

The VIBRO-METER VM600 MPC4 is vital for machinery protection in industries with critical and high-value rotating assets:

• Power Generation: Turbines (gas, steam, hydro), generators, and large pumps, where rapid response to abnormal vibration, thrust, or speed conditions is crucial to prevent unscheduled downtime and catastrophic damage. Often used in systems conforming to API 670.
• Oil & Gas: Compressors, pumps, and gas turbines in refineries, pipelines, offshore platforms, and LNG plants, where safety and operational continuity are paramount.
• Chemical and Petrochemical: Monitoring reactors, large fans, and critical pumps where precise control and rapid shutdown capabilities are essential for safety and process integrity.
• Heavy Manufacturing: Such as steel mills and cement plants, for protecting large motors, gearboxes, and production line machinery from costly failures.
• Marine Industry: Ensuring the safe operation of propulsion systems and auxiliary machinery on large commercial and naval vessels.

The MPC4, particularly variants like the 200-510-078-115, is a reliable and high-performance solution for safeguarding machinery and personnel in demanding industrial environments.
