VIBRO-METER+VM600-CSA 204-040-100-211
⁦VIBRO-METER+VM600-CSA 204-040-100-211⁩ - الصورة ⁦2⁩

VIBRO-METER+VM600-CSA 204-040-100-211

Product Name:

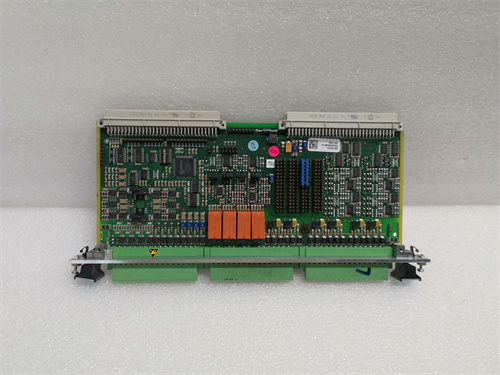

VIBRO-METER VM600-CSA 204-040-100-211 DCS PLC Module

Product Description:

The VIBRO-METER VM600-CSA 204-040-100-211 is a Condition Monitoring and Protection Module that integrates with Vibro-Meter’s VM600 System, designed for real-time monitoring, data collection, and protection of critical machinery. The VM600 system, including the CSA (Condition Signal Adapter) module, is tailored for industries where the reliability of rotating equipment like turbines, generators, compressors, and pumps is paramount.

The VM600-CSA module processes condition monitoring signals from various sensors (such as vibration, temperature, and speed sensors) and provides critical data to the system for evaluating machinery health. It can also trigger alarms and protective shutdowns if pre-set thresholds are exceeded, ensuring the safety of both personnel and equipment.

احصل على عرض أسعار
التصنيف:

الوصف

The VIBRO-METER VM600-CSA 204-040-100-211 DCS PLC Module is a part of the VM600 series from Vibro-Meter, which specializes in condition monitoring and protection systems for rotating machinery. These systems are commonly used in industries such as power generation, oil & gas, and industrial manufacturing, where monitoring of mechanical equipment like turbines, compressors, and pumps is critical for ensuring safety and optimal performance.

Below is the detailed information about the VIBRO-METER VM600-CSA 204-040-100-211 module.

Product Name:

VIBRO-METER VM600-CSA 204-040-100-211 DCS PLC Module

Product Description:

The VIBRO-METER VM600-CSA 204-040-100-211 is a Condition Monitoring and Protection Module that integrates with Vibro-Meter’s VM600 System, designed for real-time monitoring, data collection, and protection of critical machinery. The VM600 system, including the CSA (Condition Signal Adapter) module, is tailored for industries where the reliability of rotating equipment like turbines, generators, compressors, and pumps is paramount.

The VM600-CSA module processes condition monitoring signals from various sensors (such as vibration, temperature, and speed sensors) and provides critical data to the system for evaluating machinery health. It can also trigger alarms and protective shutdowns if pre-set thresholds are exceeded, ensuring the safety of both personnel and equipment.

Product Parameters and Specifications:

  • Model: VM600-CSA 204-040-100-211
  • Type: Condition Monitoring and Protection Module
  • Series: VM600 Series (Condition Monitoring and Protection System)
  • Manufacturer: Vibro-Meter (a division of Meggitt)
  • Primary Function: Signal conditioning and integration for machinery condition monitoring and protection.

Key Features and Capabilities:

  • Signal Conditioning: The VM600-CSA module conditions raw signals (from vibration sensors, thermocouples, speed sensors, etc.) into usable data for the VM600 System.

  • Integration: Works seamlessly within the VM600 system to collect and process signals from a wide variety of sensors, ensuring accurate condition monitoring.

  • Real-Time Monitoring: Provides continuous, real-time data collection and analysis to ensure machinery health is continuously assessed.

  • Alarm Handling and Protection: If the monitored conditions exceed critical thresholds, the system can trigger alarms or shutdowns to protect machinery from damage or failure.

  • Communication Protocols:

    • Modbus RTU/TCP: Standard communication protocol for integration with other DCS or PLC systems.
    • Ethernet: Used for high-speed data transfer and integration with other systems.

  • Modular Design: The VM600-CSA module is part of a modular system where additional modules can be added to expand the system based on the number of monitored machines or required inputs.

  • Fieldbus Compatibility: Can interface with standard industrial networks, making it easy to integrate into existing control systems (DCS/PLC).

  • Data Storage: Stores processed data for later analysis or trend monitoring, which can help identify patterns leading to potential failures.

  • High Accuracy: Provides high-precision signal conditioning, ensuring accurate and reliable data for critical decision-making.

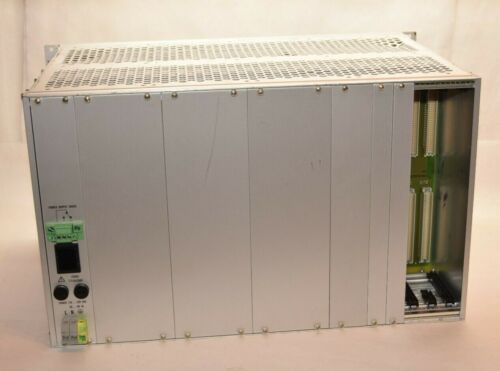

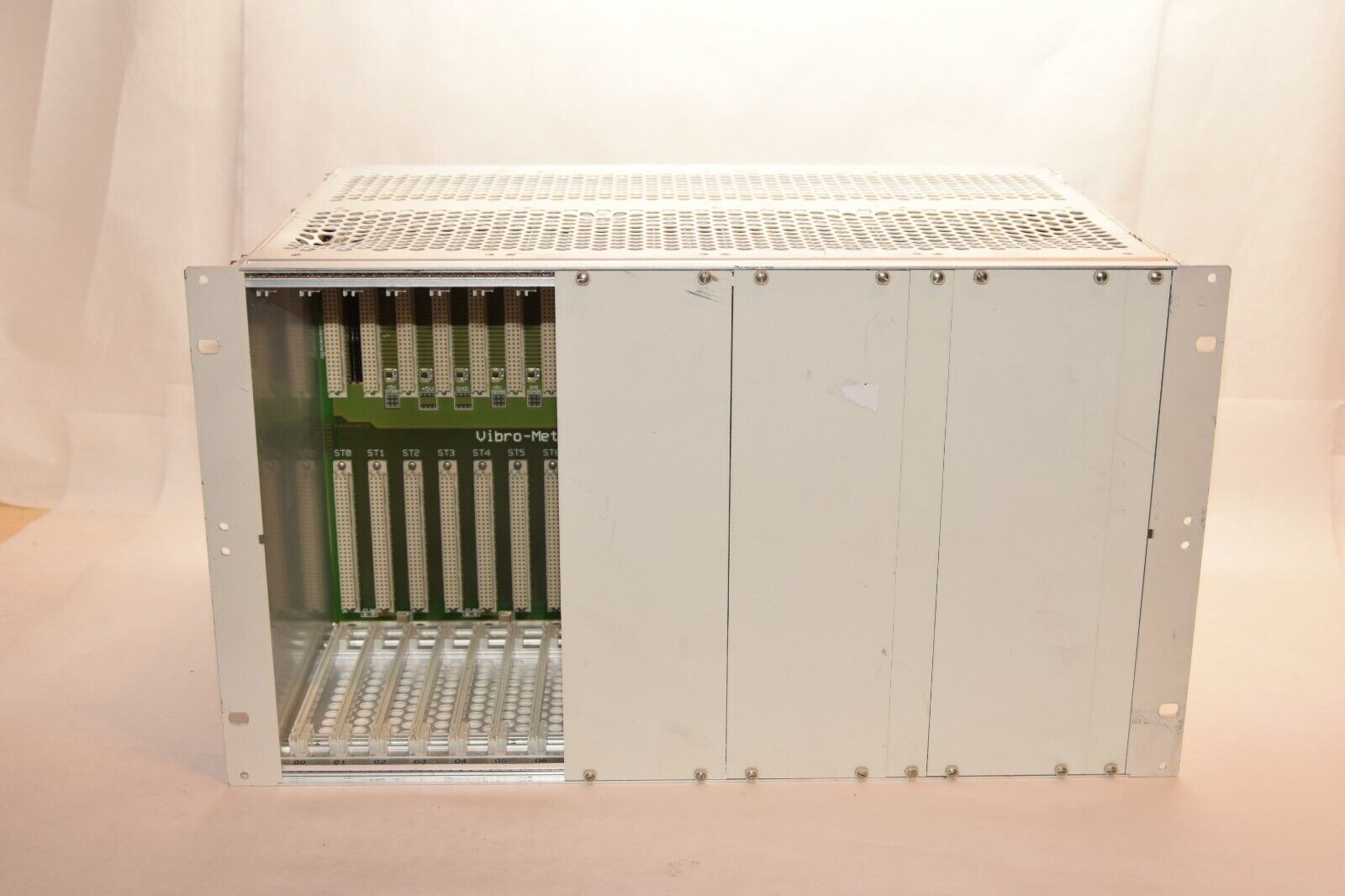

  • Mounting and Rack Compatibility: The module is typically rack-mounted in a 19-inch rack alongside other VM600 modules, fitting within a broader system infrastructure.

  • Power Supply: The module operates with a 24 VDC power supply, a standard in industrial applications for safety and efficiency.

Product Specifications:

  • Input Types:

    • Vibration Signals (typically 4-20 mA or voltage signals from vibration sensors)
    • Temperature Signals (thermocouples, RTDs)
    • Speed Signals (pulse or frequency-based from speed sensors)

  • Output Types:

    • Analog Outputs (for process control systems)
    • Digital Outputs (for alarms, protection, and control systems)

  • Signal Conditioning:

    • High-fidelity signal conditioning for various types of inputs, ensuring that even low-level signals from sensors are correctly interpreted and processed.

  • Alarm/Trip Functions:

    • User-configurable thresholds for alarms or trips based on vibration levels, temperature, speed, etc.
    • Alarm Thresholds: Can be set for individual sensors or combined parameters for machinery protection.

  • Data Communication:

    • Ethernet for network communication with DCS/PLC systems.
    • Modbus RTU/TCP for standard communication with control systems or third-party devices.

  • Response Time:

    • Real-time response for alarm or shutdown activation based on predefined limits.

  • Operating Temperature Range:

    • Typically -20°C to 60°C (ambient temperature range), suitable for industrial environments.

  • Environmental Protection:

    • The module is designed to withstand the harsh conditions of industrial environments, offering protection against dust, moisture, and vibrations.

Key Advantages:

  • Comprehensive Protection: The VM600-CSA module offers extensive protection and diagnostic capabilities, ensuring the reliability and longevity of critical rotating equipment.

  • Ease of Integration: The use of common communication protocols like Modbus and Ethernet allows for straightforward integration into existing DCS or PLC systems.

  • Scalability: The modular design of the VM600 system allows for easy system expansion as monitoring needs increase.

  • Real-Time Data: Continuous real-time monitoring ensures that machinery is always being assessed, with immediate responses to out-of-bounds conditions.

  • Data Logging and Trend Monitoring: The system logs all data, making it easy to identify long-term trends and anticipate potential failures before they happen.

  • Alarm and Shutdown Capability: Pre-programmed or user-defined alarm levels ensure immediate actions are taken if a machine begins to show signs of distress, preventing catastrophic failures.

Application Areas:

The VIBRO-METER VM600-CSA 204-040-100-211 module is typically used in industries where machinery health is critical:

  • Power Generation: For monitoring turbines, generators, and other critical equipment to ensure proper functioning and avoid downtime.
  • Oil & Gas: Used for pump, compressor, and turbine condition monitoring in upstream and downstream operations.
  • Chemical Processing: In the chemical industry, where equipment such as mixers, pumps, and reactors need constant condition monitoring to ensure safe operation.
  • Mining: For monitoring heavy machinery, such as crushers, conveyors, and mills, where failure can lead to significant downtime and safety risks.
  • Water Treatment: For protecting pumps, fans, and other machinery in water treatment facilities.
  • Industrial Manufacturing: Ensuring the safety and reliability of rotating equipment on manufacturing lines, such as motors, fans, and pumps.

Conclusion:

The VIBRO-METER VM600-CSA 204-040-100-211 DCS PLC Module is an essential component of the VM600 system, offering comprehensive condition monitoring and protective shutdown capabilities for critical rotating machinery. With features such as real-time data collection, alarm handling, signal conditioning, and integrated protection, the module is well-suited for high-risk industries like power generation, oil & gas, and chemical processing. It provides reliable and precise monitoring to prevent machinery failures, extend equipment life, and ensure safe operations. PP836A ABB PLC
