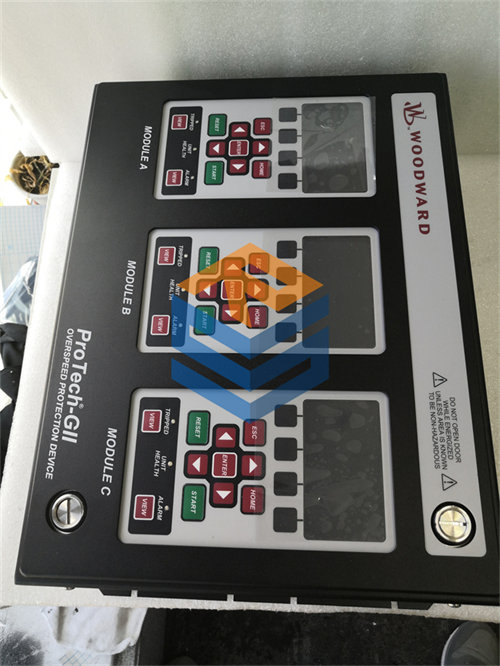

WOODWARD 8237-2495

الوصف

The WOODWARD 8237-2495 is a highly specialized and critical safety component within Woodward’s MicroNet Safety Module (MSM) series. It functions as a sophisticated Safety PLC with integrated overspeed protection, specifically designed to ensure the safe and reliable operation of steam, gas, and hydro turbines. It continuously monitors turbine speed and acceleration, initiating an emergency shutdown if unsafe conditions are detected.

This particular model, the 8237-2495, is characterized by its bulkhead mount design, its ability to accept dual High Voltage (HV/HV) power inputs for robust redundancy, and its use of voted relays for its outputs. Like other MicroNet Safety Modules, it features a triple modular redundant (TMR) architecture for its inputs, ensuring extremely high reliability and fault tolerance.

Brief Product Description

The WOODWARD 8237-2495 is a MicroNet Safety Module (MSM), acting as a sophisticated safety PLC with integrated overspeed protection. It’s engineered for critical industrial safety applications, precisely monitoring the speed and acceleration of turbine rotors. It boasts a triple modular redundant (2-out-of-3 voted) input architecture, ensuring highly reliable and precise overspeed detection. This specific model is designed for bulkhead mounting, supports dual High Voltage (HV) power inputs for enhanced redundancy, and employs voted output relays to issue safe shutdown commands to the turbine’s trip system. It also includes Modbus communication for seamless diagnostics and remote integration into plant control systems.

• Product Type: Overspeed Protection Device / Safety PLC Module (MicroNet Safety Module – MSM)
• Manufacturer: Woodward
• Model/Part Number: 8237-2495 (MicroNet Safety Module series)
• Primary Function: Turbine overspeed and overacceleration protection, safe shutdown, and integrated safety functions.
• Key Features: Triple modular redundancy (2oo3 voted inputs), digital speed control, voted relays, Modbus communication, bulkhead mount, dual High Voltage (HV) power input.

Detailed Product Description

In critical industrial processes where large rotating machinery like turbines are integral to operations, preventing an uncontrolled overspeed event is paramount for safety and operational continuity. Such events can lead to catastrophic mechanical failure, severe equipment damage, and significant safety hazards. The WOODWARD 8237-2495 MicroNet Safety Module (MSM) is engineered precisely for these high-stakes environments. It’s not merely a speed monitoring device; it’s a sophisticated, highly reliable, and fault-tolerant safety system designed to provide the ultimate layer of protection for valuable turbine assets.

In a recent consultation for a power generation facility, the existing turbine overspeed protection system was a single point of failure, posing a significant risk. The facility needed a solution that would meet the most stringent safety integrity levels and provide comprehensive diagnostics. The Woodward MicroNet Safety Module (MSM) series, specifically the 8237-2495, was selected due to its advanced features. Its bulkhead mount design allowed for efficient and robust installation directly on a wall or skid within the turbine’s local control area, simplifying wiring and reducing installation time. The dual High Voltage (HV/HV) power inputs were a critical factor, providing essential redundant power paths that ensure uninterruptible safety functions even if one power source fails. Furthermore, the use of voted relays on the output side, combined with the triple modular redundant (TMR) inputs, provided multiple layers of protection. This design guarantees that the system will reliably execute a trip when a genuine hazardous condition occurs, while virtually eliminating nuisance trips. This implementation significantly enhanced the plant’s overall safety posture and operational reliability.

Uncompromising Safety with Digital Control and Redundancy

The WOODWARD 8237-2495 is built upon the robust foundation of the MicroNet Safety Module (MSM) series’ advanced safety architecture, delivering superior protection:

• Digital Speed and Acceleration Monitoring: This module precisely monitors the turbine rotor’s speed and rate of acceleration. It typically receives signals from active or passive Magnetic Pick-Up Units (MPUs) or proximity probes. This digital approach ensures high accuracy and rapid response times, crucial for detecting and reacting promptly to hazardous conditions.
• Overspeed and Overacceleration Protection: Its core function is to detect when the turbine’s speed or its acceleration rate exceeds pre-defined safety setpoints. Upon detection, it quickly issues a trip command to the turbine’s emergency trip valve(s) or other shutdown mechanisms to prevent a runaway condition.
• Triple Modular Redundancy (TMR) for Inputs (2-out-of-3 Voting): This is a defining characteristic of the MicroNet Safety Module (MSM) series. The system employs three independent channels for speed sensing and processing. For a trip condition to be declared, at least two out of the three channels must independently confirm the overspeed or overacceleration event. This 2oo3 voting logic significantly enhances system reliability by minimizing the risk of nuisance trips due to a single sensor or module fault, while still ensuring a safe shutdown when a genuine hazardous condition exists.
• IEC61508 SIL-3 Certified: This certification signifies that the 8237-2495 meets the most rigorous international standards for functional safety. Achieving Safety Integrity Level 3 means the device has an extremely low probability of dangerous failure, making it suitable for the most critical Safety Instrumented Functions (SIF) in demanding industrial applications. It also adheres to industry standards such as API 670 and API 612.
• Voted Relays (Output): This specific model utilizes voted relays for its trip outputs. This means that for a trip command to be executed, a majority of the redundant output relays must agree (e.g., 2-out-of-3), further enhancing the reliability and preventing false trips even at the output stage.

Design and Features for Flexible Integration and Maintenance

The 8237-2495 is designed for practical industrial application and ease of maintenance:

• Bulkhead Mount Design: This variant is specifically designed for bulkhead mounting on a wall or skid, which is common in field enclosures or local equipment skids, providing a robust and secure installation directly near the turbine.
• Dual High Voltage (HV/HV) Power Inputs: The module accepts two independent High Voltage (HV) power inputs (e.g., 90–240 Vac / 100–150 Vdc). This dual HV input capability is crucial for providing redundant power paths, enhancing the system’s fault tolerance and ensuring continuous operation even if one power source fails.
• Modbus Communication: Equipped with Modbus (serial) communication, the device can seamlessly integrate with Distributed Control Systems (DCS), SCADA systems, or other plant-wide monitoring platforms. This enables remote monitoring of turbine speed, alarm statuses, detailed diagnostics, and historical event logs.
• Online Testing and Repair: A significant advantage of the MicroNet Safety Module (MSM) system is its ability to perform online testing of its functionality and speed sensors without requiring a turbine shutdown. Individual modules can often be replaced while the system remains online, significantly minimizing operational downtime during maintenance.
• Comprehensive Logging: The device stores detailed historical logs of all trips, alarms, overspeed events, and trip valve response times in non-volatile memory. This data is invaluable for post-event analysis, root cause identification, and compliance reporting.
• Environmental Robustness: Engineered for harsh industrial environments, it features robust construction and often includes conformal coating to protect against common contaminants like sulfur, H2S, and SO2 gases (rated for Class 3C2 environments and typically IP56 ingress protection when properly installed).
• Integrated Display: Each module typically includes a high-resolution color display and keypad, allowing users to locally monitor configuration settings, statuses, system inputs and outputs, and alarm, trip, and overspeed logs.

Technical Specifications

Key Applications

The WOODWARD 8237-2495 is a vital safety component employed in a wide array of high-stakes industrial applications:

• Power Generation: Providing robust primary and backup overspeed protection for gas, steam, and hydro turbines in diverse power plant configurations worldwide.
• Oil & Gas: Safeguarding gas turbines driving critical compressors in pipelines, processing plants, and offshore platforms.
• Petrochemical Industry: Protecting turbine-driven machinery vital to chemical manufacturing and refining operations.
• Marine Propulsion: Used in large marine vessels for highly reliable turbine overspeed protection systems.
• Industrial Plants: Any facility that relies on large industrial turbines where safety, continuous operation, and regulatory compliance are paramount.

The Woodward 8237-2495 MicroNet Safety Module stands as a testament to advanced safety engineering, providing an indispensable layer of protection for valuable assets and personnel in critical industrial environments.
