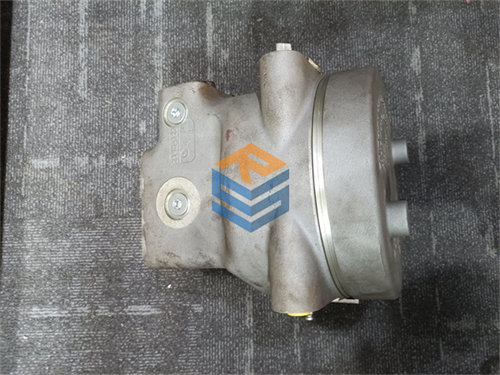

WOODWARD 9904-110
⁦WOODWARD 9904-110⁩ - الصورة ⁦2⁩

WOODWARD 9904-110

Woodward’s TGE governors are known for their robust and reliable performance in demanding industrial environments. The 9904-110 likely designates a standard configuration of the TGE13 governor that is pre-set or optimized for applications where the controlled prime mover operates at a nominal speed of 4000 RPM.

Key characteristics of the TGE13 governors generally include:

  • Speed Control: They provide precise control over the prime mover’s speed, ensuring stable operation and preventing overspeed conditions.
  • Mechanical-Hydraulic Design: These governors use a combination of mechanical (e.g., flyweights for speed sensing) and hydraulic (e.g., oil pressure for actuator movement) principles to achieve control.
  • Durability: Designed for long service life and reliable operation in harsh industrial settings.
  • Application Flexibility: While the 9904-110 is tailored for 4000 RPM, TGE governors are widely adaptable for various types of prime movers.

The “9904” series from Woodward often relates to specific governor models or configurations, and the “-110” suffix would indicate its particular specifications, in this case, a TGE13 set for 4000 RPM.

احصل على عرض أسعار
التصنيف:

الوصف

WOODWARD 9904-110: TGE13 Governor (4000 RPM)



The Woodward 9904-110 refers to a specific configuration of a TGE13 mechanical-hydraulic governor. These governors are crucial devices that control the speed of prime movers like industrial gas turbines, steam turbines, or diesel engines. They achieve this by regulating the fuel flow or steam admission to maintain a desired operating speed and power output.



Product Overview



  • Product Type: Mechanical-Hydraulic Governor
  • Manufacturer: Woodward
  • Governor Type: TGE13 (a specific model within the TG series of mechanical-hydraulic governors)
  • Rated Speed: 4000 RPM



Detailed Description



Woodward’s TGE governors are known for their robust and reliable performance in demanding industrial environments. The 9904-110 likely designates a standard configuration of the TGE13 governor that is pre-set or optimized for applications where the controlled prime mover operates at a nominal speed of 4000 RPM.

Key characteristics of the TGE13 governors generally include:

  • Speed Control: They provide precise control over the prime mover’s speed, ensuring stable operation and preventing overspeed conditions.
  • Mechanical-Hydraulic Design: These governors use a combination of mechanical (e.g., flyweights for speed sensing) and hydraulic (e.g., oil pressure for actuator movement) principles to achieve control.
  • Durability: Designed for long service life and reliable operation in harsh industrial settings.
  • Application Flexibility: While the 9904-110 is tailored for 4000 RPM, TGE governors are widely adaptable for various types of prime movers.

The “9904” series from Woodward often relates to specific governor models or configurations, and the “-110” suffix would indicate its particular specifications, in this case, a TGE13 set for 4000 RPM.



Applications



The Woodward 9904-110 (TGE13, 4000 RPM) would typically be used in applications where:

  • Industrial Gas Turbines: Controlling fuel flow to maintain precise turbine speed for power generation, compression, or pumping.
  • Steam Turbines: Regulating steam admission to control the speed of turbines in power plants or industrial processes.
  • Diesel/Gas Engines: Providing speed governing for large industrial engines driving various loads.

Its 4000 RPM rating makes it suitable for many common high-speed industrial prime movers.



Related Products/Series



The 9904-XXX series appears to cover various configurations of TGE13 and TGE17 governors based on their rated speeds:

  • 9904-110: TGE13, 4000 RPM
  • 9904-111: TGE13, 6000 RPM
  • 9904-112: TGE17, 2400 RPM
  • 9904-113: TGE17, 4000 RPM
  • 9904-114: TGE17, 6000 RPM

This shows a logical progression where different TGE models (13 or 17) are offered with specific speed ratings under this numbering scheme.
