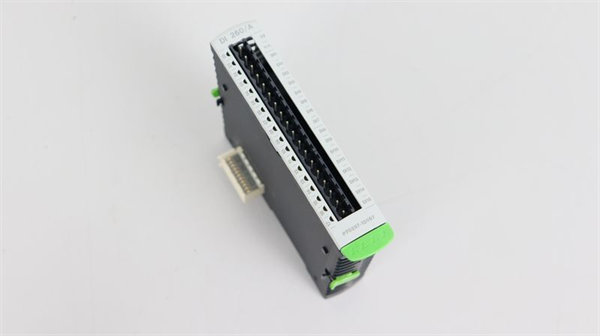

Keba D1420F F-SIC-1

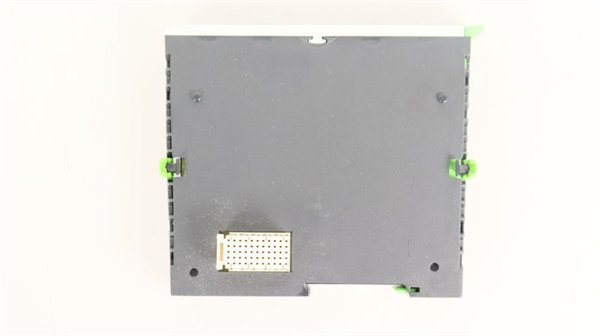

⁦Keba D1420F F-SIC-1⁩ - الصورة ⁦2⁩

Keba D1420F F-SIC-1

  • Model Name: KEBA D1420F F-SIC-1

  • Type: DCS PLC Module (with integrated safety)

  • Application: Industrial Automation, Safety-Critical Systems

  • Control Mode:

    • Discrete control (on/off), continuous control (PID), motion control, and safety control.

  • Communication:

    • Ethernet/IP, Modbus TCP, Profinet, EtherCAT, KEBA proprietary protocols.

  • Mounting:

    • Typically DIN rail mounted.

  • Dimensions:

    • Height: Approx. 150 mm
    • Width: Approx. 100 mm
    • Depth: Approx. 75 mm
    • Weight: Approx. 1.2 kg.
احصل على عرض أسعار
التصنيف:

الوصف

KEBA D1420F F-SIC-1 DCS PLC Module

Product Name:

KEBA D1420F F-SIC-1
Module Type: DCS (Distributed Control System) PLC Module
Part Number: D1420F F-SIC-1

Product Description:

The KEBA D1420F F-SIC-1 is a high-performance Distributed Control System (DCS) module designed for industrial automation and control applications. It belongs to the F-SIC (Functional Safety Integrated Control) series, which is known for integrating advanced safety functionality with reliable and precise process control. The module is ideal for use in complex control systems where safety, performance, and flexibility are crucial.

This PLC module integrates seamlessly with KEBA’s advanced DCS architecture, providing flexible communication interfaces, robust processing power, and advanced safety features that meet global standards. The F-SIC-1 module is engineered for high reliability in critical industrial applications such as automated manufacturing, process control, and robotics, where safety, real-time performance, and system flexibility are essential.

With integrated safety mechanisms and fast processing capabilities, the D1420F F-SIC-1 module ensures that automation systems operate smoothly, efficiently, and securely. It is designed to handle a broad range of industrial protocols and allows seamless integration with other KEBA devices and third-party systems.

Key Features:

  1. Integrated Safety Functions:

    • Supports Safety Integrity Level (SIL) up to SIL3 for applications that require advanced safety features.
    • Incorporates Safety PLC functionality with fail-safe operations like Safe Torque Off (STO) and Safe Stop.

  2. High Performance:

    • High processing speed for handling complex control algorithms and real-time operations.
    • Supports multi-tasking and can handle multiple control loops simultaneously.

  3. Flexible Communication:

    • Supports industrial protocols such as Ethernet/IP, Modbus TCP, Profinet, EtherCAT, and KEBA proprietary protocols for seamless integration with other systems.

  4. Compact and Robust:

    • Compact design for easy integration into tight spaces.
    • Robust construction to operate in harsh industrial environments with high resistance to shock, vibration, and temperature fluctuations.

  5. Modular Design:

    • Modular system architecture allowing easy expansion and customization to meet specific needs.
    • Supports a range of digital and analog inputs/outputs for diverse industrial applications.

  6. Real-Time Performance:

    • Ensures real-time control with low latency, critical for applications like motion control, robotics, and process automation.

  7. User-Friendly Interface:

    • Intuitive programming and configuration tools for easy setup and troubleshooting.

  8. Advanced Diagnostic Capabilities:

    • Built-in diagnostics to identify system faults, potential failures, and operational inefficiencies, ensuring high system uptime and reliability.

Product Parameters & Specifications:

General Specifications:

  • Model Name: KEBA D1420F F-SIC-1

  • Type: DCS PLC Module (with integrated safety)

  • Application: Industrial Automation, Safety-Critical Systems

  • Control Mode:

    • Discrete control (on/off), continuous control (PID), motion control, and safety control.

  • Communication:

    • Ethernet/IP, Modbus TCP, Profinet, EtherCAT, KEBA proprietary protocols.

  • Mounting:

    • Typically DIN rail mounted.

  • Dimensions:

    • Height: Approx. 150 mm
    • Width: Approx. 100 mm
    • Depth: Approx. 75 mm
    • Weight: Approx. 1.2 kg.

Electrical Specifications:

  • Power Supply:

    • Typically 24V DC power supply for operation.

  • Input Voltage:

    • 24V DC, with tolerance typically ranging from 18V DC to 30V DC.

  • Power Consumption:

    • Typical power consumption: Approximately 10W (depends on load).

Processing Performance:

  • CPU:

    • 32-bit or 64-bit processor for efficient real-time control and quick processing of control tasks.

  • Memory:

    • RAM: Typically 2 GB for storing control programs, data, and diagnostics.
    • Flash Storage: Typically 4 GB or more for program and configuration storage.

  • I/O Capability:

    • Configurable digital and analog I/O options (inputs/outputs can be expanded).
    • Up to 64 I/O points depending on the specific configuration and expansion modules.

Safety Features:

  • Safety Integrity Level:

    • SIL3 certification for use in safety-critical applications.

  • Integrated Safety Functions:

    • Includes Safe Torque Off (STO), Safe Stop and Safe Operational Stop (SOS) features to meet ISO 13849 and IEC 61508 safety standards.

  • Fail-Safe Operation:

    • Automatic safe operation during faults or critical failures to ensure system integrity.

  • Emergency Shutdown:

    • Emergency stop capability with integrated safety logic.

Environmental Specifications:

  • Operating Temperature:

    • 0°C to 55°C (wide temperature range for industrial environments).

  • Storage Temperature:

    • -20°C to 70°C (for safe storage).

  • Relative Humidity:

    • 5% to 95% (non-condensing).

  • Vibration Resistance:

    • Complies with IEC 60068-2-6 vibration standards for industrial environments.

  • Shock Resistance:

    • Compliant with IEC 60068-2-27 shock resistance.

  • Protection Class:

    • Typically IP20 (suitable for indoor use in industrial environments).

Applications:

  1. Process Control Systems:

    • Used in chemical plants, pharmaceuticals, and food and beverage industries for high-precision process automation and control.

  2. Robotic Systems:

    • Provides control and safety for industrial robots in manufacturing, assembly, and handling applications.

  3. Machine Tool Control:

    • Ideal for CNC machines, providing precise control of cutting and machining operations while maintaining safety.

  4. Automated Manufacturing Lines:

    • Used to control production lines, ensuring optimal throughput while maintaining safety during production processes.

  5. Energy and Power Distribution:

    • Ideal for energy management systems, especially in situations where system failure could lead to significant consequences.

Comparison with Competitors:

The KEBA D1420F F-SIC-1 PLC module stands out in the market due to its advanced integrated safety features, which are critical for safety-related applications. While other standard DCS or PLC modules may offer good performance, few integrate SIL3-level safety into the control logic as efficiently as the F-SIC-1 module. Additionally, KEBA’s compatibility with a range of communication protocols (e.g., EtherCAT, Ethernet/IP) makes it highly adaptable for a wide variety of industries.

Compared to other brands, the KEBA D1420F offers higher flexibility in terms of safety functions, system diagnostics, and ease of integration, making it a top choice for applications requiring both real-time performance and compliance with safety regulations.

Feel free to reach out if you need more detailed configuration information or if you’re looking for specific recommendations!
