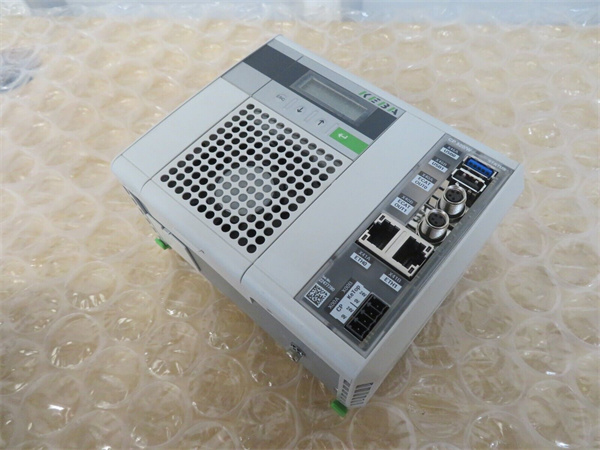

KEBA K-TFT-AN-CCFT CPU Control Board

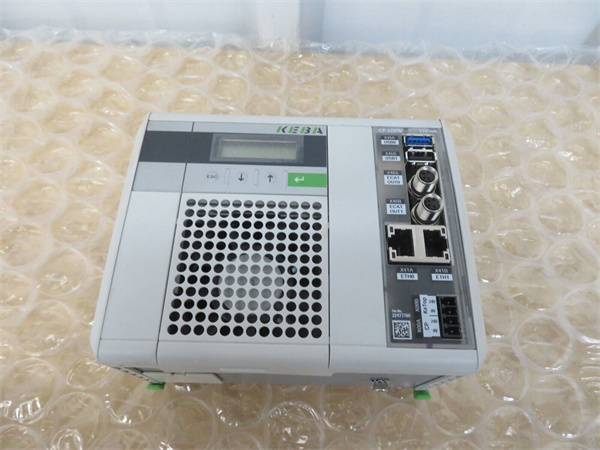

⁦KEBA K-TFT-AN-CCFT CPU Control Board⁩ - الصورة ⁦2⁩

KEBA K-TFT-AN-CCFT CPU Control Board

  • Model: KEBA K-TFT-AN-CCFT CPU Control Board.
  • Module Type: CPU control board with integrated TFT display and CCFT backlighting for industrial applications.
  • System Integration: Designed for use in KEBA DCS and PLC systems.

CPU and Processing Features:

  • Processor:

    • ARM-based processor (or equivalent high-performance industrial CPU).
    • High-speed processing with support for real-time control applications.
    • Supports multi-tasking and advanced control algorithms for complex industrial systems.

  • Clock Speed:

    • Typically 400 MHz to 1 GHz, depending on specific configuration.

  • Memory:

    • RAM: Typically 512 MB to 2 GB for fast data processing.
    • Flash Storage: Typically 4 GB to 16 GB (depends on configuration).

  • I/O Interfaces:

    • Digital I/O: Multiple digital inputs and outputs for control signals.
    • Analog I/O: Support for analog signals (input/output) for more precise control (optional).
    • Serial Ports: RS-232, RS-485, or Modbus RTU for communication with other field devices.
احصل على عرض أسعار
التصنيف:

الوصف

Product Name:

KEBA K-TFT-AN-CCFT CPU Control Board DCS/PLC Module

Product Description:

The KEBA K-TFT-AN-CCFT is a CPU Control Board designed for integration into the KEBA Distributed Control Systems (DCS) and Programmable Logic Controller (PLC) platforms. This module serves as the central processing unit (CPU) in control systems, enabling the coordination and processing of data from sensors, actuators, and other field devices. It integrates a TFT (Thin-Film Transistor) display for visual feedback, diagnostics, and real-time monitoring, along with CCFT (Cold Cathode Fluorescent Tube) backlighting to ensure high-quality, long-lasting visual outputs.

The K-TFT-AN-CCFT module is specifically designed for use in industrial automation, robotics, machine control, and other high-performance environments. It provides high processing power, user-friendly interaction with human-machine interfaces (HMIs), and seamless integration into KEBA’s DCS/PLC systems, offering enhanced flexibility, performance, and scalability in industrial applications.

This board is designed for environments that demand real-time processing and robust control, making it an essential part of advanced industrial control systems, such as automated production lines, robotics systems, and machine automation systems.

Product Parameters & Specifications:

General Specifications:

  • Model: KEBA K-TFT-AN-CCFT CPU Control Board.
  • Module Type: CPU control board with integrated TFT display and CCFT backlighting for industrial applications.
  • System Integration: Designed for use in KEBA DCS and PLC systems.

CPU and Processing Features:

  • Processor:

    • ARM-based processor (or equivalent high-performance industrial CPU).
    • High-speed processing with support for real-time control applications.
    • Supports multi-tasking and advanced control algorithms for complex industrial systems.

  • Clock Speed:

    • Typically 400 MHz to 1 GHz, depending on specific configuration.

  • Memory:

    • RAM: Typically 512 MB to 2 GB for fast data processing.
    • Flash Storage: Typically 4 GB to 16 GB (depends on configuration).

  • I/O Interfaces:

    • Digital I/O: Multiple digital inputs and outputs for control signals.
    • Analog I/O: Support for analog signals (input/output) for more precise control (optional).
    • Serial Ports: RS-232, RS-485, or Modbus RTU for communication with other field devices.

Display and Human-Machine Interface (HMI):

  • Display Type:
    • TFT (Thin-Film Transistor) screen, known for high resolution and fast refresh rates, ideal for industrial visualization and diagnostics.
  • Display Size:
    • Typically in the range of 5.7” to 15”, depending on the configuration of the module.
  • Display Resolution:
    • Typically 800×480 to 1920×1080 pixels (depends on screen size).
  • Backlighting:
    • CCFT (Cold Cathode Fluorescent Tube) backlighting for bright, energy-efficient, and long-lasting display.
    • Extended operating lifetime compared to traditional backlighting methods (up to 50,000 hours).

Communication Interfaces:

  • Ethernet:

    • Ethernet ports (10/100/1000 Mbps) for remote monitoring and data transfer between different system components.

  • CAN Bus:

    • For communication with other industrial devices and subsystems in automated control environments.

  • Fieldbus Support:

    • PROFIBUS, EtherCAT, Modbus TCP/IP, and CANopen options available for field communication (depending on model and configuration).

  • USB Ports:

    • Typically, USB 2.0/3.0 ports for data transfer and device integration.

Power Supply and Consumption:

  • Supply Voltage:

    • 24V DC (industry standard for automation systems).

  • Power Consumption:

    • Typically between 15W and 40W, depending on display size, processing load, and configuration.

  • Power Protection:

    • Includes overvoltage, overcurrent, and reverse polarity protection to prevent damage from power surges or incorrect wiring.

Environmental Specifications:

  • Operating Temperature:

    • 0°C to 50°C (depending on the specific model and environment).

  • Storage Temperature:

    • -20°C to 70°C.

  • Humidity:

    • 5% to 95% RH, non-condensing.

  • Vibration Resistance:

    • Meets IEC 60068 standards for industrial-grade equipment, ensuring reliability in vibration-prone environments.

Physical Specifications:

  • Dimensions:
    • Typically 160 mm x 180 mm for the base CPU module (without additional display).
  • Weight:
    • Approx. 1.5 to 3 kg depending on screen size and configuration.
  • Mounting:
    • DIN Rail Mountable or Panel Mounting (depending on system design).

Certifications and Compliance:

  • CE Mark: Compliant with European safety and environmental standards.
  • UL Certification: Suitable for use in the North American market.
  • RoHS Compliant: No use of hazardous materials, ensuring environmentally safe operation.
  • ISO 9001: Compliance with quality management system standards.

Key Features:

  1. Real-Time Processing:

    • Powerful processing capabilities enable real-time control of complex industrial systems and processes.

  2. High-Quality HMI Integration:

    • The integrated TFT display with CCFT backlighting ensures superior visibility and reliability in harsh industrial environments.

  3. Advanced Communication:

    • A wide range of communication options including Ethernet, CAN bus, and Fieldbus protocols like Modbus and EtherCAT ensure easy integration into complex control networks.

  4. Flexible I/O Support:

    • Multiple digital, analog, and serial communication interfaces provide extensive connectivity for various industrial sensors and actuators.

  5. Fanless Design:

    • Enhanced reliability and reduced maintenance needs due to the fanless design, ensuring quiet operation even in noisy factory environments.

  6. Modular and Scalable:

    • Modular design allows users to tailor the system to their specific application, adding additional control modules as needed for scaling.

  7. Rugged and Reliable:

    • Designed to withstand the rigors of industrial environments with certifications like IP20 for protection against solid objects and IEC 60068 compliance for vibration resistance.

Applications:

  1. Industrial Automation:

    • Ideal for machine control, robotic systems, and automated production lines where high-performance processing and user interaction are required.

  2. Process Control:

    • Used in chemical plants, oil & gas refineries, and energy generation systems, where real-time feedback and process control are essential.

  3. Machine and Robotics Control:

    • Integration into robotic arms, AGVs (Automated Guided Vehicles), and pick-and-place machines for precise control and monitoring.

  4. HMI and Visualization:

    • A key component for applications requiring advanced human-machine interface capabilities for supervisory control and diagnostic monitoring.

  5. Automated Warehousing Systems:

    • Used in automated storage and retrieval systems (ASRS), ensuring fast and reliable communication and control for material handling.

This KEBA K-TFT-AN-CCFT CPU Control Board offers the high processing power and flexibility needed for today’s industrial automation challenges, making it an essential component for any KEBA DCS/PLC system. Whether you’re dealing with complex control systems, HMI integration, or high-performance robotics, this module is designed to meet the needs of modern, automated industries.
