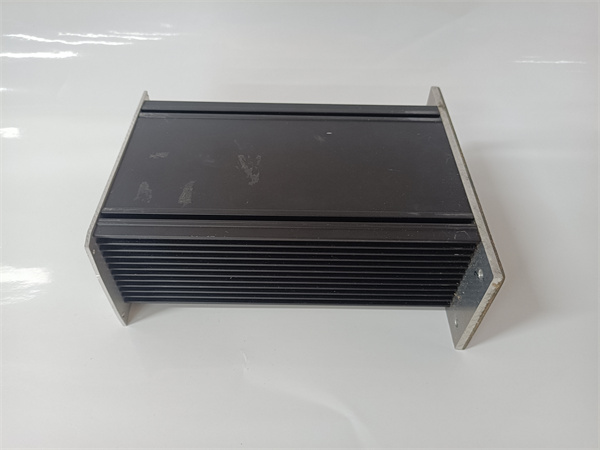

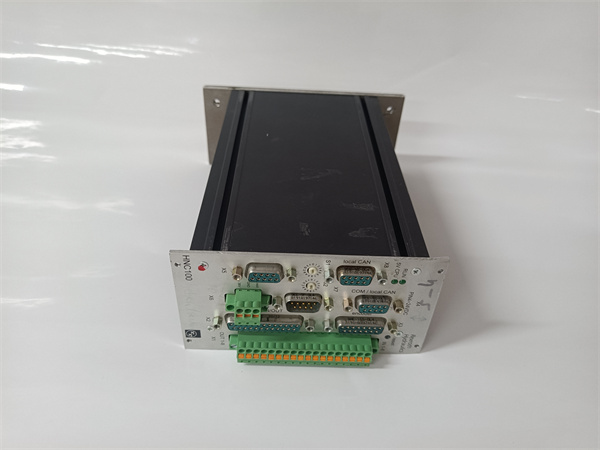

REXROTH+VT-HNC100-4-3X/P-I-00/G04 R901134617

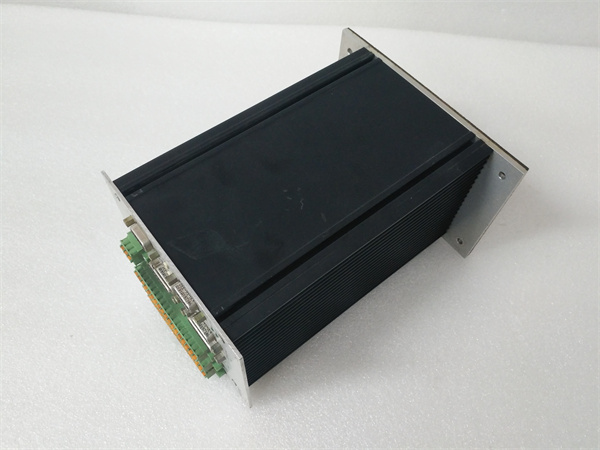

⁦REXROTH+VT-HNC100-4-3X/P-I-00/G04 R901134617⁩ - الصورة ⁦2⁩

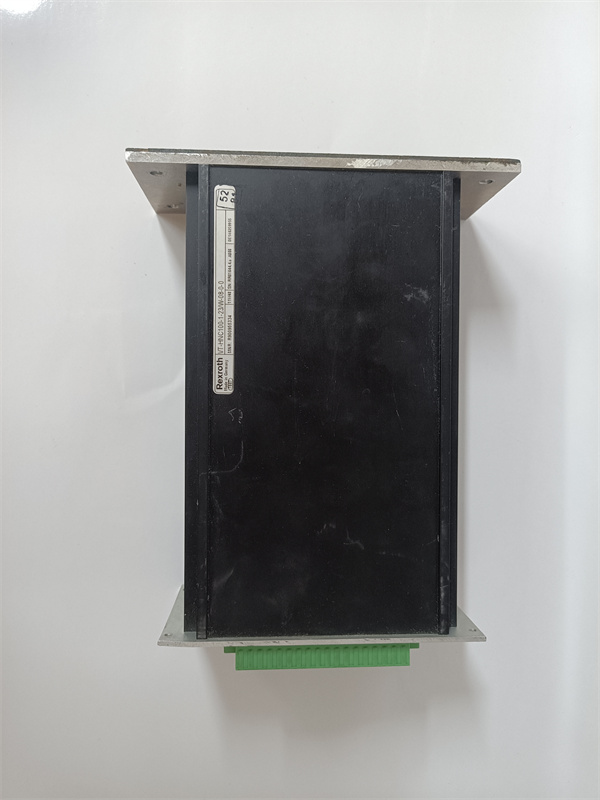

⁦REXROTH+VT-HNC100-4-3X/P-I-00/G04 R901134617⁩ - الصورة ⁦3⁩

REXROTH+VT-HNC100-4-3X/P-I-00/G04 R901134617

  • Model: REXROTH VT-HNC100-4-3X/P-I-00/G04 (IndraControl)
  • Type: DCS PLC Module (part of the IndraControl series)
  • Power Supply: 24V DC (Nominal)
  • Operating Voltage Range: 18-30V DC
  • Rated Current: Typically 2.5A
  • Communication Protocols:
    • EtherCAT
    • PROFINET
    • CANopen (optional)
    • SERCOS (optional)
  • Bus System:
    • Ethernet-based system, compatible with EtherCAT and PROFINET for communication with field devices, sensors, and actuators.
  • Input/Output (I/O):
    • Digital Inputs: 16 (24V DC)
    • Digital Outputs: 16 (24V DC)
    • Analog Inputs: 4 (0-10V or 4-20mA)
    • Analog Outputs: 4 (0-10V or 4-20mA)
    • Configurable I/O points to meet specific application needs.
احصل على عرض أسعار
التصنيف:

الوصف

REXROTH VT-HNC100-4-3X/P-I-00/G04 DCS PLC Module

Product Name:
REXROTH VT-HNC100-4-3X/P-I-00/G04

Product Description:
The REXROTH VT-HNC100-4-3X/P-I-00/G04 is a highly efficient and versatile DCS PLC module from Bosch Rexroth, designed to deliver high-performance control in industrial automation applications. This module is a key component in the Rexroth IndraControl series, offering exceptional precision, flexibility, and scalability for various automation tasks. It is tailored to optimize the performance of machines and complex systems in manufacturing, automotive, and process industries.

The VT-HNC100 series is particularly suitable for real-time control, with support for a wide range of I/O devices, sensors, and actuators. Its robust communication protocols, including EtherCAT and PROFINET, enable seamless integration into diverse industrial networks, improving efficiency and productivity in operations.

This module is ideal for systems requiring high-speed and high-precision control, such as robotic automation, CNC machinery, and motion control applications.

Product Parameters & Specifications:

  • Model: REXROTH VT-HNC100-4-3X/P-I-00/G04 (IndraControl)
  • Type: DCS PLC Module (part of the IndraControl series)
  • Power Supply: 24V DC (Nominal)
  • Operating Voltage Range: 18-30V DC
  • Rated Current: Typically 2.5A
  • Communication Protocols:
    • EtherCAT
    • PROFINET
    • CANopen (optional)
    • SERCOS (optional)
  • Bus System:
    • Ethernet-based system, compatible with EtherCAT and PROFINET for communication with field devices, sensors, and actuators.
  • Input/Output (I/O):
    • Digital Inputs: 16 (24V DC)
    • Digital Outputs: 16 (24V DC)
    • Analog Inputs: 4 (0-10V or 4-20mA)
    • Analog Outputs: 4 (0-10V or 4-20mA)
    • Configurable I/O points to meet specific application needs.
  • Processing Speed: High-performance processing capabilities designed for real-time operations, ensuring minimal latency in control systems.
  • Memory:
    • Program Memory: 512 MB (Typically)
    • Data Memory: 256 MB (Typically)
  • Operating Temperature Range:
    • Operating: 0°C to 55°C (32°F to 131°F)
    • Storage: -20°C to 70°C (-4°F to 158°F)
  • Mounting Type: Standard DIN rail mounting
  • Dimensions: 138 mm x 120 mm x 65 mm (W x H x D)
  • Weight: Approx. 1.2 kg (depending on configuration)
  • Environmental Protection: IP20-rated housing, suitable for indoor industrial environments.
  • Safety Standards:
    • Complies with global safety standards such as CE, UL, and CSA certifications.
    • Conforms to IEC 61131-2 (for programmable controllers) and ISO 13849 (for safety).

Advantages & Features:

  1. Real-time Control:
    The REXROTH VT-HNC100-4-3X/P-I-00/G04 ensures precise real-time processing for high-speed applications. Its high-speed control capability is ideal for motion control, robotics, and CNC machines.

  2. Flexible I/O Configuration:
    The module supports a wide range of digital and analog I/O configurations, allowing for easy adaptation to different industrial automation setups.

  3. Communication Versatility:
    Built-in support for EtherCAT and PROFINET allows for easy integration into existing automation systems, improving communication speed and reliability across complex networks.

  4. Compact & Robust Design:
    Its modular design and robust construction make it easy to install and integrate into compact control panels, ensuring durability even in harsh industrial environments.

  5. High Precision & Scalability:
    The system’s high processing power, memory, and scalability make it a great choice for both small-scale and large-scale automation systems.

  6. Energy-Efficient:
    The VT-HNC100 series is designed to offer efficient energy use, reducing operating costs while maintaining optimal performance.

  7. Safety and Compliance:
    Meets international safety and quality standards, ensuring reliable and safe operation in various industrial applications.

Application Cases & Industries:

The REXROTH VT-HNC100-4-3X/P-I-00/G04 DCS PLC module is perfect for use in the following applications:

  • Robotics: Automating robotic arms, assembly lines, and other industrial robots for increased precision and performance.
  • CNC Machines: Control and automation in CNC machines and milling machines, ensuring high precision and real-time adjustments.
  • Motion Control: Used in systems that require precise control over actuators, motors, and drives, such as conveyors or positioners.
  • Manufacturing: Ideal for controlling processes in manufacturing lines, such as packaging, sorting, and material handling.
  • Automated Assembly: Used in industries requiring automated assembly lines with high-speed, reliable control systems.
  • Automotive Industry: For controlling automated systems in automotive manufacturing, including assembly, testing, and inspection systems.

Comparison with Competing Products:

When compared to other DCS PLC modules, such as the Siemens S7-1200 or Schneider Electric Modicon M340, the REXROTH VT-HNC100-4-3X/P-I-00/G04 excels in high-performance, real-time control for applications requiring precision and speed, such as robotics and motion control. While the Siemens and Schneider Electric systems are more generalized PLCs with flexibility across a wide range of industrial automation systems, the Rexroth VT-HNC100 is specifically engineered for high-speed, precision-demanding applications in robotics and CNC.

Selection Suggestions & Precautions:

  1. System Integration:
    Ensure compatibility with existing network protocols, especially if using EtherCAT or PROFINET systems. Verify if additional modules are required to meet specific application needs.

  2. Real-time Requirements:
    If your application requires real-time data processing, such as motion control or robotics, the VT-HNC100 is a great choice due to its optimized real-time capabilities.

  3. Environmental Conditions:
    Ensure that the temperature and environmental conditions in your application are within the operating limits (0°C to 55°C) to ensure long-term reliability.

  4. I/O Flexibility:
    The module offers both digital and analog I/O; however, verify that the specific configuration meets your needs for sensors, actuators, or other field devices.

For further information, technical specifications, and support, please contact Bosch Rexroth or your local distributor. This module is part of a comprehensive range of automation solutions designed to maximize performance and efficiency across a wide variety of industrial applications. 330130-080-00-00 Bently
