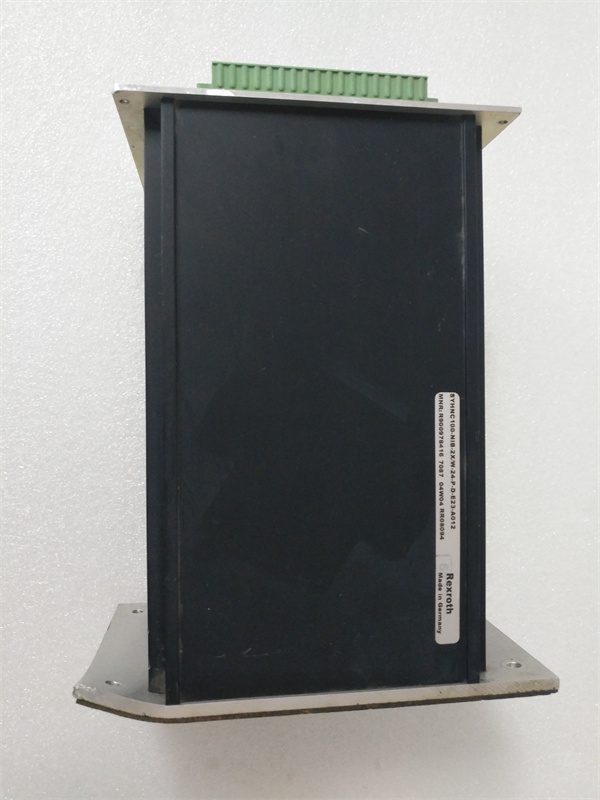

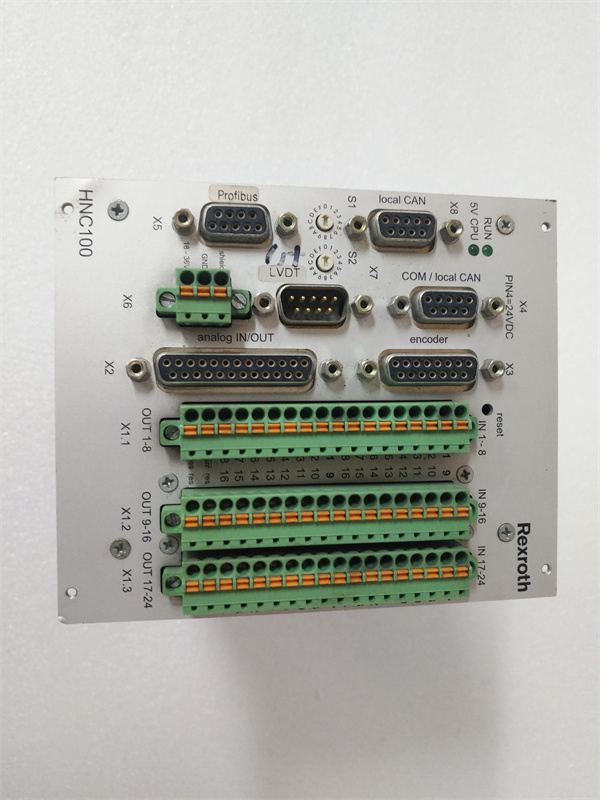

REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416
⁦REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416⁩ - الصورة ⁦2⁩
⁦REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416⁩ - الصورة ⁦3⁩

REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416

Product Parameters & Specifications:

General Parameters:

  • Model: REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012
  • Product Code: R900978416
  • Type: DCS PLC Module
  • Series: REXRTOH (Part of industrial automation systems)
  • Application: Process control, automation, monitoring, and data acquisition in critical industries.
  • Category: Distributed Control System (DCS)
احصل على عرض أسعار
التصنيف:

الوصف

REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416 DCS PLC Module

Product Name:

REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416 DCS PLC Module

This DCS PLC module is part of a high-performance distributed control system (DCS) that offers powerful and flexible automation and control solutions for industrial processes. The REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 module, referenced with part number R900978416, is primarily used for managing complex systems, ensuring continuous and reliable operation in demanding industrial environments.

Product Description:

The REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416 is an advanced Distributed Control System (DCS) PLC module designed for automation and process control applications. It is typically used in industrial settings where continuous monitoring, processing, and control of system processes are crucial. This module integrates seamlessly with the overall control network, enabling high-level decision-making capabilities, remote access, and real-time adjustments.

This module is designed for flexible system integration, offering robust control for multiple field devices. Its adaptability makes it suitable for industries such as energy generation, chemical processing, manufacturing, and water treatment, among others. The module supports redundancy and fault tolerance, ensuring high availability and reliability in mission-critical environments.

Product Parameters & Specifications:

General Parameters:

  • Model: REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012
  • Product Code: R900978416
  • Type: DCS PLC Module
  • Series: REXRTOH (Part of industrial automation systems)
  • Application: Process control, automation, monitoring, and data acquisition in critical industries.
  • Category: Distributed Control System (DCS)

Performance & Processing:

  • Processing Speed: Real-time processing for complex automation and control tasks.
  • Control Functionality: Supports advanced process control (APC) and closed-loop feedback control.
  • Data Logging: Built-in data logging for performance tracking, fault analysis, and reporting.
  • Redundancy Support: Designed for redundant system configurations to ensure continuous operation during faults.

Input/Output Characteristics:

  • Digital Inputs: Multiple digital inputs for on/off device control, sensors, and switches.
  • Digital Outputs: Controls actuators, relays, and other devices.
  • Analog Inputs: Supports 4-20 mA or 0-10 V analog input signals for precise sensor control.
  • Analog Outputs: Analog output signals to manage proportional control systems such as valves, motors, and pumps.
  • Bus Communication: Uses serial communication (RS232, RS485) or industrial buses like Ethernet/IP, Profibus, and Modbus for reliable data exchange.

Power & Voltage Specifications:

  • Nominal Input Voltage: 24 VDC (standard for most industrial PLC modules)
  • Operating Voltage Range: Typically 18-30 VDC
  • Power Consumption: Varies depending on configuration and load, generally between 15-30W
  • Power Supply Requirements: Requires 24V DC power from a dedicated supply or system.

Communication Interfaces:

  • Ethernet Ports: Dual Ethernet Ports for high-speed communication with other control systems.
  • Protocol Support: Supports Modbus TCP/IP, Profibus, Ethernet/IP, and other industrial communication protocols.
  • Serial Communication: RS232 and RS485 ports for backward compatibility and integration with legacy systems.

Physical Characteristics:

  • Form Factor: Compact module suitable for rack-mounting in a control cabinet or panel.
  • Dimensions: Dimensions may vary slightly based on configuration and installation but typically around 6-10 inches in height and 3-5 inches in width.
  • Weight: Approximately 1.5-2 kg (depending on installation).
  • Mounting: Designed for standard 19-inch rack mounting or panel integration.

Environmental Parameters:

  • Operating Temperature Range: -20°C to +60°C (suitable for industrial environments).
  • Storage Temperature Range: -40°C to +85°C
  • Humidity: 5% to 95% non-condensing relative humidity.
  • Vibration and Shock: Built to comply with industrial shock and vibration standards (IEC 60068).
  • IP Rating: Typically IP20 for installation in dry, indoor environments; additional protection may be needed for outdoor use.

Safety and Protection Features:

  • Overvoltage Protection: Protects the module from voltage surges and spikes.
  • Overcurrent Protection: Prevents damage from excessive current.
  • Isolation: Input/output circuits are isolated for better reliability and protection from electrical noise.
  • Short-Circuit Protection: Ensures the module’s circuits are protected against short circuits.
  • Fault-Tolerant Design: Supports redundant systems to minimize downtime in case of failures.

Certifications & Standards:

  • CE Marking: Meets European Union (EU) safety standards.
  • UL Listed: Certified for safety in industrial applications.
  • RoHS Compliant: Free from harmful substances like lead, cadmium, and mercury.
  • IEC Compliance: Meets IEC 61010-1 safety standards for electrical equipment.

Key Features & Advantages:

  1. Real-Time Control and Monitoring: Designed for mission-critical applications where continuous process control and monitoring are essential.

  2. Flexible Connectivity: Supports a variety of industrial communication protocols such as Modbus, Ethernet/IP, and Profibus, ensuring compatibility with a wide range of industrial systems.

  3. Redundancy and High Availability: Built-in redundancy support helps ensure that the system remains operational even in the event of a failure in one module or communication path.

  4. Scalable and Modular: The modular design allows for easy expansion and adaptation to different system sizes and complexities.

  5. Rugged Design for Harsh Environments: The module is designed to withstand harsh industrial environments, with protection against high temperatures, humidity, and vibration.

  6. Data Logging and Diagnostics: The integrated data logging system allows for troubleshooting and performance tracking over time, providing insights into system efficiency and areas of potential improvement.

Applications:

  • Power Generation Plants: Used for controlling turbines, generators, and auxiliary equipment to ensure reliable operation in energy production.
  • Petrochemical & Chemical Processing: Manages complex chemical reactions and fluid dynamics in chemical production and refining processes.
  • Water Treatment Systems: Controls and monitors pumps, valves, and filtration systems in municipal water treatment facilities.
  • Manufacturing Automation: Ideal for controlling production lines, robotic arms, and assembly machines in industrial settings.
  • HVAC & Building Management Systems: Used for controlling temperature, humidity, and ventilation systems in large buildings and industrial complexes.

Comparison with Competitors:

  • Siemens S7-400: Compared to Siemens S7-400, the REXRTOH+SYHNC100-NIB offers more advanced redundancy options and flexible integration with various industrial protocols, which makes it more adaptable in mixed-vendor environments.

  • Rockwell Automation ControlLogix: The REXRTOH+SYHNC100-NIB is a more modular solution compared to Rockwell’s ControlLogix, which can be advantageous in highly dynamic and scalable systems where modularity is required.

Conclusion:

The REXRTOH+SYHNC100-NIB-23/W-24-P-D-E23-A012 R900978416 DCS PLC Module is a powerful and flexible solution for industrial automation and control. With its ability to support redundant configurations, real-time data logging, and various communication protocols, it is ideal for industries requiring high reliability, precision, and scalability. Whether you are working in energy, chemical processing, or manufacturing, this module provides the advanced capabilities needed for modern industrial environments. EMERSON VE4009
