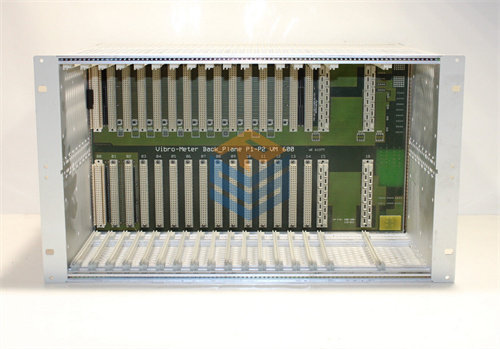

The Vibro-meter VM600-ABE040 (specifically part number 204-040-100-011) is a fundamental component of the VM600 series machinery protection and condition monitoring system. It is the system rack or chassis that houses and interconnects the various VM600 modules.

VIBRO-METER VM600 ABE040: The Foundation for Machinery Monitoring Systems

The VM600 ABE040 serves as the robust and reliable housing for all VM600 series electronic modules, providing the necessary electrical interconnections and mechanical support for the system to operate. It is designed for permanent installation in industrial environments, typically within 19-inch cabinets or panels.

Primary Function and Role:

The primary function of the ABE040 rack is to act as the backbone of the VM600 system. It provides:

  • Physical Mounting: Space for up to 15 single-width VM600 series cards (or a combination of single and multiple-width units). This modular design allows for flexible system configuration based on the number and type of monitoring points required.
  • Electrical Interconnection: A built-in VME backplane that ensures the electrical communication and power distribution between all installed modules, including power supply units (RPS6U), signal processing cards (MPC4, CMC16), acquisition cards, CPU cards (CPUM), input/output cards (IOC4T, IOC8T, IOC16T), and relay cards (RLC16).
  • Power Distribution: It integrates with the RPS6U power supply units that provide the necessary regulated DC power (+5 VDC, ±12 VDC) to all electronic cards.
  • Robust Housing: A robust aluminum construction suitable for use in harsh industrial environments.

Key Features and Specifications (General for ABE040/ABE042):

  • Form Factor: 19-inch rack mountable.
  • Height: 6U (Rack Units).
  • Construction: Robust aluminum chassis.
  • Module Capacity: Provides mounting space for up to 15 single-width VM600 series cards (or equivalent combinations of double-width cards).
  • Backplane: Features a built-in VME backplane for inter-card communication, along with dedicated buses for raw signals, tachometer signals, and open-collector relay signals.
  • Power Supply Slots: Designed to accommodate up to two RPS6U rack power supply units, allowing for redundant power supply configurations for enhanced system reliability.
  • Mounting: Suitable for permanent installation in 19-inch industrial cubicles or panels. The ABE040 and ABE042 are very similar, differing primarily in the position of their mounting brackets.
  • Environmental Ratings:
    • Operating Temperature: Typically -25°C to +65°C (-13°F to +149°F).
    • Humidity: 0 to 90% non-condensing.
    • Vibration: 10 to 55 Hz, 0.35 mm peak, 6 hours in each direction.
    • Shock: 15 g peak, 11 ms, half-sine pulse.
  • Rear Access: The rear of the rack provides access to the Input/Output Cards (IOCs), which feature screw terminal strips or connectors for sensor connections and signal inputs/outputs to external control systems.

What does the part number 204-040-100-011 signify?

The part number 204-040-100-011 denotes a specific configuration or revision of the ABE040 rack. While the general specifications for all ABE040 racks are largely consistent, the last digits in Vibro-Meter (now Parker Meggitt) part numbers typically indicate:

  • Minor Hardware Revisions: Updates to internal components or manufacturing processes.
  • Specific Certifications: For example, compliance with certain regional safety standards or hazardous area classifications.
  • Default Configurations: Pre-configured settings or minor variations in how the rack is supplied from the factory (e.g., grounding options, specific backplane characteristics).
  • Firmware Compatibility: Ensuring compatibility with certain generations of processing cards or CPUMs.

For the exact differences attributed to this specific part number, a detailed product catalog, an official datasheet for that specific SKU, or direct consultation with Parker Meggitt or an authorized distributor would be necessary. However, it will fundamentally share all the core functionalities of the standard VM600 ABE040 rack.

Integration within the VM600 System:

The ABE040 rack is the physical housing for a complete VM600 system. It holds:

  • Power Supply Units (RPS6U): Which plug directly into the backplane to power all modules.
  • Processing Card Pairs: Modules like MPC4+IOC4T, CMC16+IOC16T, XMV16+XIO16T, AMC8+IOC8T. The front card (e.g., MPC4) slides into the front card cage, and its companion I/O card (e.g., IOC4T) slides into the rear card cage directly behind it, connecting via an internal interface.
  • Rack Controller (CPUM): This module typically occupies a dedicated slot and manages the overall rack, providing communication to external software (like VibroSight®) and control systems.
  • Relay Cards (RLC16, IRC4): If additional relay outputs are needed, these modules are installed in the rear card cage.

Typical Applications:

The VM600 ABE040 rack is used in any application where a centralized machinery protection and/or condition monitoring system using the Vibro-Meter VM600 modules is required. This includes, but is not limited to:

  • Power Generation Plants: Monitoring and protecting gas, steam, and hydro turbines, generators, and large balance-of-plant equipment.
  • Oil & Gas Facilities: Refineries, pipelines, offshore platforms, and LNG terminals for critical turbomachinery (compressors, pumps).
  • Chemical and Petrochemical Plants: For continuous monitoring of rotating equipment in hazardous and demanding environments.
  • Heavy Industrial Manufacturing: Such as steel mills, cement plants, and paper mills, for large motors, gearboxes, and other production machinery.

Product Status:

The Vibro-meter VM600 ABE040 rack is a mature product. While newer versions of the VM600 system, such as the VM600Mk2 racks, are available for new installations, the original ABE040 is still widely installed and supported by Parker Meggitt for existing systems. This includes the availability of spare parts, repair services, and technical support to ensure the continued operation of vital machinery monitoring systems globally.
